Symbiote ErgoStat Pro PMP Series Installation Instructions

ErgoStat® Pro
COMPUTER ACCESSORIES

Modesty Panel

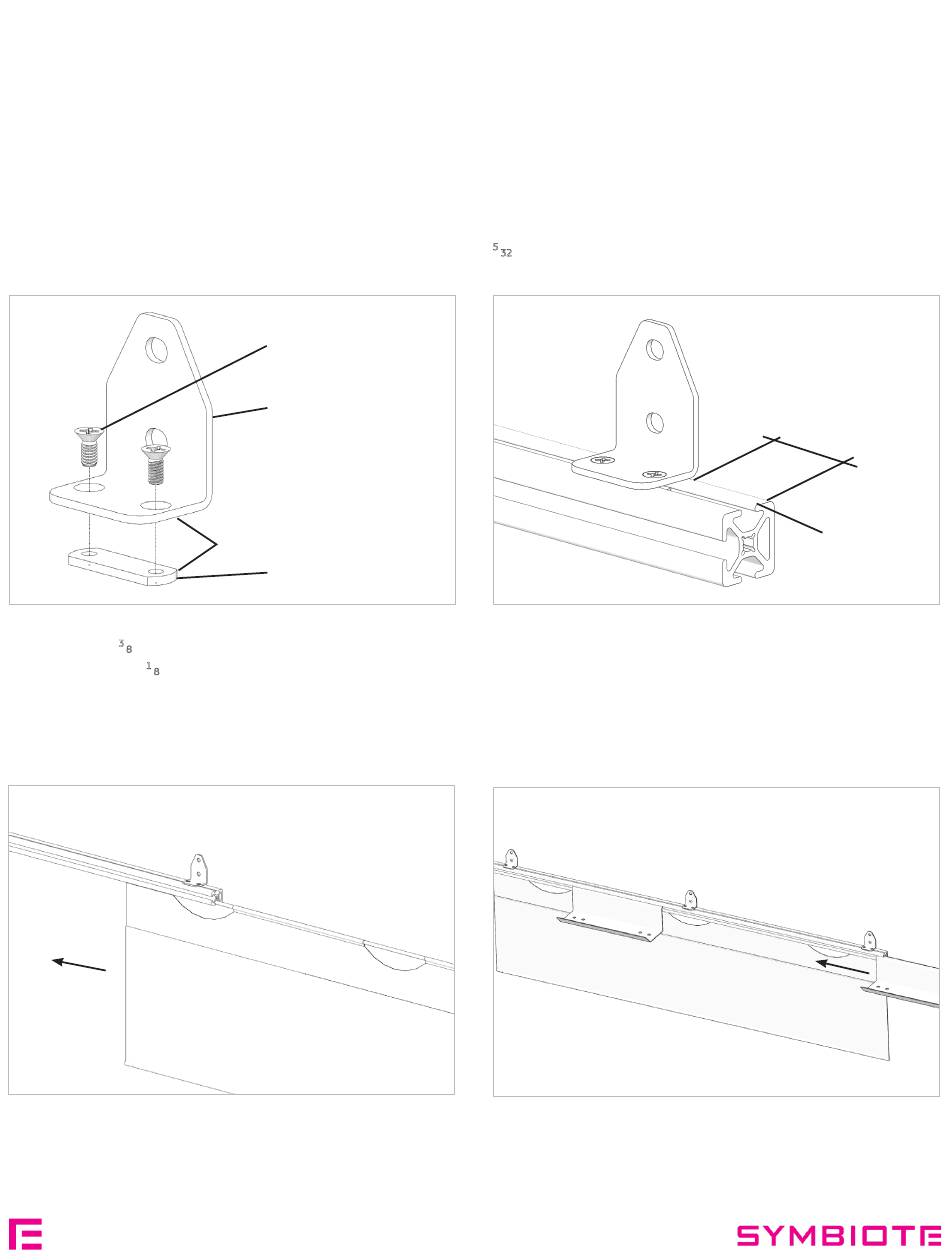

1. Preassemble a nut plate to each rail bracket using
(2) #8-32x ⁄ " Phillips flat head screws. Leave ap-
3
8
proximately a ⁄ " gap between the bottom of the
1
8
bracket and top of nut plate. Modesty Panels that are
48" wide or less will require two bracket sets. Three
bracket sets are required for panels wider than 48".
3. Slide the modesty panel into the bottom slot of the
rail.
Installation Instructions: p/n 16032926-01 rev A
Page 1 of 2
#8-32x3/8" screw
(12012703-03)
rail bracket
(17032101-01)
Gap = 1/8"
Nut Plate
(13072406-01)

PRODUCT NUMBERS

PMPxx

HARDWARE PACK

PMP2HP or PMP3HP (p/n 17091403-02 or -03)

REQUIRED TOOLS

#2 Phillips Screwdriver
Tape Measure
⁄ " Hex Wrench
5
32
2. Slide the bracket sets into the top of the rail. For
panels larger than 48", center one bracket set over
the width of the rail and tighten with a #2 Phillips
screwdriver. Position the remaining bracket sets
1.56" from each end of the rail and tighten securely.
4. Slide the cable trays in the rail slot, centering tray
between pass-thru notches in modesty panel.
1.56"
rail top
