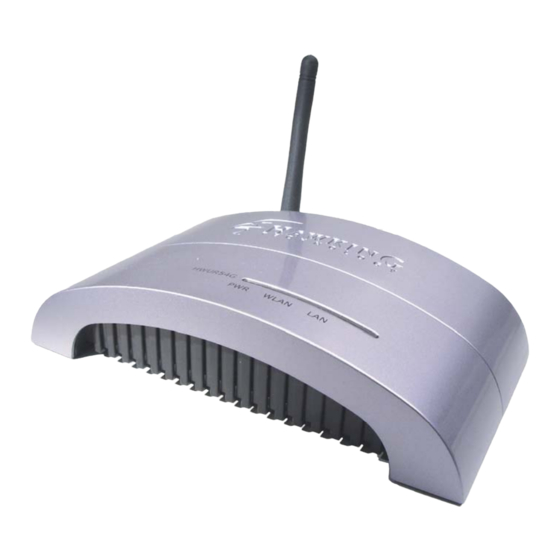

Hawking HWUR54G Quick Installation Manual

Wireless-g range extender
Hide thumbs Also See for HWUR54G:

Advertisement

Quick Links

Download this manual See also: User Manual
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the HWUR54G and is the answer not in the manual?

Questions and answers

Related Manuals for Hawking HWUR54G

Summary of Contents for Hawking HWUR54G

  • Page 4: Insert The Setup Cd

    POWER ON: After you have correctly connected your Range Extender to an available Ethernet port on your Network, please power on the Extender and a PC that is also on the netweork.. INSERT THE SETUP CD: Find the Setup-CD in your package and insert it into your CD-Rom drive of the PC you wish to configure the Extender from..
  • Page 5 SCAN FOR DEVICE: Once the Setup Wizard has loaded you will need to select your device from a list of HWUR54G devices in your network. If nothing appears in the box, double check all your connections and click on “Refresh.” Once the Wizard has detected your device click “Next”...

  • Page 6: Set Ip Address

    SET IP ADDRESS: To successfully communicate to the HWUR54G, an IP Address must be assigned to the unit. If you are on a network with a router that distributes IP Address automatically (DHCP) you have the option to automatically configure the IP Address. However the Extender must be connected to your network and not directly to the PC for this to work.
  • Page 7 STATUS: This screen displays the results of your settings. Please save this information somewhere secure for future use. You will need to enter the IP address in your web-browser for future configurations. Click NEXT to continue.
  • Page 8 Before you use the Web Based Configuration Panel you must enter the default login information. User Name: admin Password: 1234 You can change the login information in the ADMIN menu of the Configuration Panel.
  • Page 9 Please view the setup diagram in this section to get a general idea of how your wireless network setup should look like with the Hawking Range Extender. (This section will go over the basics of what is needed to get started.
  • Page 10 1) After you have completely configured your Range Extender you can disconnect the Ethernet cable that connects the Extender to your network or PC for configuration. 2) Take the Range Extender and Power Adapter and place the Extender in a location half way between your original Access Point and the area that you are extending your wireless coverage to.
  • Page 11 Gateway: 192.168.0.1 Once these values match you should be able to pull up the Web Menu. 2) I Can’t Connect to the Wireless Repeater or the Internet Make sure that all your settings are correct on the Range Extender. Remember that the Original SSID must match the SSID of your original network.
  • Page 12 Ethernet: A networking standard using cables (Category 5) to create a network. Network Adapter: Also known as a NIC (Network Interface Card). Used to provide PC’s or laptops with an Ethernet port or wireless access to the network. Broadband Modem: A device that allows broadband connection to the internet. Broadband connections include speeds faster than 56k (dial up modem speed).
