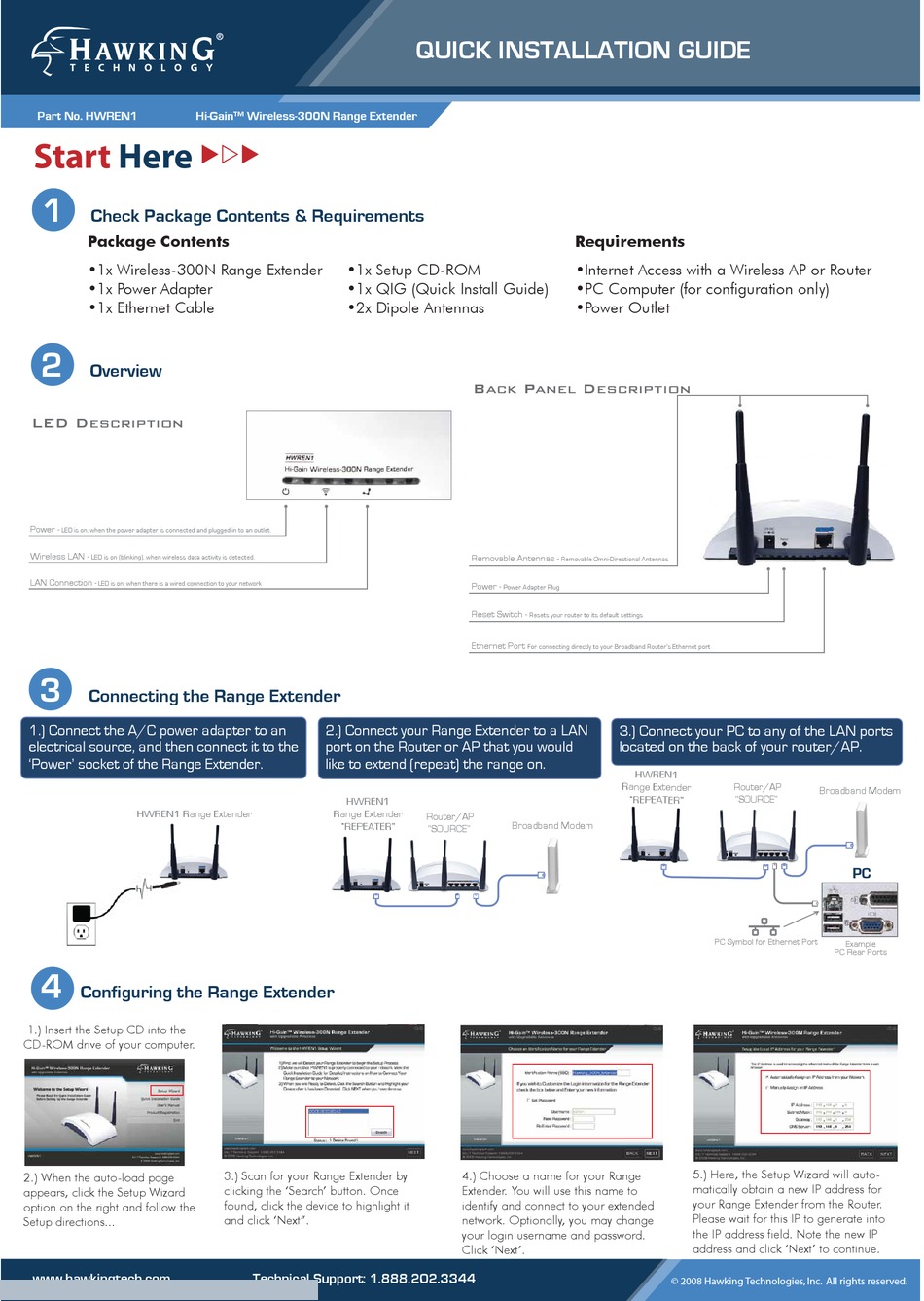

Hawking HWREN1 Quick Installation Manual

Part No. HWREN1 Hi-Gain
Start Here
1
Check Package Contents & Requirements

Package Contents

•1x Wireless-300N Range Extender
•1x Power Adapter
•1x Ethernet Cable
2
Overview

LED Description

Power -
LED is on, when the power adapter is connected and plugged in to an outlet.
Wireless LAN -
LED is on (blinking), when wireless data activity is detected.
LAN Connection -
LED is on, when there is a wired connection to your network
3
Connecting the Range Extender
1.) Connect the A/C power adapter to an
electrical source, and then connect it to the
'Power' socket of the Range Extender.
HWREN1 Range Extender
4
Configuring the Range Extender
1.) Insert the Setup CD into the
CD-ROM drive of your computer.
2.) When the auto-load page
appears, click the Setup Wizard
option on the right and follow the
Setup directions...
www.hawkingtech.com
TM Wireless-300N Range Extender

•1x Setup CD-ROM
•1x QIG (Quick Install Guide)
•2x Dipole Antennas
2.) Connect your Range Extender to a LAN
port on the Router or AP that you would
like to extend (repeat) the range on.
HWREN1
Range Extender
"REPEATER"
3.) Scan for your Range Extender by
clicking the 'Search' button. Once
found, click the device to highlight it
and click 'Next".
Technical Support: 1.888.202.3344
QUICK INSTALLATION GUIDE
Requirements
•Internet Access with a Wireless AP or Router
•PC Computer (for configuration only)
•Power Outlet

Back Panel Description

Removable Antennas -
Removable Omni-Directional Antennas
Power -
Power Adapter Plug
Reset Switch -
Resets your router to its default settings
Ethernet Port -
For connecting directly to your Broadband Router's Ethernet port
Router/AP
Broadband Modem
"SOURCE"
4.) Choose a name for your Range
Extender. You will use this name to
identify and connect to your extended
network. Optionally, you may change
your login username and password.
Click 'Next'.
3.) Connect your PC to any of the LAN ports
located on the back of your router/AP.
Router/AP
"SOURCE"
PC Symbol for Ethernet Port
5.) Here, the Setup Wizard will auto-
matically obtain a new IP address for
your Range Extender from the Router.
Please wait for this IP to generate into
the IP address field. Note the new IP
address and click 'Next' to continue.
© 2008 Hawking Technologies, Inc. All rights reserved.
Broadband Modem
PC
Example
PC Rear Ports
