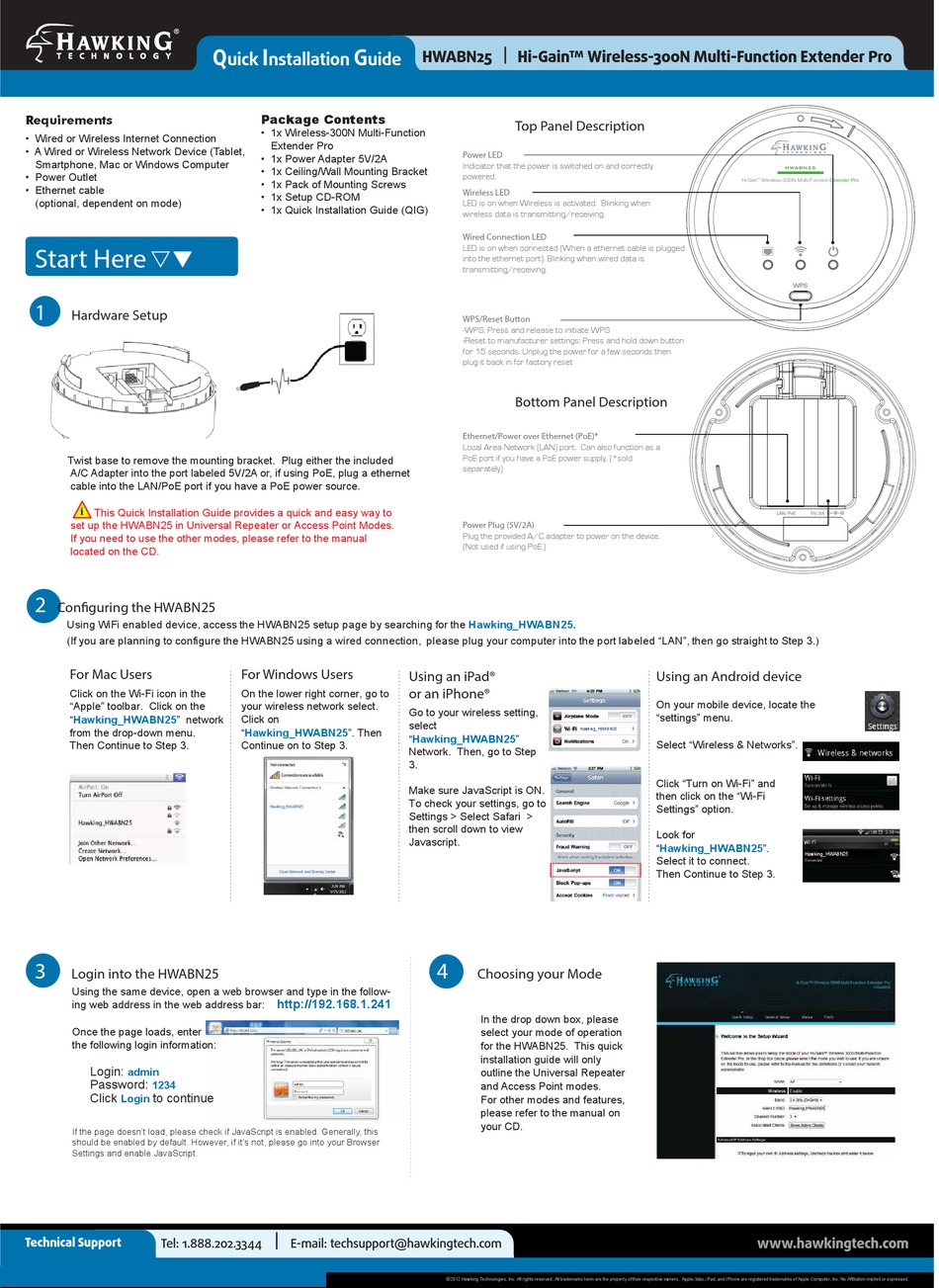

Hawking Hi-Gain HWABN25 Quick Installation Manual

Requirements

• Wired or Wireless Internet Connection
• A Wired or Wireless Network Device (Tablet,
Smartphone, Mac or Windows Computer
• Power Outlet
• Ethernet cable
(optional, dependent on mode)

Start Here


1
Hardware Setup
Twist base to remove the mounting bracket. Plug either the included
A/C Adapter into the port labeled 5V/2A or, if using PoE, plug a ethernet
cable into the LAN/PoE port if you have a PoE power source.
i
This Quick Installation Guide provides a quick and easy way to
set up the HWABN25 in Universal Repeater or Access Point Modes.
If you need to use the other modes, please refer to the manual
located on the CD.
2
Con guring the HWABN25
Using WiFi enabled device, access the HWABN25 setup page by searching for the
(If you are planning to configure the HWABN25 using a wired connection, please plug your computer into the port labeled "LAN", then go straight to Step 3.)
For Mac Users
Click on the Wi-Fi icon in the
"Apple" toolbar. Click on the
"Hawking_HWABN25" network
from the drop-down menu.
Then Continue to Step 3.
3
Login into the HWABN25
Using the same device, open a web browser and type in the follow-
ing web address in the web address bar:
Once the page loads, enter
the following login information:
Login:
admin
Password:
1234
Click to continue
Login
If the page doesn't load, please check if JavaScript is enabled. Generally, this
should be enabled by default. However, if it's not, please go into your Browser
Settings and enable JavaScript.
Technical Support
Tel: 1.888.202.3344
HWABN25- QIG 2012.08.29
Q I G
uick nstallation uide

Package Contents

• 1x Wireless-300N Multi-Function
Extender Pro
• 1x Power Adapter 5V/2A
• 1x Ceiling/Wall Mounting Bracket
• 1x Pack of Mounting Screws
• 1x Setup CD-ROM
• 1x Quick Installation Guide (QIG)
For Windows Users
On the lower right corner, go to
your wireless network select.
Click on
"Hawking_HWABN25". Then
Continue on to Step 3.
http://192.168.1.241

E-mail: techsupport@hawkingtech.com

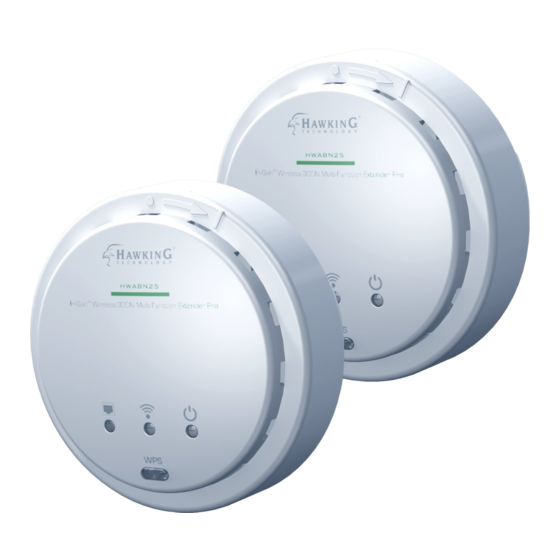

HWABN25  Hi-Gain™ Wireless-300N Multi-Function Extender Pro

Top Panel Description

Power LED
Indicator that the power is switched on and correctly
powered.
Wireless LED
LED is on when Wireless is activated. Blinking when
wireless data is transmitting/receiving.
Wired Connection LED
LED is on when connected (When a ethernet cable is plugged
into the ethernet port). Blinking when wired data is
transmitting/receiving.

WPS/Reset Button

-WPS: Press and release to initiate WPS
-Reset to manufacturer settings: Press and hold down button
for 15 seconds. Unplug the power for a few seconds then
plug it back in for factory reset

Bottom Panel Description

Ethernet/Power over Ethernet (PoE)*
Local Area Network (LAN) port. Can also function as a
PoE port if you have a PoE power supply. (*sold
separately)

Power Plug (5V/2A)

Plug the provided A/C adapter to power on the device.
(Not used if using PoE.)
Hawking_HWABN25.
Using an iPad®
or an iPhone®
Go to your wireless setting,
select
Hawking_HWABN25
"Hawking_HWABN25"
Network. Then, go to Step
3.
Make sure JavaScript is ON.
To check your settings, go to
Settings > Select Safari >
then scroll down to view
Javascript.
4
Choosing your Mode
In the drop down box, please
select your mode of operation
for the HWABN25. This quick
installation guide will only
outline the Universal Repeater
and Access Point modes.
For other modes and features,
please refer to the manual on
your CD.
© 2012 Hawking Technologies, Inc. All rights reserved. All trademarks herin are the property of their respective owners. Apple, Mac, iPad, and iPhone are registered trademarks of Apple Computer, Inc. No Affiliation implied or expressed.
Using an Android device
On your mobile device, locate the
"settings" menu.
Select "Wireless & Networks".
Click "Turn on Wi-Fi" and
then click on the "Wi-Fi
Settings" option.
Look for
"Hawking_HWABN25".
Hawking_HWABN25
Select it to connect.
Then Continue to Step 3.
www.hawkingtech.com
