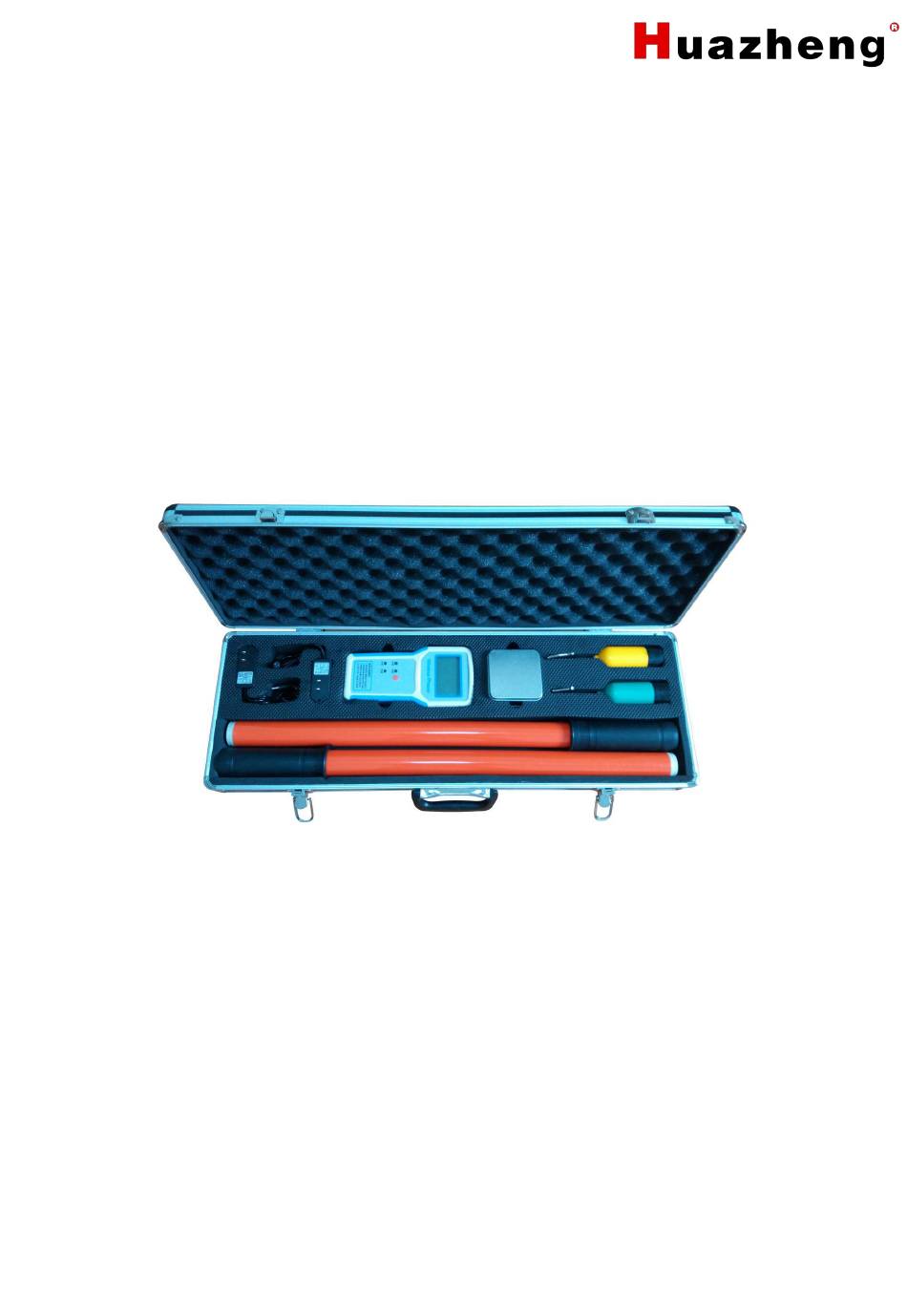

- Page 1 HZ-8600 Phasing Unit Huazheng Electric Manufacturing (Baoding) Co., Ltd...
- Page 2 Warning The instrument design, manufacturing and testing met the IEC61010 safety standards (electronic measuring product safety requirements), the manual includes ensure safety use of equipment and ensure instrument safety state, the user must abide by the warning and safety regulations.Please read the following instructions before use. Warning ●...
-
Page 3: Table Of Contents
Contents I.Products Introduction........................1 II.Working Principle.......................... 1 III.Security Matters........................... 1 IV.Technical Characteristic......................1 V. Introduction Of Instrument......................2 VI. The Nuclear Phase Operation....................5 VII.The Test Results Analysis......................7 VII.Instruments To Check....................... 8 IX.Maintenance..........................9 X.After-sales Service........................9 XI.Appendix A........................... 9 XII.Packing List..........................10... -
Page 4: I.products Introduction
I.Products Introduction HZ-8600 Phasing Unit,for MV overhead distribution circuit,used for detection of high-voltage power grid closing point on both sides of the phase sequence is the same. Two power line connection before must check phase sequence, or line may be short circuit. -
Page 5: Introduction Of Instrument
8. Two emitter and receiver use rechargeable lithium battery. 9. Have high pressure test report and the function of the phase sequence. 10. High pressure when measuring the leakage current < 10 uA. 11. Transmitter power consumption < 0.1 W, receiving host work power consumption < 0.3 W. - Page 6 Lamp: (a) “Different” light: two line phase sequence is different. (b) “Same” light: two line phase sequence is same. (c) “Charging” light: Battery is charging. (d) “Full” light: Battery is fully charged. Key: (1) long pressing to switch on up or shut down.
- Page 7 The instrument examination method: Method 1: using the configuration of the emitter mains special test line reference figure (1) connection, 220 v mains plug. If the emitter buzzer, two light is flashing, receiving host shows the frequency of the corresponding information, the transmitter and the host are normal.
-
Page 8: The Nuclear Phase Operation
VI. The Nuclear Phase Operation (1) High-pressure nuclear Will be hooked up to two live line, X, Y launcher, watch the receiving host measurements (according to the national grid, nuclear grade A standard). More than 30 degrees are heterogeneous, "heterogeneous" indicator, voice prompt "phase-out please note" at the same time;... - Page 9 Supplement: 1) if the test voltage is 220 v / 380 v, please use the special test of grid lines (internal resistance test line, the straight wire) connected to the transmitter, measure again; 2)1 kv ~ 10 kv line, if the external insulation layer thicker and transmitters can start.
-
Page 10: Vii.the Test Results Analysis
Use the special test line of mains Use the special test line of 380V/220V connection launcher (as shown in mains figure 1), the host boot. Use switchgear induction electric test Switchgear line connection transmitter (see Use switchgear induction induction switchgear induction electric electric test line. -
Page 11: Vii.instruments To Check
VIIl.Instruments To Check Check the Normal Abnormal Check the method Exception handling project phenomenon phenomenon Check pressure Leakage current Leakage current Insulating performance Replace the is less than 10 is greater than 10 rod pressure reference appendix insulation rod The transmitter Buzzer rang 2 switch, connect a Unscrew the cap,... -
Page 12: Ix.maintenance
wireless emitter accept the frequency of frequency of the maintenance. communicati electric work corresponding to normally. corresponding zero. normal information. IX.Maintenance 1. When not in use for a long time, please full of electric after storage. 2. This product should not be stored in damp, high temperature, dusty environment. 3. -
Page 13: Xii.packing List
Table 1 insulating rod mechanical and electrical characteristics Project Unit Indicators Martin heat resistance >200 ℃ Shock (longitudinal ) MPa/cm >147 Bending degrees (vertical) >343 Surface resistivity Ω >10x10 Volume resistivity Ω/cm >10x10 Table 2 insulating rod pressure test parameters Power frequency withstand voltage Voltage... - Page 14 Charger Description: Tip terminal replacement transmitter head hook. When it is suitable for field operation more than hook, please replace the hook with it after the operation.
