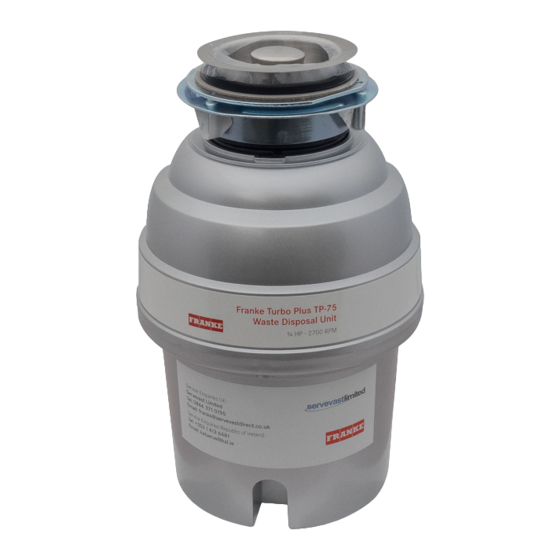

FOOD WASTE DISPOSER
FRANKE TURBO PLUS OWNERS GUIDE
Important
- Read all instructions thoroughly

ImPORTANT SAFETy INSTRuCTIONS

Instructions pertaining to risk of fire, electric shock or injury to persons.
Save these instructions.
WARNING
- When using electrical appliances, basic precautions should always be
followed, including the following:
1.
Read all instructions before using the appliance.
2.
To reduce the risk of injury, close supervision is necessary
when an appliance is used near children.
3.
Do not put fingers or hands into a waste disposer while it
is functioning.
4.
Turn the power switch to the off position before attempting
to clear a jam or remove an object from the disposer.
5.
When attempting to loosen a jam in a waste disposer,
use a long wooden utensil e.g. spoon.
6.
When attempting to remove objects from a disposer, use
long-handled tongs or pliers.
7.
To reduce the risk of injury please note:
- this disposer is not for grinding hard materials, such as
glass and metal;
- this disposer must be connected to the electric supply by
means of either a power supply cord or insulated wires in a
flexible conduit;
- when installing the disposer, care must be taken to ensure
that the reset button of the overload protection device
remains readily accessible.
www.franke.co.uk
8.
Additionally for continuous feed models:
- Care must be taken to ensure that the supply is
disconnected by switching off the electric supply or by
removing the plug from the socket-outlet before freeing a
jammed rotor.
- When not operating the disposer, leave the stopper in place
to reduce the risk of objects falling into the disposer.
- Do not operate disposer unless splash guard is in place.
9.
For proper electrical earth instructions see the
ELECTRICAL CONNECTION details of this manual.
10.
All installations should be carried out by a qualified electrician.
11.
The symbol
on the product or on its packaging indicates
that this product may not be treated as household waste.
Instead, it shall be handed over to the applicable environmental
collection point for the recycling of electrical and electronic
equipment. For more detailed information about recycling of
this product, please contact your local authority, your
household waste disposal service or the shop where you
purchased the product.
Please retain for future reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TURBO PLUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Franke TURBO PLUS

  • Page 1 FOOD WASTE DISPOSER FRANKE TURBO PLUS OWNERS GUIDE Important - Read all instructions thoroughly ImPORTANT SAFETy INSTRuCTIONS Instructions pertaining to risk of fire, electric shock or injury to persons. Save these instructions. WARNING - When using electrical appliances, basic precautions should always be followed, including the following: Read all instructions before using the appliance.
  • Page 2 Operation of disposer is now controlled in a typical manner If the disposer is OFF, depress air switch actuator to by the wall mounted switch. turn the disposer ON. FRANkE TuRBO PLuS mODELS TP-50 TP-75 TP-125 TP-125B...
  • Page 3 2a. INSTALLATION OF 3-BOLT mOuNTING ASSEmBLy For TP-50, TP-75 and TP-125 models. Read completely before starting NB - Pay close attention to the order of mount assembly parts, as they have been correctly assembled by the factory. (See A and B.) SINK FLANGE Disassemble the mounting assembly, as it has been shipped, by turning the sink flange until the projections align with the...
  • Page 4 2b. INSTALLATION OF EZ mOuNT ASSEmBLy For TP-125B models. Read completely before starting Raise the mount ring towards the top of the sink flange. Remove cushion mount. Remove mount ring. You may want to practice installing the cushion mount at this point before you are under the sink See the ‘IMPORTANT NOTICE: Cushion Mount Detail’...
  • Page 5 3. ELECTRICAL CONNECTIONS DANGER - IMPROPER CONNECTION OF THE EqUIPMENT GROUNDING CONDUCTOR CAN RESUlT IN A RISK OF ElECTRIC SHOCK. CHECK WITH A qUAlIFIED ElECTRICIAN OR SERVICEMAN IF YOU ARE IN DOUBT AS TO WHETHER THE APPlIANCE IS PROPERlY GROUNDED. DO NOT MODIFY THE PlUG PROVIDED WITH THE APPlIANCE IF IT WIll NOT FIT THE OUTlET. HAVE A PROPER OUTlET INSTAllED BY A qUAlIFIED ElECTRICIAN.
  • Page 6 5a. 3 BOLT mOuNT ASSEmBLy For TP-50, TP-75 and TP-125 models. ImPORTANT PLEASE READ - DO NOT REMOVE ClAMP FROM CUSHION RING OR CUSHION RING FROM HOPPER. BOTH PARTS ARE FACTORY INSTAllED AND INSTAllATION READY Press firmly around the cushion ring to ensure it is engaged of the cushion ring around the RIDGE at the bottom of the with the neck of the disposer.
  • Page 7 6A. CONTINuOuS FEED OPERATING INSTRuCTIONS The Anti-Jam Swivel Impellers make a clicking sound as considerable grinding time and are more easily thrown away they swing into place. This indicates normal operation. with other trash. Do not be alarmed that the disposer slows down while grinding.
  • Page 8 *Splash guard is not used with Batch Feed or 3-Bolt Mount units. Franke UK limited Service & Spares West Park, MIOC uk mainland &...
