Clevertest and Clevertest Plus
Refer to the supplementary operation guide supplied with the Product.
After Power ON, the Status LED on a Clevertest Plus enabled fitting will display a rapid Green or Red
flashing for a period up to 2 minutes.
Zoneworks, HIVE and DATA Monitored Options
Fittings with part numbers
-ZW, -HV, -DATA
These fittings are monitored using either Powerline Carrier Technology that utilize the power cable to
provide data communication, RF transceiver modules operating in the ISM band or a dedicated data cable
to/from data routers installed on a dedicated data trunk connected to a central Server (can also be
connected via Ethernet/Internet/Fibre). Zoneworks software on the server is used to monitor, coordinate
testing and collate test data from each fitting. Zoneworks Fittings can be commissioned by a single push
of the test switch or by scanning the supplied barcode. The LED Test Switch indicator provides a
multifunction indication of the status of the fitting during testing and normal operation:
Option
State
ZW, HV, DATA
Commissioned
ZW, DATA
Un-commissioned
Un-commissioned
HV
With network connectivity
Un-commissioned
HV
Without network connectivity
ZW, DATA
Emergency Light Test In Progress
HV
Emergency Light Test In Progress
In the case of the DATA version a 2-way "figure 8" cable and terminal block facilitates the connection to
the DATA network via a multi-drop bus (daisy chain connection). For further information of installation of
a Zoneworks system, please refer to the Zoneworks Users Guide and Commissioning Guide (incl. DATA
version)
DALI EM Option
Luminaires with part numbers having
-DALI
rd
and integration to 3
Party Lighting Control Systems. Before installing the -DALI luminaire, please confirm
that the Lighting Control System has the capability to monitor DALI Emergency Luminaires. The -DALI
fitting will be addressed and configured into the control system by the Lighting Control System
Commissioning Technicians and not Clevertronics.
State
LED Operation
Commissioned/ Un-commissioned
LED on Solid (Green)
Emergency Light Test in progress
LED flashes at 1s On (Yellow) & 1s Off
"IDENTIFY COMMAND"
Lamp and Status LED Flash for 30 seconds
A 2-way "figure 8" cable and terminal block facilitates the connection to the DALI network. DALI
connections are marked as Da Da.
Instruction Sheet Template - V1.3 – Updated 20/01/2022
are fitted with Zoneworks communications modules (nodes).
LED Operation
LED on Solid (Green)
Batt plugged-in: yellow 1s, green 1s
Batt unplugged: red 1s, off 1s
Batt plugged-in: yellow 1s, green 1s
Batt unplugged: red 1s, off 1s
Batt plugged-in: yellow 250mS, green
250mS, yellow 250mS, green 250mS,
green 1s
Batt unplugged: red 250mS, off
250mS, red 250mS,off 250mS, off 1s
LED flashes at yellow 5s , 0ff 1s
LED flashes at yellow 1s , 0ff 1s
are fitted with DALI modules (nodes) that facilitate connection

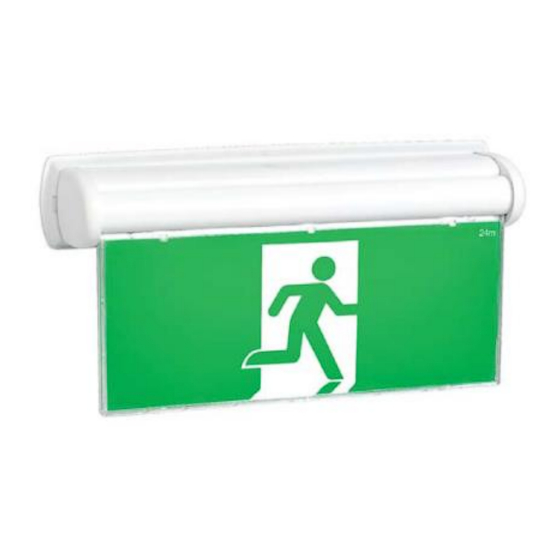

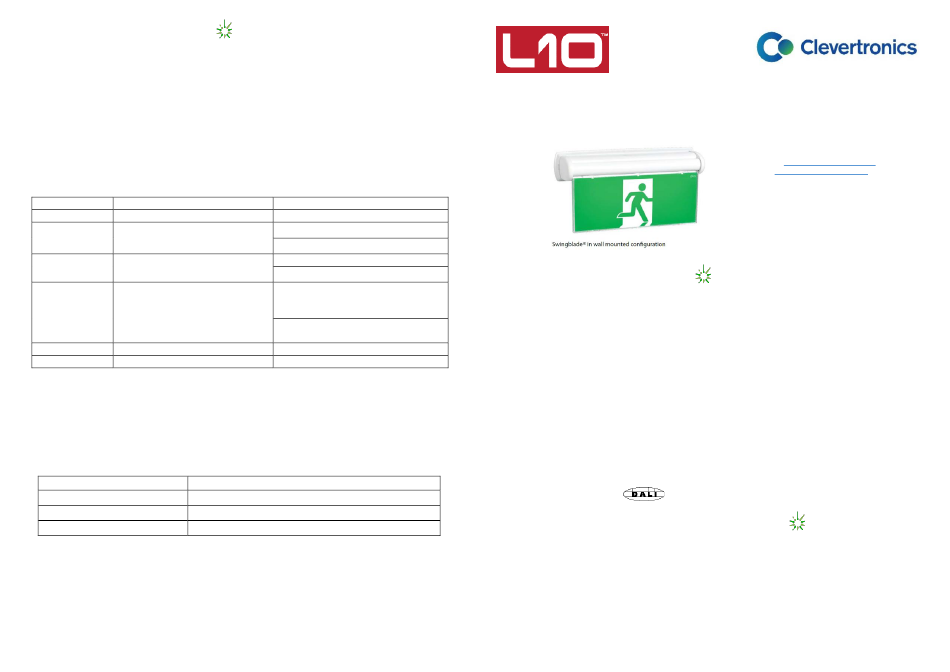

L10™ Swingblade LED
Installation & Maintenance Instruction Leaflet
Designed in Australia to comply with the requirements
of AS2293.3: 2005 and AS/NZS CISPR15: 2017
NOTE: Standard product codes with this symbol
enabled with Clevertest Plus capability. Please refer to the
operation guide supplied with the product for details.
Models:
LSBLED-yy-xx-ss-zz-vv
LCSBLED-yy-xx-ss-zz-vv (Classic blade option)
Testing:
Options:
Manual Test
xx = Blank
Running Man
Zoneworks
xx = ZW
Running Man Left
Arrow
Z/W DATA
xx = DATA
Running Man Right
Arrow
Zoneworks HIVE xx = HV
Double sided R/M
DALI Registered.
xx = DALI
Double sided R/M
Arrow
Clevertest
xx = CT
(NOTE: -CT Products supplied with the Clevertest Plus Symbol
PLUS capability. Please refer to the operation guide supplied with the product for details).
Spare Parts:
1530070
BATT: L10 3.3V 2500mAh 200mm lead, sp.BRKT
8003212
PCA: CT10164-L6 6C83 CTP AU
8003211
PCA: CT10164-L6 6C83 DALI Reg (For -DALI and -HV only)
8003210
PCA: CT10164-L6 6C20 (Theatre, -DALI and -HV only)
8002301
PCA: CT10164-L7 TOP22x SMT 6C20 CTP ZW AU (Theatre, CTP, -ZW)
8002185
PCA:24DLED SB LED Strip, #CT10156-D2
3740010
Directional Sound Module for SwingBlade
Victoria (Head Office & Manufacturing)
Website:
www.clevertronics.com.au
Email:
info@clevertronics.com.au
Phone: +61 3 9559 2700
Fax: +61 3 9559 2799
New South Wales
Phone: +61 2 8805 6400
Fax: +61 2 8805 6444
Queensland
Phone: +61 7 3442 9700
Fax: +61 7 3442 9777
South Australia/Northern Territory
are
Phone: +61 8 8301 8800
Fax: +61 8 8351 8286
Western Australia
Phone: +61 8 9207 0000
Fax: +61 8 9207 0088
New Zealand
Phone: +64 800 548 448
Black in colour vv = BLK
ss=R
ss=RL
Special Legend
ss = SP
Fire Panel
zz = SND-24V
ss=RR
Sound Control
ss=DS-R
Zoneworks
zz = SND
Sound Control
ss=DS-RAOW
Theatre
yy = TH
are activated with Clevertest
1943071
V1.4
28 June 2022
