Clevertronics L10 Cleverfit LCFLED Series Installation & Maintenance Instructions

Clevertest Plus
Refer to the supplementary operation guide supplied with the Product.
After Power ON, the Status LED on a Clevertest Plus enabled fitting will display a rapid Green or Red
flashing for a period up to 2 minutes.
Zoneworks, HIVE (HV/HVG) and DATA Monitored Options
Fittings with part numbers -ZW, -HV, -HVG, -DATA
(nodes). These fittings are monitored using either Powerline Carrier Technology that utilize the power
cable to provide data communication, RF transceiver modules operating in the ISM band or a dedicated
data cable to/from data routers installed on a dedicated data trunk connected to a central Server (can also
be connected via Ethernet/Internet/Fibre). Zoneworks software on the server is used to monitor,
coordinate testing and collate test data from each fitting. Zoneworks Fittings can be commissioned by a
single push of the test switch or by scanning the supplied barcode. The LED Test Switch indicator provides
a multifunction indication of the status of the fitting during testing and normal operation:
Option State
ZW, HV, HVG,
Commissioned
DATA
ZW, DATA Un-commissioned
Un-commissioned
HV, HVG
With network connectivity
Un-commissioned
HV, HVG
Without network connectivity
ZW, DATA Emergency Light Test In Progress
HV, HVG Emergency Light Test In Progress
In the case of the DATA version a 2-way "figure 8" cable and terminal block facilitates the connection to
the DATA network via a multi-drop bus (daisy chain connection). For further information of installation of
a Zoneworks LW system, please refer to the Zoneworks Users Guide and Commissioning Guide (incl.
DATA version)
DALI EM Option
Cleverfits with part numbers -DALI are fitted with DALI modules (nodes) that facilitate connection and
integration to 3 rd Party Lighting Control Systems. Before installing the fitting please confirm that the
Lighting Control System has the capability to monitor DALI Emergency Luminaires. The fitting will be
addressed and configured into the control system by the Lighting Control System Commissioning
Technicians and not Clevertronics.
State LED Operation
Commissioned/ Un-commissioned LED on Solid (Green)
Emergency Light Test in progress LED flashes at 1s On (Yellow) & 1s Off
"IDENTIFY COMMAND" Fitting will flash the Main Lamp for 30 Seconds
A 2-way "figure 8" cable and terminal block facilitates the connection to the DALI network. DALI connections
are marked as Da Da.
are fitted with Zoneworks communications modules
LED Operation
LED on Solid (Green)
Batt plugged-in: yellow 1s, green 1s
Batt unplugged: red 1s, off 1s
Batt plugged-in: yellow 1s, green 1s
Batt unplugged: red 1s, off 1s
Batt plugged-in: yellow 250mS, green 250mS,
yellow 250mS, green 250mS, green 1s
Batt unplugged: red 250mS, off 250mS, red
250mS,off 250mS, off 1s
LED flashes at yellow 5s , 0ff 1s
LED flashes at yellow 1s , 0ff 1s

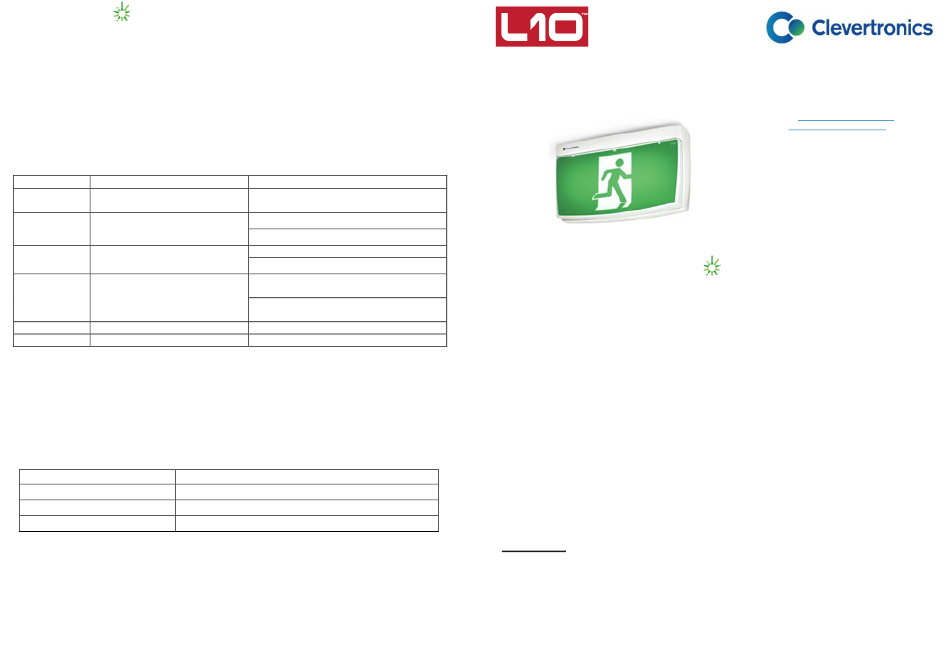

L10™ Cleverfit LED Exit
Installation & Maintenance Instruction Leaflet
Designed in Australia to comply with the requirements
of AS2293.3: 2005 and AS/NZS CISPR15: 2011
NOTE: Standard product codes with this symbol
enabled with Clevertest Plus capability. Please refer to the
operation guide supplied with the product for details.
Models: LCFLED-xx-zz
LCFLED-TH-xx-zz-yy CleverFit Theatre Exit
Testing: Options:
Manual Test xx = Blank
Zoneworks xx = ZW
Zoneworks DATA xx = DATA
Zoneworks HIVE xx = HV/HVG
DALI xx = DALI
DALI-2 xx=D2
Clevertest Essential xx = CTE
Spare Parts:
1530090 Replacement Battery
8002710 Replacement LED Strip
8002349 Replacement Emergency Driver (-CTP, -ZW)
8002358 Replacement Emergency Driver (-DALI, -D2, -HV)
Important:
It is illegal for anyone, except for a licensed electrician to install or maintain this product. Before installation,
ensure that the electricity supply has been switched off and isolated. Installation must be carried out in
accordance with the relevant Australian and International Standards.
Victoria (Head Office & Manufacturing)
Website: www.clevertronics.com.au
Email: info@clevertronics.com.au
Phone: +61 3 9559 2700
Fax: +61 3 9559 2799
New South Wales
Phone: +61 2 8805 6400
Fax: +61 2 8805 6444
Queensland
Phone: +61 7 3442 9700
Fax: +61 7 3442 9777
South Australia/Northern Territory
Phone: +61 8 8301 8800
Fax: +61 8 8351 8286
Western Australia
Phone: +61 8 9207 0000
are
Fax: +61 8 9207 0088
New Zealand
Phone: +64 800 548 448
CleverFit Exit
Running Man yy =R
Running Man Left Arrow yy =RL
Running Man Right Arrow yy =RR
Double sided R/M yy =DS-R
Double sided R/M Arrow yy =DS-RAOW
Black Colour yy =BLK
Special Decal yy = SP
Tamper Proof zz =TP
1942201 V1.4 17 July 2023
