Clevertronics Argonaut PLUS Installation & Maintenance

Clevertest and Clevertest Plus
Refer to the supplementary operation guide supplied with the Product.
Zoneworks, HIVE and DATA Monitored Options
Fittings with part numbers -ZW, -HVG, -DATA
(nodes). These fittings are monitored using either Powerline Carrier Technology that utilize the power
cable to provide data communication, RF transceiver modules operating in the ISM band or a dedicated
data cable to/from data routers installed on a dedicated data trunk connected to a central Server (can also
be connected via Ethernet/Internet/Fibre). Zoneworks software on the server is used to monitor,
coordinate testing and collate test data from each fitting. Zoneworks Fittings can be commissioned by a
single push of the test switch or by scanning the supplied barcode. The LED Test Switch indicator provides
a multifunction indication of the status of the fitting during testing and normal operation:
Option State
ZW, HVG, DATA Commissioned
ZW, DATA Un-commissioned
Un-commissioned
HVG
With network connectivity
Un-commissioned
HVG
Without network connectivity
ZW, DATA Emergency Light Test In Progress
HVG Emergency Light Test In Progress
In the case of the DATA version a 2-way "figure 8" cable and terminal block facilitates the connection to
the DATA network via a multi-drop bus (daisy chain connection). For further information of installation of
a Zoneworks system, please refer to the Zoneworks Users Guide and Commissioning Guide (incl. DATA
version)
DALI EM Option
Luminaires with part numbers having -DALI are fitted with DALI modules (nodes) that facilitate connection
and integration to 3rd Party Lighting Control Systems. Before installing the -DALI fitting please confirm
that the Lighting Control System has the capability to monitor DALI Emergency Luminaires. The -DALI
fitting will be addressed and configured into the control system by the Lighting Control System
Commissioning Technicians and not Clevertronics
State LED Operation
Commissioned/ Un-commissioned LED on Solid (Green)
Emergency Light Test in progress LED flashes at 1s On (Yellow) & 1s Off
"IDENTIFY COMMAND" Fitting goes into emergency mode for 10 seconds
A 2-way "figure 8" cable and terminal block facilitates the connection to the DALI network. DALI
connections are marked as Da Da.
Caution:
On many building sites, power circuits may be cut off in an uncontrolled and repetitive basis during
construction. As a result, any Exit & Emergency Units, on these circuits, will have their batteries
discharged or "cycled". The Li-ion battery in the Exit & Emergency Unit has been selected to give
excellent long life performance in a controlled IEC 60598-2-22 testing environment. Excessive battery
cycling will reduce through-life performance and may lead to premature battery failure. Battery warranty
claims, as a result of such abuse, are specifically EXCLUDED from Clevertronics warranty terms.
UK Instruction Sheet Template – V1.1 – Updated: 20/11/2020
are fitted with Zoneworks communications modules
LED Operation
LED on Solid (Green)
Batt plugged-in: yellow 1s, green 1s
Batt unplugged: red 1s, off 1s
Batt plugged-in: yellow 1s, green 1s
Batt unplugged: red 1s, off 1s
Batt plugged-in: yellow 250mS, green
250mS, yellow 250mS, green 250mS,
green 1s
Batt unplugged: red 250mS, off
250mS, red 250mS,off 250mS, off 1s
LED flashes at yellow 5s , 0ff 1s
LED flashes at yellow 1s , 0ff 1s

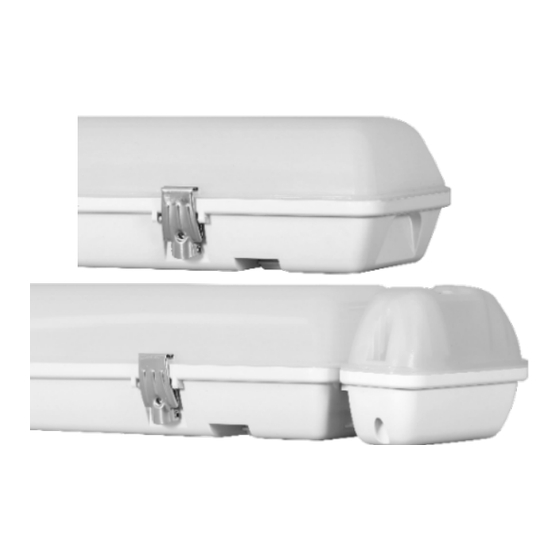

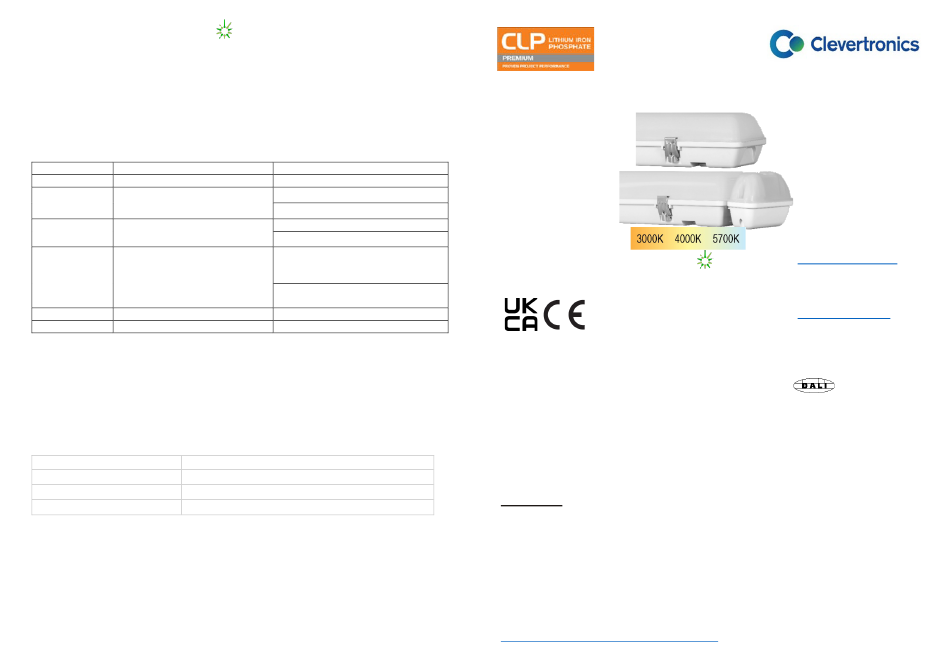

Argonaut PLUS Weatherproof Emergency LED Batten
Installation & Maintenance Instruction Leaflet
NOTE: Standard product codes with this symbol
enabled with Clevertest Plus capability. Please refer to the
operation guide supplied with the product for details.
Models: ARGOPLUS-1500-xx-yy-zz
Options:
Microwave Sensor (HI/LO) xx = SEN
DALI Driver xx = DD
Integrated Battery (non-POD) yy = LP
Emergency POD yy = LPPOD
Spare Parts:
8002753 PCA:LED Strip ARGOPLUS-1500,10P16S,3000K/5700K
1330057 LED Driver - LC 57w 800-1050mA,flexC lp
1330151 LED Driver - TCI DC MAXI JOLLY SVM 65 DALI SLIM
1550230 BATT:LP 3.2V 6400mAh.200mm lead.Brkt.
1550050 BATT:LP 3.2V 3200mAh 70mm lead,no BRKT.
UKM02370070001 Lifelight Pro, Control Only, 475mA, LP, OWC
Important:
It is illegal for anyone, except for a licensed electrician to install or maintain this product. Before installation,
ensure that the electricity supply has been switched off and isolated. Installation must be carried out in
accordance with the relevant British Standards.
Note:
This luminaire (with reinforced insulation between control/LED terminal and AC supply) contains non-user
replaceable light source and battery - to be replaced (if required, refer installation instructions for battery
replacement) by Clevertronics service personnel/agents or a registered electrician.
Warranty:
For Product Warranty information and Terms and Conditions of Sales please refer to our website
https://clevertronics.co.uk/product-warranty-statement/
Australia (Head Office)
Website: www.clevertronics.com.au
are
Email: info@clevertronics.com.au
Phone: +61 3 9559 2700
Fax: +61 3 9559 2799
UK OFFICE
Website: www.clevertronics.co.uk
362 Stockley Close
West Drayton UB7 9BL
Phone: 01895 430 255
Testing:
Manual Test zz = Blank
DALI Registered zz = DALI
Zoneworks zz = ZW
Zoneworks HIVE zz = HVG
(DD & SEN version )
(Non-POD only)
(POD only)
1948894 V1.0 24 March 2021
