Testing:
Once connected to the 240V mains supply, the unit must be allowed to charge the battery for at least 24
hours. Conduct the following tests:
•
For the first test, the emergency lamp must remain illuminated for at least 2 hours after
disconnection from the mains supply.
•
Subsequent tests require the unit to illuminate for at least 90 minutes. The results of all tests are
required to be recorded in a service logbook, which is to be kept on-site at all times. If the unit fails
to remain illuminated for the requisite time, remedial action must be taken to repair the situation
and once completed, the unit must pass a subsequent test. For more specific information, please
refer to the current edition of the AS 2293.3 Standard.
Trouble Shooting:
Below are a list of common problems and their possible causes.
Fault:
The Green LED Test Switch indicator is not illuminated.
Check:
A.C. is connected and is turned on.
Battery is connected
Test Switch for damage.
Fault:
Lamp does not illuminate in emergency mode.
Check:
A.C. is connected.
Lamp is correctly inserted.
Battery is connected
Fault:
Lamp illuminates in emergency mode, but only stays on for a short period.
Check:
Battery has been allowed to charge for at least 24 hours.
Battery for damage.
Fault:
Green LED flashes once every 5 seconds-Battery is disconnected
Check:
Battery is connected.
Fault:
Green LED blinks off once every 5 seconds- Charging very flat battery
Allow 20min to recover battery then recheck
Fault:
Green LED flashes at 2Hz (Fast flash)- Faulty battery
Replace battery
Rated Emergency Lumen Output in accordance with AS2293.1 (refer to
spacing tables for installation positions):
N/A for Theatre Mask
Caution:
On many building sites, power circuits may be cut off in an uncontrolled and repetitive basis during
construction. As a result, any Exit & Emergency Units, on these circuits, will have their batteries
discharged or "cycled". The Li-ion battery in this fitting has been selected to give excellent long life
performance in a controlled AS2293 testing environment. Excessive battery cycling will reduce through-
life performance and may lead to premature battery failure. Battery warranty claims, as a result of such
abuse, are specifically EXCLUDED from Clevertronics warranty terms.
Warranty:
For Product Warranty information and Terms and Conditions of Sales please refer to our website
http://clevertronics.com.au/terms-conditions-sale-australia-nz/

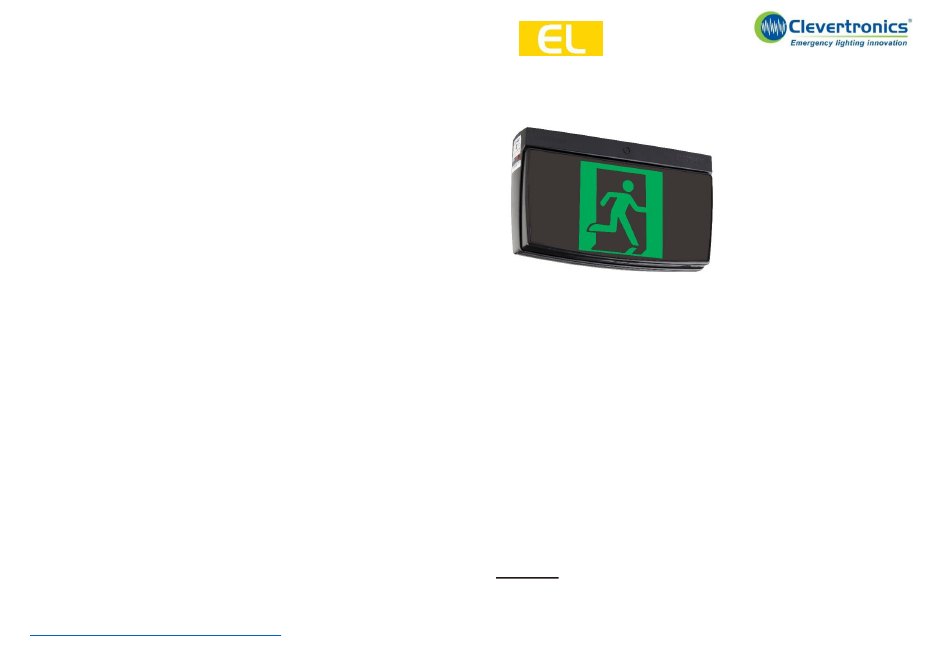

ECFLED-LI-TH

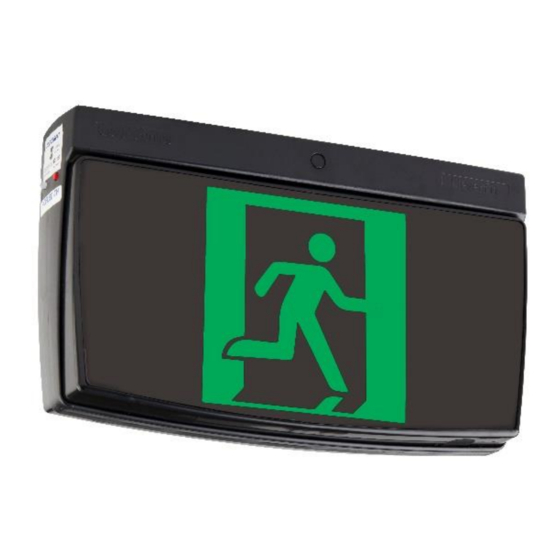

Economy Lithium Cleverfit LED Theatre Exit
Installation & Maintenance Instruction Leaflet
Designed in Australia to comply with the requirements
of AS2293.3: 2005 and AS/NZS CISPR15: 2011.
Models:
ECFLED-LI-TH-yy
Options
yy=E
Exit
yy=R
yy=ER
Exit with Right Arrow
yy=RR
yy=EL
Exit with Left Arrow
yy=RL
yy=DS-R
yy=DS-RAOW
Spare Parts:
1560200
Battery :EcoLith 3.2V 1.1Ah 210mm lead,noBKT
8002900
PCA: LED Strip ECFLED-LI CT10242-D1
8002880
PCA: Driver ECOLITH Cleverfit CT10240-L4
Important:
It is illegal for anyone, except for a licensed electrician to install or maintain this product. Before installation,
ensure that the electricity supply has been switched off and isolated. Installation must be carried out in
accordance with the relevant Australian and International Standards.
Victoria (Head Office & Manufacturing)
195 Chesterville Rd Moorabbin VIC 3189
Phone: +61 3 9559 2700
Fax: +61 3 9559 2799
News South Wales
Phone: +61 2 8805 6400
Fax:
+61 2 8805 6444
Queensland
Phone: +61 7 3442 9700
Fax:
+61 7 3442 9777
South Australia/Northern Territory
Phone: +61 8 8301 8800
Fax: +61 8 8351 8286
Western Australia
Phone: +61 8 9248 3720
Fax: +61 8 9248 3725
New Zealand
Phone:+64 800 548 448
Running man
Running main with Right Arrow
Running main with Left Arrow
Double sided Running Man
Double sided Running Man with Arrow
1942251
V1.1
February 2018
