Clevertest and Clevertest Plus
Refer to the supplementary operation guide supplied with the Product.
After Power ON, the Status LED on a Clevertest Plus enabled fitting will display a rapid Green or Red
flashing for a period up to 2 minutes.
Zoneworks, HIVE (HV/HVG) and DATA Monitored Options
Fittings with part numbers
-ZW, -HV, -HVG, -DATA
(nodes). These fittings are monitored using either Powerline Carrier Technology that utilize the power
cable to provide data communication, RF transceiver modules operating in the ISM band or a dedicated
data cable to/from data routers installed on a dedicated data trunk connected to a central Server (can
also be connected via Ethernet/Internet/Fibre). Zoneworks software on the server is used to monitor,
coordinate testing and collate test data from each fitting. Zoneworks Fittings can be commissioned by
a single push of the test switch or by scanning the supplied barcode. The LED Test Switch indicator
provides a multifunction indication of the status of the fitting during testing and normal operation.
Option
State
ZW, HV, HVG,
Commissioned
DATA
ZW, DATA
Un-commissioned
Un-commissioned
HV, HVG
With network connectivity
Un-commissioned
HV, HVG
Without network connectivity
ZW, DATA
Emergency Light Test In Progress
HV, HVG
Emergency Light Test In Progress
In the case of the DATA version a 2-way "figure 8" cable and terminal block facilitates the connection
to the DATA network via a multi-drop bus (daisy chain connection). For further information of
installation of a Zoneworks system, please refer to the Zoneworks Users Guide and Commissioning
Guide (incl. DATA version)
DALI EM Option
Luminaires with part numbers having
-DALI
rd
connection and integration to 3
Party Lighting Control Systems. Before installing the -DALI luminaire,
please confirm that the Lighting Control System has the capability to monitor DALI Emergency
Luminaires. The -DALI fitting will be addressed and configured into the control system by the Lighting
Control System Commissioning Technicians and not Clevertronics.
State
LED Operation
Commissioned/ Un-commissioned
LED on Solid (Green)
Emergency Light Test in progress
LED flashes at 1s On (Yellow) & 1s Off
"IDENTIFY COMMAND"
Lamp and Status LED Flash for 30 seconds
A 2-way "figure 8" cable and terminal block facilitates the connection to the DALI network. DALI
connections are marked as Da Da.
are fitted with Zoneworks communications modules
LED Operation
LED on Solid (Green)
Batt plugged-in: yellow 1s, green 1s
Batt unplugged: red 1s, off 1s
Batt plugged-in: yellow 1s, green 1s
Batt unplugged: red 1s, off 1s
Batt plugged-in: yellow 250mS, green
250mS, yellow 250mS, green 250mS,
green 1s
Batt unplugged: red 250mS, off
250mS, red 250mS,off 250mS, off 1s
LED flashes at yellow 5s , 0ff 1s
LED flashes at yellow 1s , 0ff 1s
are fitted with DALI modules (nodes) that facilitate

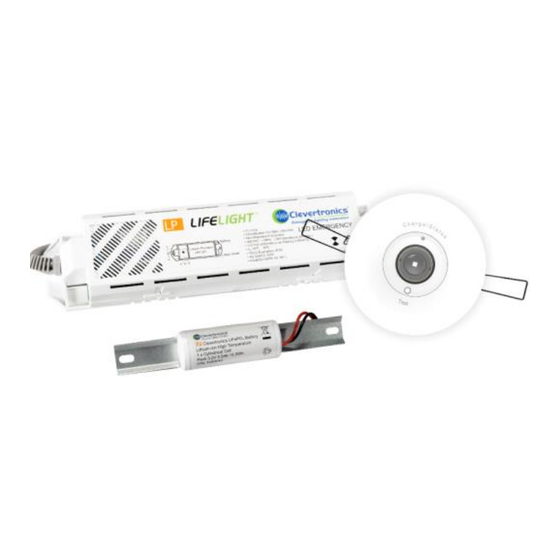

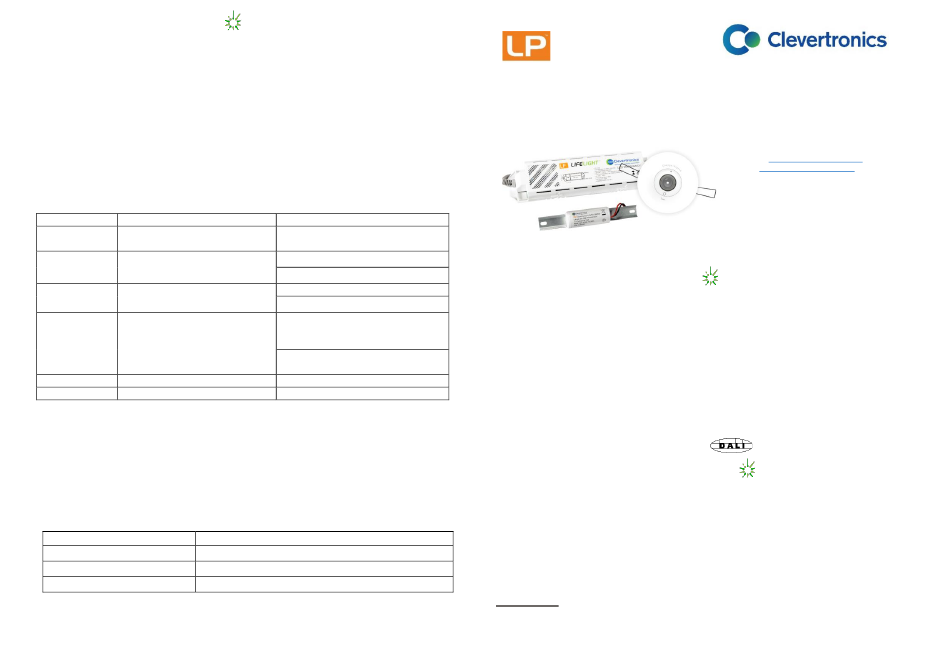

LP™ LIFELIGHT Recessed Splash Proof
Emergency Light
Installation & Maintenance Instruction Leaflet
Designed in Australia to comply with the
requirements of AS2293.3: 2005 and AS/NZS
CISPR15: 2011.
NOTE: Standard product codes with this symbol
are enabled with Clevertest Plus capability. Please
refer to the operation guide supplied with the product
for details.
Models:
CLIFE-RECSP-zz-xx-yy-vv-ss
Testing:
Manual Test
xx = Blank
Zoneworks
xx = ZW
Zoneworks DATA
xx = DATA
Zoneworks HIVE
xx = HV/HVG
DALI Registered
xx = DALI
Clevertest
xx = CT
(NOTE: -CT Products supplied with the Clevertest Plus Symbol
PLUS capability. Please refer to the operation guide supplied with the product for details).
Spare Parts:
1100760
Replacement Emergency LED Lamp
1100759
Replacement Emergency LED Lamp (-CL)
1550010
Replacement Battery
1550230
Replacement Battery (-4HR)
AUM02370010001
Replacement Emergency Driver
AUM02870080001 /
AUM02970020001
Replacement Emergency Driver (-HV / -HVG)
AUM02270150102
Replacement Emergency Driver (-DALI)
Important:
It is illegal for anyone, except for a licensed electrician to install or maintain this product. Before installation,
ensure that the electricity supply has been switched off and isolated. Installation must be carried out in
accordance with the relevant Australian and International Standards.
Victoria (Head Office & Manufacturing)
Website:
www.clevertronics.com.au
Email:
info@clevertronics.com.au
Phone: +61 3 9559 2700
Fax: +61 3 9559 2799
News South Wales
Phone: +61 2 8805 6400
Fax:
+61 2 8805 6444
Queensland
Phone: +61 7 3442 9700
Fax:
+61 7 3442 9777
South Australia/Northern Territory
Phone: +61 8 8301 8800
Fax: +61 8 8351 8286
Western Australia
Phone: +61 8 9207 0000
Fax: +61 8 9207 0088
New Zealand
Phone: +64 800 548 448
Options:
4 Hour runtime vv=4HR
Corridor Lens zz=CL
Tamper Proof yy = TP
Custom Colour ss = CC
are activated with Clevertest
1942322
V1.5
27 June 2022
