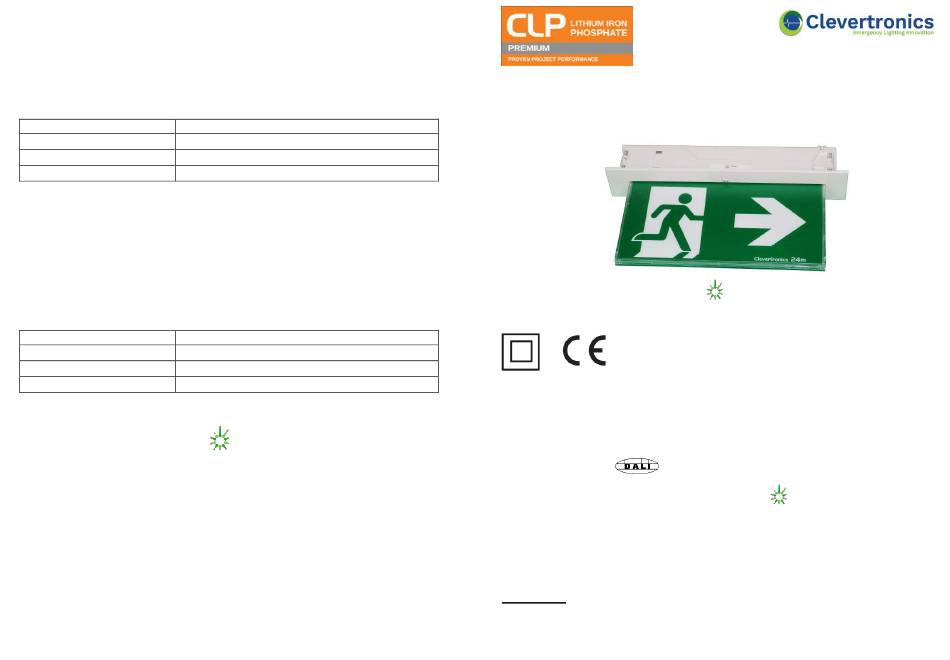

Clevertronics CLP Ultrablade Pro CUBPRO Series Installation & Maintenance Instruction Leaflet

Zoneworks and DATA Monitored Options
Ultrablades with part numbers CUBPRO-ZW, CUBPRO-DATA
modules (nodes).These fittings are monitored using either Powerline Carrier Technology that utilises the
power cable to provide data communication or a dedicated data cable to/from data routers installed on a
dedicated data trunk connected to a central Server (can also be connected via Ethernet/Internet/Fibre).
Zoneworks software on the server is used to monitor, coordinate testing and collate test data from each
Ultrablade and can be commissioned by a single push of the test switch, or scanning of the supplied
barcode. The LED Test Switch indicator provides a multifunction indication of the status of the Ultrablade
during testing and normal operation:
State LED Operation
Commissioned LED on Solid (Green)
Un-commissioned LED flashes at 0.5Hz (0.5s Green, 0.5s Yellow)
Emergency Light Test In Progress LED flashes at 3s On (Yellow) & 0.5s Off
In the case of the DATA version a 2-way "figure 8" cable and terminal block facilitates the connection to
the DATA network via a multi-drop bus (daisy chain connection). For further information of installation of
a Zoneworks XT system, please refer to the Zoneworks Users Guide and Commissioning Guide (incl.
DATA version)
DALI EM Option
Ultrablades with part numbers CUBPRO-DALI
rd
connection and integration to 3 Party Lighting Control Systems. Before installing the CUBPRO-DALI
please confirm that the Lighting Control System has the capability to monitor DALI Emergency Luminaires.
The CUBPRO-DALI will be addressed and configured into the control system by the Lighting Control
System Commissioning Technicians and not Clevertronics.
State LED Operation
Commissioned/ Un-commissioned LED on Solid (Green)
Emergency Light Test in progress LED flashes at 1s On (Yellow) & 1s Off
"IDENTIFY COMMAND"
Fitting goes into emergency mode for 10 seconds
A 2-way "figure 8" cable and terminal block facilitates the connection to the DALI network. DALI
connections are marked as Da Da.
Clevertest and Clevertest Plus
Refer to the supplementary operation guide supplied with the Product.
After Power ON, the Status LED on a Clevertest Plus enabled fitting will display a rapid Green or Red
flashing for a period up to 2 minutes.
Caution:
On many building sites, power circuits may be cut off in an uncontrolled and repetitive basis during
construction. As a result, any Ultrablade Units, on these circuits, will have their batteries discharged or
"cycled". The Li-ion battery in the Ultrablade has been selected to give excellent long life performance in
a controlled IEC 60598-2-22 testing environment. Excessive battery cycling will reduce through-life
performance and may lead to premature battery failure. Battery warranty claims, as a result of such
abuse, are specifically EXCLUDED from Clevertronics warranty terms.
are fitted with Zoneworks communications
are fitted with DALI modules (nodes) that facilitate

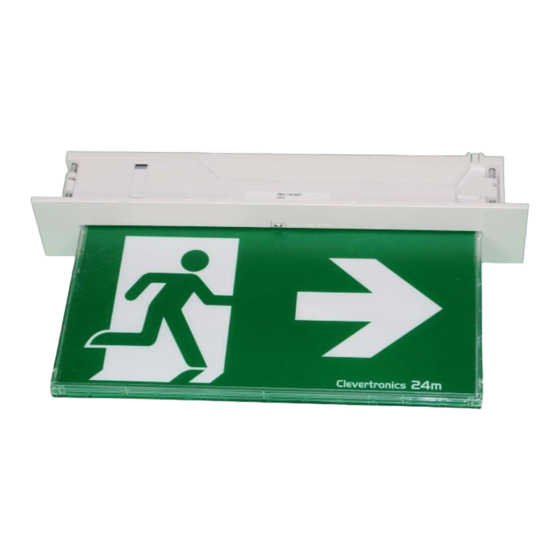

CLP™ Ultrablade Pro Recessed LED Exit
Installation & Maintenance Instruction Leaflet
NOTE: Standard product codes with this symbol
are enabled with Clevertest Plus capability. Please refer to the
operation guide supplied with the product for details.
IP20
CUBPRO-xx
Models:
Testing Options:
Manual Test xx = Blank
Zoneworks xx = ZW
Z/W DATA xx = DATA
DALI xx = DALI
Clevertest xx = CT
(NOTE: -CT Products supplied with the Clevertest Plus Symbol
capability. Please refer to the operation guide supplied with the product for details).
Spare Parts:
1550050 BATT:CLP 3.2V 3200mAh 70mm lead,no BRKT.
8002178 PCA:UBP LED strip PCB Assy (CT10602-Dx)
UKM02170130001 CUBPRO-CKIT-60, Ultrablade Pro, Control Only, CLP, 60mA
Important:
It is illegal for anyone, except for a licensed electrician to install or maintain this product. Before installation,
ensure that the electricity supply has been switched off and isolated. Installation must be carried out in
accordance with the relevant British Standards.
Australia (Head Office)
195 Chesterville Rd
Moorabbin VIC 3189
Phone: +61 3 9559 2700
E-Mail: support@clevertronics.com.au
UK OFFICE
362 Stockley Close
West Drayton UB7 9BL
Phone: 01895 430 255
are activated with Clevertest PLUS
1943040 V1.0 6 August 2019
