This manual contains important safety information
concerning the maintenance, use and operation of this
product. Failure to follow the instructions contained in this
manual may result in serious injury. If you're unable to
understand the contents of this manual, please bring it to
the attention of your supervisor. Do not operate this
equipment unless you have read and understood the
contents of this manual.
GLO-RAY

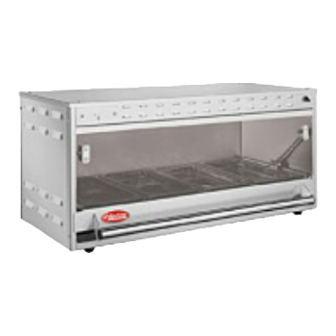

Multi-Staging Warmer
GRMW Series
Installation &
Operating Manual
I&W #07.05.157.00
®
Este manual contiene importante información sobre
seguridad concerniente al mantenimiento, uso y
operación de este producto. Cualquier falla en el
seguimiento de las instrucciones contenidas en este
manual puede resultar en un serio daño. Si usted no
puede entender el contenido de este manual por
favor pregunte a su supervisor. No opere este
equipo al menos que haya leído y comprendido el
contenido de este manual.
Advertisement
Table of Contents
Related Manuals for Hatco Glo-Ray GRMW-3
Summary of Contents for Hatco Glo-Ray GRMW-3
- Page 1 Multi-Staging Warmer Operating Manual This manual contains important safety information concerning the maintenance, use and operation of this product. Failure to follow the instructions contained in this manual may result in serious injury. If you’re unable to understand the contents of this manual, please bring it to the attention of your supervisor.
-
Page 2: Table Of Contents
Glo-Ray ® Multi-Staging Warmer in the spaces below. Please have this information available when calling Hatco for service assistance. Model No. ________________________________ Serial No. ________________________________ Voltage __________________________________ Date of Purchase __________________________... -
Page 3: Important Safety Information
Some aftermarket or generic replacement parts do not have the characteristics that will allow them to operate safely in Hatco equipment. It is essential to use Hatco Replacement Parts when repairing Hatco equipment. Failure to... -
Page 4: Model Descriptions
1/3 size pans, 2-1/2" (64 mm) deep. Form No. GRMWM-0107 Figure 1. Glo-Ray GRMW-4 NOTE: Pans not supplied by Hatco. Pans must be suitable for high temperature applications. -
Page 5: Specifications
26-5/8" 18-1/4" (676 mm) (464 mm) GRMW-4 34-1/2" 17-3/8" (876 mm) (441 mm) GRMW-3 with Two-Product Electronic Timer Receptacle not supplied by Hatco. Figure 2. Plug Configuration ELECTRICAL RATING CHART Watts Amps Plug Configuration NEMA 5-15P NEMA 5-15P NEMA 5-15P Height 15-1/8"... -
Page 6: Installation
3. Remove tape and protective packaging from all surfaces of unit. 4. The GRMW-3 and GRMW-4 series units are supplied with pan dividers. To install them, place dividers channels (See Figure 4.) -
Page 7: Operation
PROCEDURE. TWO-PRODUCT ELECTRONIC TIMER The Two-Product Timer is optional only on the GRMW-3 and is not available for retrofit. Read and keep these instructions for future reference. NOTE: Always stand and face the side of the warmer with the timer panel when reviewing the timer instructions. -
Page 8: Maintenance
8. Press BOTH Arrow buttons simultaneously to exit programming mode and save settings. The unit is now set for normal mode operation. Time Value Display Time Value Display GLO-RAY FOODWARMER TIMER 1 TIMER 2 LED Light HATCO CORP. MILWAUKEE, WI U.S.A. Right Pan Arrow... -
Page 9: Thermostat Adjustment
THERMOSTAT ADJUSTMENT (GRMW-3 and GRMW-4 Only) (See Figure 7) WARNING To avoid any injury or damage to the unit thermostat adjustments must only be performed by authorized personnel. 1. Place the power switch on the OFF position and unplug the unit from the power source. -
Page 10: Drawer Removal Procedure
Some aftermarket or generic replacement characteristics that will allow them to operate safely in Hatco equipment. It is essential to use Hatco Replacement Parts when repairing Hatco equipment. Failure to use Hatco Replacement Parts may subject operators of the equipment to hazardous electrical voltage, resulting in electrical shock or burn. -
Page 11: Hatco Limited Warranty
Hatco reserves the right to accept or reject any such claim in whole or in part. Hatco will not accept the return of any Product without prior written approval from Hatco, and all such approved returns shall be made at Buyer’s sole expense. -
Page 12: Authorized Parts Distributors
INDIANA GCS Service Indianapolis 317-545-9655 P.O. Box 340500, Milwaukee, WI 53234-0500 U.S.A. Parts & Service Fax (800) 690-2966 Printed in U.S.A. January 2007 HATCO AUTHORIZED PARTS DISTRIBUTORS NEW YORK Acme American Repairs, Inc. 319-323-1823 Brooklyn Alpro Service Co. 515-262-9308 Brooklyn...
