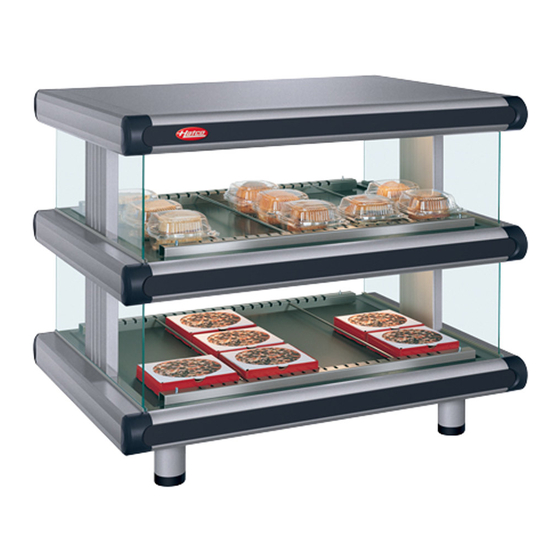

Hatco GLO-RAY GRSDH-24 Installation And Operating Manual

Glo-ray grsdh series; glo-ray grsds series; glo-ray grsds/h series; merchandising display warmers
Hide thumbs Also See for GLO-RAY GRSDH-24:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation and Operating Manual
www.hatcocorp.com
Register Online!
(see page 2)
Merchandising Display Warmers
GRSDH, GRSDS, and GRSDS/H Series
Installation and Operating Manual
WARNING
Do not operate this equipment unless you
have read and understood the contents of
this manual! Failure to follow the
instructions contained in this manual may
result in serious injury or death. This
manual
contains
important
information concerning the maintenance,
use, and operation of this product. If
you're unable to understand the contents
of this manual, please bring it to the
attention of your supervisor. Keep this
manual in a safe location for future
reference.
GLO-RAY
P/N 07.04.301.00
ADVERTENCIA
No opere este equipo al menos que haya
leído y comprendido el contenido de este
manual! Cualquier falla en el seguimiento
de las instrucciones contenidas en este
manual puede resultar en un serio lesión
safety
o
muerte.
Este
importante información sobre seguridad
concerniente al mantenimiento, uso y
operación de este producto. Si usted no
puede entender el contenido de este
manual
por
favor
supervisor. Almacenar este manual en
una localización segura para la referencia
futura.
®
Ne pas utiliser cet équipement sans avoir
lu et compris le contenu de ce manuel !
Le
contenues dans ce manuel peut entraîner
de graves blessures ou la mort. Ce
manual
contiene
manuel
importantes
l'utilisation et le fonctionnement de ce
produit. Si vous ne comprenez pas le
contenu de ce manuel, veuillez le signaler
pregunte
a
su
à votre supérieur. Conservez ce manuel
dans un endroit sûr pour pouvoir vous y
référer plus tard.
AVERTISSEMENT
non-respect
des
instructions
contient
des
informations
concernant
l'entretien,
© 2011 Hatco Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GLO-RAY GRSDH-24 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hatco GLO-RAY GRSDH-24

Summary of Contents for Hatco GLO-RAY GRSDH-24

  • Page 1 à votre supérieur. Conservez ce manuel manual in a safe location for future dans un endroit sûr pour pouvoir vous y supervisor. Almacenar este manual en reference. una localización segura para la referencia référer plus tard. futura. © 2011 Hatco Corporation...

  • Page 2: Table Of Contents

    Register your unit! Completing online warranty registration will prevent delay in 24 Hour 7 Day Parts and Service obtaining warranty coverage. access the Hatco website at Assistance available in the United States www.hatcocorp.com, select the Parts & Service pull-down and Canada by calling (800) 558-0607.

  • Page 3: Important Safety Information

    This unit has no “user-serviceable” parts. If service is maintenance. required on this unit, contact an Authorized Hatco Service • DO NOT submerge or saturate with water. Unit is not Agent or contact the Hatco Service Department at waterproof.

  • Page 4: Model Designation

    Center Horizontal Shelf Figure 1. model Designation MODEL DESCRIPTION All Models GRSDS Models all Hatco Glo-Ray merchandising Display Warmers are The GRSDS models are slant shelf warmers designed to hold ® constructed of aluminum, stainless steel, and powdercoated hot wrapped product. The shelves are slanted for the steel.

  • Page 5: Specifications

    Figure 5. Plug Configurations configuration for electrical specifications of unit. NOTE: Receptacle not supplied by Hatco. Contact a qualified electrician to determine and install proper electrical plug. Electrical Rating Chart — GRSDH Models, Single Shelf Model Voltage...
  • Page 6 SPECIFICATIONS Electrical Rating Chart — GRSDH Models, Horizontal Dual Shelf Model Voltage Watts Amps Plug Configuration Shipping Weight GRSDH-24D 1660 13.8 NEma 5-15P 90 lbs. (41 kg) GRSDH-30D 1920 16.0 NEma 5-20P 100 lbs. (45 kg) 1780 CEE 7/7 Schuko 100 lbs.
  • Page 7 SPECIFICATIONS Electrical Rating Chart — GRSDS Models, Slant Single Shelf Model Voltage Watts Amps Plug Configuration Shipping Weight GRSDS-24 NEma 5-15P 72 lbs. (33 kg) CEE 7/7 Schuko 72 lbs. (33 kg) BS-1363 72 lbs. (33 kg) 220–230 (CE) 629–688 2.9–3.0 CEE 7/7 Schuko 72 lbs.
  • Page 8 SPECIFICATIONS Electrical Rating Chart — GRSDS Models, Slant Dual Shelf Model Voltage Watts Amps Plug Configuration Shipping Weight GRSDS-24D 1355 11.3 NEma 5-15P 128 lbs. (58 kg) 1352 CEE 7/7 Schuko 128 lbs. (58 kg) 1611 BS-1363 128 lbs. (58 kg) 220–230 (CE) 1352–1479 6.1–6.4...
  • Page 9 SPECIFICATIONS Electrical Rating Chart — GRSDS Models, Slant Dual Shelf (continued) Model Voltage Watts Amps Plug Configuration Shipping Weight GRSDS-52D 120† 1400/1325 11.7/11.0 NEma 5-15P‡ 205 lbs. (93 kg) 120/208–240 2725 11.7 NEma L14-20P 205 lbs. (93 kg) 2483 11.3 CEE 7/7 Schuko 205 lbs.

  • Page 10: Dimensions - Grsdh Models

    SPECIFICATIONS Dimensions — GRSDH Models Width Depth Height Shelf Footprint Footprint Model (C)* Height (D) Width (E) Depth (F) GRSDH-24 24″ 19-1/2″ 12-1/8″† 7-1/8″ 21-1/2″ 18″ (610 mm) (495 mm) (308 mm) (181 mm) (546 mm) (457 mm) GRSDH-30 30″ 19-1/2″...

  • Page 11: Dimensions - Grsds Models

    SPECIFICATIONS Dimensions — GRSDS Models Width Depth Height Shelf Footprint Footprint Model Height (D) Width (E) Depth (F) GRSDS-24 24″ 24-1/4″ 18-5/8″† 8-1/4″ 21-1/2″ 22-1/2″ (610 mm) (614 mm) (473 mm) (210 mm) (546 mm) (572 mm) GRSDS-30 30″ 24-1/4″ 18-5/8″†...

  • Page 12: Dimensions - Grsds/H Models

    SPECIFICATIONS Dimensions — GRSDS Models, Slant Triple Shelf Width Depth Height Footprint Footprint Model Width (D) Depth (E) ♦ GRSDS-24T 24″ 24-1/4″ 43-7/8″ 21-1/2″ 22-3/4″ (610 mm) (614 mm) (1114 mm) (546 mm) (578 mm) GRSDS-36T 36″ 24-1/4″ 43-7/8″ 33-1/2″ 22-3/4″...

  • Page 13: Installation

    INSTALLATION General 4. Slide each glass side panel into the upper channel, then lower the panel into the lower channel. Glo-Ray merchandising Display Warmers are shipped with ® most components pre-assembled. Care should be taken when unpacking shipping carton to avoid damage to the unit and components enclosed.

  • Page 14: Operation

    OPERATION General 3. Turn the Temperature Control(s) to the desired temperature setting between LOW and HIGH. The operating Use the following procedures to operate the merchandising temperature range of the heated base(s) is from room Display Warmers. temperature to approximately 185°–200°F (85°–93°C). WARNING •...

  • Page 15: Maintenance

    This unit has no “user-serviceable” parts. If service is NOTE: Hatco shatter-resistant light bulbs meet NSF standards required on this unit, contact an Authorized Hatco Service for food holding and display areas. For 120 and Agent or contact the Hatco Service Department at 120/208–240...

  • Page 16: Troubleshooting Guide

    Restrict or redirect air movement (i.e., air conditioning duct or exhaust fan) away from unit or install flip-up doors on unit to contain heat and block air flow. Unit connected to incorrect power supply. Contact authorized Service agent or Hatco for assistance. Food cavity too hot.

  • Page 17: Options And Accessories

    OPTIONS AND ACCESSORIES Digital Temperature Controller Sneeze Guards Units may be equipped with an optional digital temperature Optional sneeze guards are available for the all models. controller that regulates and displays the base temperature(s). GRSDH models can be fitted with sneeze guards above each Use the following procedures to operate the digital temperature shelf on both sides of the unit.
  • Page 18 OPTIONS AND ACCESSORIES 4″ (102 mm) Adjustable Legs Flip-Up Doors Flip-up doors are available as accessories for all models. The doors can be installed to each shelf on either the customer NOTICE side or operator side of the unit. Use the following procedure to Do not lay unit on the side with the control panel or install flip-up doors (the procedure is the same for either side as damage to unit could occur.

  • Page 19: Limited Warranty

    Hatco’s written instructions or Without limiting the generality of the foregoing, SUCH 18 months from the date of shipment from Hatco. Buyer must WaRRaNTIES DO NOT COVER: Coated incandescent light establish the Product’s purchase date by returning Hatco’s...

  • Page 20: Authorized Parts Distributors

    HATCO AUTHORIzED PARTS DISTRIBUTORS ALABAMA IOWA NEW YORK TEXAS Jones mcLeod appl. Svc. Electric motor Service Co. acme american Repairs, Inc. GCS Service Birmingham 205-251-0159 Davenport 319-323-1823 Brooklyn 718-456-6544 Fort Worth 800-433-1804 Goodwin Tucker Group alpro Service Co. armstrong Repair Service...

This manual is also suitable for:

Glo-ray grsdh-36Glo-ray grsdh-52Glo-ray grsdh-30Glo-ray grsdh-41Glo-ray grsdh-60Glo-ray grsdh-24d ... Show all
