Installation and Assembly - Slimline
IMPORTANT! Read entire instruction sheet before
you start installation and assembly.

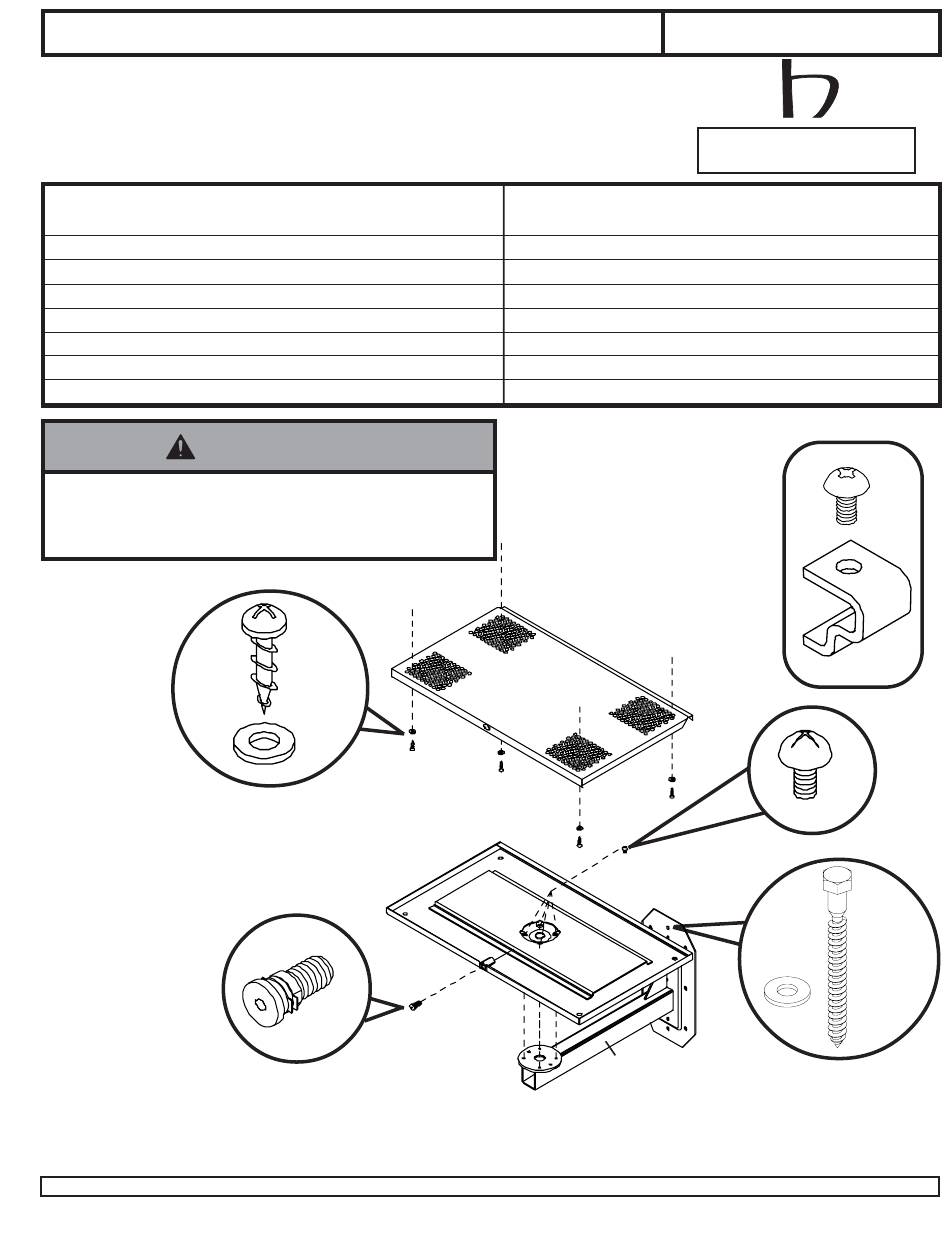

Parts List
PART #
QTY. DESCRIPTION
A 2141-376
1
B 120-0015-1
1
120-0002
1
C 1436-373
1
D 510-9107
4
E 500-9006
4
F 540-9400
4
WARNING
• Installer must verify that the wall will safely support
the combined weight of all attached equipment and
hardware.
Visit the Peerless Web Site at www.peerlessmounts.com
®
wall arm
lower tray (LWB 530 only)
lower tray (LWB 530T only)
upper tray (LWB 530 & 350T only)
1/4" philips machine screw
#10 philips particle board screw
small flat washer
E
F
G

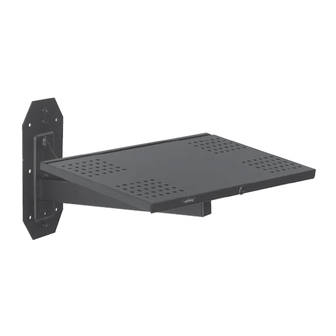

Wall Mount
PART #
G 3022-502
H 0000-322
I
520-9250
J 2245-081
K 520-1236
L 540-9401
Some parts may appear slightly different than illustrated.
C
B
1 of 6
For customer service call 1-800-729-0307 or 708-865-8870.
Model: OP-LWB 530, OP-LWB 530T
os
MAXIMUM OSHPD LOAD
CAPACITY: 96 lb (43.5 kg)
QTY. DESCRIPTION
1
lock plug
1
key (not shown)
4
M5 x .8 x 10 mm philips screw
4
uni-clip
10
1/4" x 4" lag bolt
10
1/4 x 3/4 x 1/16 washer
L
A
ISSUED: 05-23-05 SHEET #: 029-9011-2 12-14-05
pd
I
J
D
K
Advertisement
Table of Contents
Related Manuals for PEERLESS Slimline OP-LWB 530
Summary of Contents for PEERLESS Slimline OP-LWB 530
- Page 1 • Installer must verify that the wall will safely support the combined weight of all attached equipment and hardware. 1 of 6 ISSUED: 05-23-05 SHEET #: 029-9011-2 12-14-05 Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
- Page 2 The use of an "edge to edge" stud finder is highly recommended. 2 of 6 ISSUED: 05-23-05 SHEET #: 029-9011-2 12-14-05 Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
- Page 3 Fig. 3.1.3 USE HOLES SHOWN WASHER BELOW (540-9401) POWERS WEDGE BOLT (560-1165) 3 of 6 ISSUED: 05-23-05 SHEET #: 029-9011-2 12-14-05 Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
- Page 4 WARNING • When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete surface in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1"...
- Page 5 (C) to TV bottom. Attach at four places as close to the four corners of the TV bottom as possible. 5 of 6 ISSUED: 05-23-05 SHEET #: 029-9011-2 12-14-05 Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
- Page 6 Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870. © 2005 Peerless Industries, Inc. All rights reserved. Peerless is a registered trademark of Peerless Industries, Inc. All other brand and product names are trademarks or registered trademarks of their respective owners.
