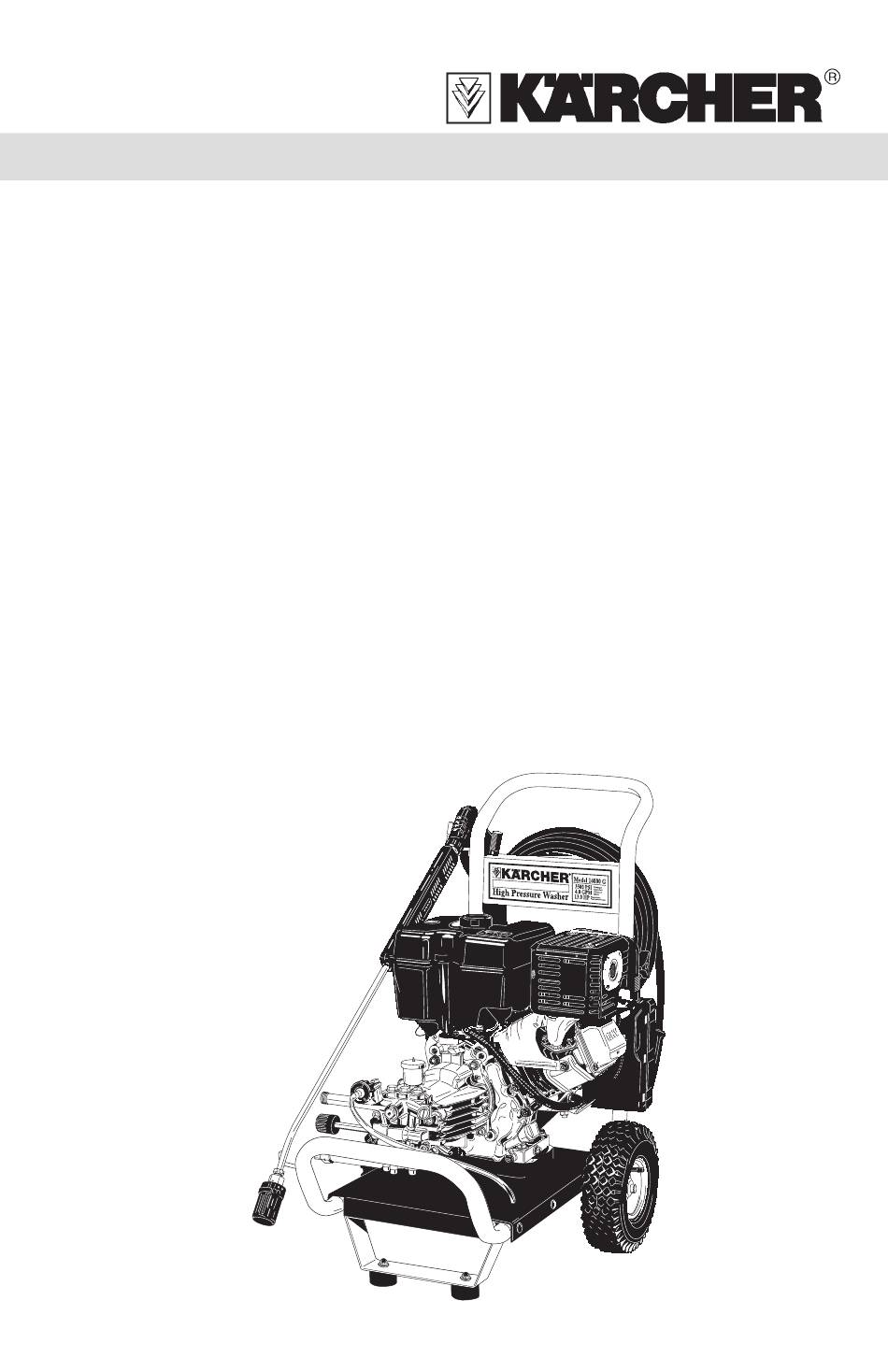

Model K14000 G
High Pressure Washer Operator Manual
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . .3
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . .4-5
Using the Accessories . . . . . . . . . . . . . . . . . . . . . . . .5
Working with Detergents . . . . . . . . . . . . . . . . . . . . . . .6
Shut Down and Clean-Up . . . . . . . . . . . . . . . . . . . . . .7
Taking a Break . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Winterizing and Long-Term Storage . . . . . . . . . . . . . .7
Cleaning Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9
Optional Cleaning Accessories . . . . . . . . . . . . . . . . . .9
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . .10-11
Specifications
Operating pressure
Water volume
Engine
3500 PSI
4.0 GPM
13 HP Briggs & Stratton Vanguard
Part No. 1.810-989.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K14000 G and is the answer not in the manual?

Questions and answers

Related Manuals for Kärcher K14000 G

Summary of Contents for Kärcher K14000 G

  • Page 1: Table Of Contents

    Model K14000 G Part No. 1.810-989.0 High Pressure Washer Operator Manual Overview ........1 Precautions .

  • Page 2: Overview

    MODEL K 14000 G OVERVIEW Item Description 1. Front guard 2. Oil fill 2A & 2B (not pictured) 3. Fuel valve (not pictured) 4. Pull start (not pictured) 5. Knob Assembly (two each): Bolt Knob 6. High pressure hose 7. Handle 8.
  • Page 3 IMPORTANT PRECAUTIONS – Read First! Safety Warnings Water Supply (Cold Water Only) When using this product basic precautions should always be followed: • Water hose must be at least 3/4 inch in • Read all the instructions before using the diameter.

  • Page 4: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Tools required: adjustable pliers. Step 1 Step 2 Attach the handle to the frame of Attach high pressure hose to the pressure washer. Align holes, insert bolt, trigger gun. and tighten with knob. Step 3 Step 4 Attach the triple jet nozzle to the Attach the spray wand to the spray wand.

  • Page 5: Operating Instructions

    OPERATING INSTRUCTIONS Step 1 Step 2 Connect the high pressure hose Connect garden hose to unit’s to the unit’s high pressure outlet. water inlet. Step 3 Step 4 Step 5 Connect garden Trigger the gun hose to the cold water to eliminate trapped air, Turn the engine on (I).

  • Page 6: Using The Accessories

    OPERATING INSTRUCTIONS - continued Step 8 Step 9 Pull the starter handle. If the Adjust pressure control to engine fails to start after 3 pulls squeeze the desired setting. trigger gun to release pressure, and repeat step 8. USING THE ACCESSORIES The triple jet nozzle must be positioned to one of the two settings for high pressure cleaning by turning the nozzle tip.

  • Page 7: Working With Detergents

    WORKING WITH DETERGENT Detergents can only be applied in the “CHEM” setting. Step 1 Step 2 To apply detergents the triple jet Fill a container with Karcher nozzle must be set to the “CHEM” position. detergent. Place the filter end of detergent suction tube into the container.

  • Page 8: Shut Down And Clean-Up

    SHUTTING DOWN & CLEAN-UP Step 1 Step 2 Step 3 Step 4 Remove detergent suction tube Turn off (O) the Turn off the fuel Turn off the from container and insert engine. valve. water source. into one gallon of fresh water.

  • Page 9: Cleaning Tips

    CLEANING TIPS Cement Patios, Deck Cleaning Brick and Stone (with or without detergent) (with or without detergent) Pre-rinse deck and surrounding area with Pre-rinse cleaning surface with fresh water. fresh water. If using Kärcher Deck Wash, If using Karcher All Purpose Cleaner, place place detergent suction tube directly into detergent suction tube directly into cleaning cleaning solution and apply to surface at...

  • Page 10: Optional Cleaning Accessories

    CLEANING TIPS - continued Barbecue Grills, Outdoor Recommendations Power Equipment & • Before cleaning any surface an inconspic- uous area should be cleaned to test spray Gardening Tools pattern and distance for maximum clean- (with or without detergent) ing results. Pre-rinse cleaning surface with fresh water.

  • Page 11: Troubleshooting

    TROUBLESHOOTING Symptom Cause Solution Engine will not No gasoline. Fill gas tank. start Low oil level. Add oil. Slide choke lever to “CHOKE” Choke is not in correct position. position. Engine throttle is not in Position the throttle to “FAST”. correct position.
  • Page 12 TROUBLESHOOTING - continued Symptom Cause Solution No detergent. Detergent suction tube not Check connection. properly connected to the machine. Detergent metering valve is Set metering valve to a higher closed or is set in the low dosage. position. Detergent is too thick. Dilute detergent, for best results use Kärcher detergent.
