Summary of Contents for Russell Hobbs RHEO7201DS
- Page 1 Multifunctional Electric Fan Oven Instruction Manual Model number: RHEO7201DS For Customer Services & Spare Parts please call 0345 208 8750 or visit us at mda.russellhobbs.com IMPORTANT: RETAIN FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
CONTENTS Page(s) Safety instructions Product Overview Positioning Installation How To Use Your Oven 10-22 Cleaning & Maintenance 23-29 Trouble shooting Guarantee Product Information Notes 33-35 Disposal information... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Important Note: Please read this booklet before installing and switching on this appliance. The manufacturer assumes no responsibility for incorrect installation and usage as described in this booklet. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand... - Page 4 SAFETY INSTRUCTIONS • This appliance can only be installed in a well-ventilated place in accordance with existing regulations and ventilation specifications. • This appliance is intended for domestic use and the household environment only. The appliance is not intended for use outside. •...
- Page 5 SAFETY INSTRUCTIONS • The universal tray or any other kind of baking tray should not be placed on the bottom of the oven cavity. • Alcoholic vapours may catch fire in the hot cooking compartment. Never prepare food containing large quantities of drinks with a high alcohol content. Only use small quantities of drinks with a high alcohol content.
-
Page 6: Product Overview

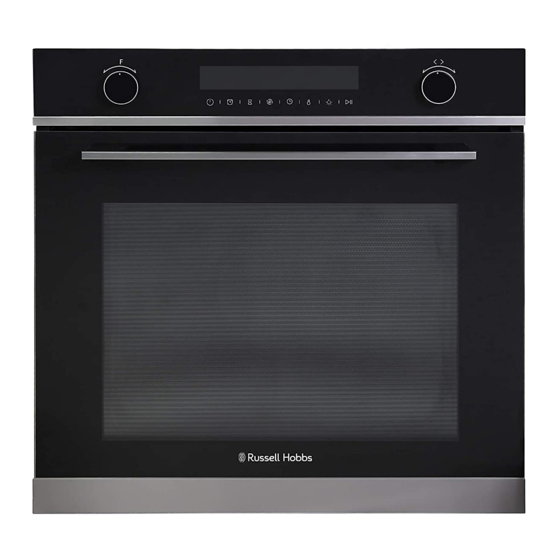

PRODUCT OVERVIEW 1. Oven function dial 6. Adjustment dial 2. Function touch control 7. 2 x Wire shelf 3. Handle 8. 1 x Universal tray & handle 4. Glass window 9. 1 x Wire rack 5. Display 10. 2 x Fixing screws Unit &... -
Page 7: Positioning
POSITIONING • This appliance is to be installed under a countertop or in cabinets. • Avoid damaging the product during installation. • The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works correctly when installed. -
Page 8: Installation
INSTALLATION Preparation & Installation Ensure that there are no electric wires, gas or water pipes in the area where holes are to be made. Components of the appliance may have sharp edges. Wear protective gloves. 1. Ensure that there will be an electrical power point within adequate distance of the oven after it has been installed. - Page 9 INSTALLATION Electrical Connection • WARNING - THIS APPLIANCE MUST BE EARTHED • This appliance is designed to be connected to a 220-240V~50Hz AC electricity supply. • Before proceeding with the electrical connection, verify that the current carrying capacity of the system and the isolator / main switch is adequate for the maximum power rating of the oven.
-
Page 10: How To Use Your Oven
HOW TO USE YOUR OVEN Control Panel The appliance has an oven function dial, adjustment dial, a display, and function buttons. See explanations below: 2 3 4 5 6 7 Oven function dial Turn to change the oven function On / Off Powers the oven on and off Timer / Child lock Timer function / Child lock (touch &... - Page 11 HOW TO USE YOUR OVEN Display This will show the time, function icons, and other information. Oven Function Dial The oven function dial allows you to set the oven function mode for the oven. The dial can be turned clockwise or anti-clockwise to set the required oven function.
- Page 12 HOW TO USE YOUR OVEN The Oven Cavity • The oven light is located in the cooking compartment. During oven operation, the oven light is on (unless turned off manually using the light on/off button), except for the ECO oven function. The light will go off 5 seconds after the ECO function has been started.
- Page 13 HOW TO USE YOUR OVEN Setting the Clock When the oven is first connected to the electrical supply and powered on, the clock will need to be set. The display will automatically show the time as “00:00“ and there will be a single beep. Note: Ensure the correct time is set before using the oven.
- Page 14 HOW TO USE YOUR OVEN Types of Heating Modes This oven has a number of modes. Below is an overview to enable you to find the suitable heat settings required for certain dishes/cooking. Temperature Symbol Function Range Top & Bottom Heating: Heat is emitted evenly from the top and bottom elements, which work together to provide convectional cooking.
- Page 15 HOW TO USE YOUR OVEN Temperature Symbol Function Range Double Grill with Fan: The fan distributes the heated air around the food. The grill element and fan switch on and off alternately. 50°C - 250°C Hot air grilling is particularly suitable for grilling fish, poultry and larger pieces of meat.
- Page 16 HOW TO USE YOUR OVEN Note: • If the oven door is opened in the middle of a cooking program, the program will not be paused. Please be careful with the high temperature. • Do not cover the ventilation slots to avoid the oven to overheating. •...
- Page 17 HOW TO USE YOUR OVEN Quick Pre-Heat 1. This oven comes with a quick preheat function to enable the preheat time to be shortened. This function can only be used when an oven function and temperature have been selected first. 2.
- Page 18 HOW TO USE YOUR OVEN Cooking Duration Time This function is used when you want to cook for a desired time range. The maximum cooking period is 9 hours. The food that is to be cooked needs to be put into the oven. 1.
- Page 19 HOW TO USE YOUR OVEN Cooking End Time This function is used to cook according to a desired finishing time. The food that is to be cooked needs to be put into the oven. 1. Set the cooking duration time by following the instructions laid out on the previous page.
- Page 20 HOW TO USE YOUR OVEN Energy Saving The following advice is to help you save energy: • Only preheat the oven if this is specified in the recipe. • Open the oven door as infrequently as possible. • Use black enamelled baking trays, tins etc., as they absorb the heat well. •...
- Page 21 HOW TO USE YOUR OVEN Accessories WARNING: • Correct placement of the shelves between the side supports is imperative. This will ensure that food does not fall off or slide out when in the oven or being carefully removed from the oven. •...
- Page 22 HOW TO USE YOUR OVEN Universal Tray – Use for cooking large quantities of food such as cakes, pastries, frozen food, etc. Can also be used under the wire rack to catch fat when grilling. Slide the baking tray into the oven with the sloping edge facing towards the oven door.
-
Page 23: Cleaning & Maintenance
CLEANING & MAINTENANCE Important Notes: • The appliance will become hot during operation, so allow the appliance to cool down before cleaning. • Do not use any high-pressure cleaners or steam cleaners. • Wash new sponge cloths thoroughly before use. •... - Page 24 CLEANING & MAINTENANCE How to Clean: • After each use, clean all surfaces once they have cooled down. If any residue is left (baked-on food, drops of grease etc.), however little, it will become stuck to the surface and more difficult to remove later. •...
- Page 25 CLEANING & MAINTENANCE • Very dirty door seal: If the door seal is very dirty, the appliance door will no longer close properly when the appliance is in use. The fronts of adjacent units could be damaged. Always keep the door seal clean. •...
- Page 26 CLEANING & MAINTENANCE Removing the Door Please remove the door by following the below steps: 1. Open the door fully, you will see the door hinges on either side of the door. The hinges have locking levers which will be in the closed position. 2.
- Page 27 CLEANING & MAINTENANCE Door Assembly To reattach the door, please follow the below steps: 1. When installing the door, you must make sure that both hinges at the bottom of the oven door are aligned and fully inserted with the 2 small holes at the bottom of the front panel on the oven.
- Page 28 CLEANING & MAINTENANCE Dismantling the Door The door can be dissembled for cleaning. Please follow the below steps: 1. Hold the door and press in the release buttons on both sides. Pull the top cover out. 2. Once the top cover is removed, the glass panels can be removed and cleaned.
- Page 29 CLEANING & MAINTENANCE Removing the Side Racks The side racks in the oven cavity can be removed for deep cleaning. Follow the below steps (ensure the oven & side racks are cold and not hot): 1. Carefully hold the side rack at its front (near where it is inserted into the oven cavity) and pull it away from the cavity.
-
Page 30: Trouble Shooting
TROUBLE SHOOTING Problem Possible Cause Solution The circuit break is Check circuit breaker is in working defective or turned order and that it is not switched No power Check whether other kitchen appliances are working or check in Power cut or faulty the fuse box to make sure that fuse the fuse for the appliance is... -
Page 31: Guarantee
GUARANTEE This product is guaranteed for 12 months from the date of the original purchase. If any defect arises due to faulty materials or workmanship you must contact Customer Services with the original proof of purchase so a replacement or refund can be arranged. Refund or replacement is at the discretion of Customer Services. -
Page 32: Product Information
PRODUCT INFORMATION Model Number RHEO7201DS Rated Voltage 220V – 240V ~ 50Hz - 60Hz External Dimensions (HxWxD) 596mm x 595mm x 546mm... -
Page 33: Notes
Notes... - Page 34 Notes...
- Page 35 Notes...
-
Page 36: Disposal Information
Russell Hobbs is a registered trademark used under license from Spectrum Brands (UK) Ltd. Made under license by G2S Limited, Wigan, WN2 4AY/G2S (NI) Ltd, Belfast, BT5 5AD. Russell Hobbs Support: call 0345 208 8750 or visit: mda.russellhobbs.com The ‘wheelie bin’ symbol is known as the 'Crossed-out wheelie bin Symbol'.
