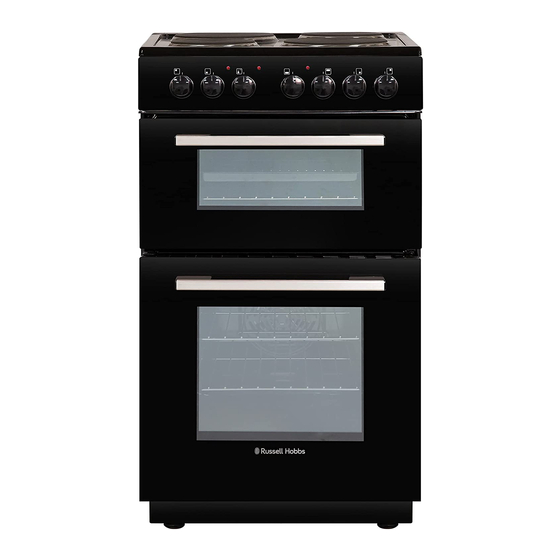

- Page 1 Multifunctional Electric Fan Double Oven Instruction Manual Model number: RH50ETCEH2001B For Customer Services & Spare Parts please call 0345 208 8750 or visit us at https://mda.russellhobbs.com IMPORTANT: RETAIN FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
CONTENTS Page(s) Safety instructions Installation & Positioning 8-13 Product Overview How To Use Your Oven 15-22 Cleaning & Maintenance 23-28 Trouble shooting 29-30 Guarantee Product Information Disposal information Notes Customer Service Information... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Important Note: Please read this booklet before installing and switching on this appliance. The manufacturer assumes no responsibility for incorrect installation and usage as described in this booklet. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand... - Page 4 SAFETY INSTRUCTIONS • This appliance can only be installed in a well-ventilated place in accordance with existing regulations and ventilation specifications. • This appliance is intended for domestic use and the household environment only. The appliance is not intended for use outside. •...
- Page 5 SAFETY INSTRUCTIONS • The grill pan or any other kind of baking tray should not be placed on the bottom of the oven cavities. • Alcoholic vapours may catch fire in the hot cooking compartments. Never prepare food containing large quantities of drinks with a high alcohol content. Only use small quantities of drinks with a high alcohol content.
- Page 6 SAFETY INSTRUCTIONS • This cooker is intended for heating food and beverages only. The drying of food or clothing, and heating of warming pads, wheat bags, slippers, sponges, damp cloths and similar is extremely dangerous & may lead to risk of injury, ignition or fire.
- Page 7 SAFETY INSTRUCTIONS WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Keep children less than 8 years of age away unless they are continually supervised. WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.
-
Page 8: Installation & Positioning
INSTALLATION & POSITIONING Preparation & Installation WARNING : This appliance must be installed by an authorised service person or qualified technician, according to the instructions in this guide and in compliance with the current local regulations. WARNING : Ensure that there are no electric wires, gas or water pipes in the area where holes are to be made. - Page 9 INSTALLATION & POSITIONING WARNING : THIS APPLIANCE MUST BE EARTHED. • Before connecting the appliance to the power supply, the voltage rating of the appliance (marked on the rating label) must be checked for correspondence to the available mains supply voltage, and the mains electric wiring should be capable of handling the appliance’s power rating (also marked on the rating label).
- Page 10 INSTALLATION & POSITIONING WARNING : THIS APPLIANCE MUST BE EARTHED. Green/Yellow (Earth) wire to the terminal marked "PE". Brown (Live) wire to the terminal marked "L". Blue (Neutral) wire to the terminal marked "N".
- Page 11 INSTALLATION Installing the appliance: 1. Ensure that there will be an electrical power point within adequate distance of the oven after it has been installed. 2. Ensure the space where the appliance will be situated measures at least (W)495 x (D)650mm, and is in compliance with the instructions on the previous page.
- Page 12 INSTALLATION & POSITIONING Anti-Tilting Kit: • The appliance comes with an anti-tilting kit in the document bag. • This is to ensure that the oven is secure and will not fall over due to poor balance. • Loosely attach the anti-tilting bracket (1) to the wall using the screw (2) and wall plug (3), following the measurements and directions shown below.
- Page 13 INSTALLATION & POSITIONING Adjusting the Feet: • Your product stands on four adjustable feet. • For safe operation, it is important that your appliance is correctly balanced. • Make sure the appliance is level prior to cooking. • To increase the height of the appliance, turn the feet anti-clockwise. To decrease the height of the appliance, turn the feet clockwise (as seen in the diagram below).
-
Page 14: Product Overview
PRODUCT OVERVIEW Top View: Front View: 1. Cooktop with 4 hotplates 7. Small hotplate 2. Control panel 8. Adjustment Dials 3. Grill compartment 9. 3 x Wire shelf 4. Oven Compartment 10. Anti-tilting kit 5. Door handle 11. Grill pan with handle 6. -
Page 15: How To Use Your Oven
HOW TO USE YOUR OVEN Control Panel The appliance has seven dials. See explanations below: Top Left Hotplate Dial Turn to change the temperature of the hotplate Bottom Left Hotplate Dial Turn to change the temperature of the hotplate Oven Temperature Dial Dial to alter the temperature of the oven Oven Function Dial Dial to change the function of the oven... - Page 16 HOW TO USE YOUR OVEN Hotplates • The hotplates are controlled by dials with 6 positions, and can be operated by switching a control dial to one of these positions. • Near each hob control dial, there is a small symbol that shows which hotplate is controlled by that dial.
- Page 17 HOW TO USE YOUR OVEN WARNING: When a hotplate is in operation, make sure that the pan is centred correctly on it. • Never use a pan with a smaller or larger diameter than that of the hotplate as this will waste energy. •...
- Page 18 HOW TO USE YOUR OVEN Bottom Oven Cavity • The bottom oven cavity has 3 different functions available, which are listed and explained in table on the next page. These can be set by turning the dial labelled 4 (page 14). •...
- Page 19 HOW TO USE YOUR OVEN Types of Heating Modes This oven has a number of modes. Below is an overview to enable you to find the suitable heat settings required for certain dishes/cooking. Top Oven Cavity: Temperature Symbol Function Range Grill: The whole area below the grill heating element becomes hot.
- Page 20 HOW TO USE YOUR OVEN Accessories WARNING: • Correct placement of the shelves between the side supports is imperative. This will ensure that food does not fall off or slide out when in the oven or being carefully removed from the oven. •...
- Page 21 HOW TO USE YOUR OVEN The wire shelves can be pulled out halfway until they are locked in place. The locking function prevents the shelves from tilting when they are pulled out. The wire shelves must be inserted into the cavity correctly to avoid tilting. When inserting the wire rack, please make sure the wire rack is as shown on the illustration below.
- Page 22 HOW TO USE YOUR OVEN Energy Saving The following advice is to help you save energy. When using your oven: • Only preheat the oven if this is specified in the recipe. • Keep the pre-heating time short. • Open the oven door as infrequently as possible. •...
-
Page 23: Cleaning & Maintenance
CLEANING & MAINTENANCE Important Notes: • The appliance will become hot during operation, so allow the appliance to cool down before cleaning. • Do not use any high-pressure cleaners or steam cleaners. • Wash new sponge cloths thoroughly before use. •... - Page 24 CLEANING & MAINTENANCE How to Clean: • To clean the hotplates, wait until they have cooled. Then, wipe the hotplate with a soft cloth soaked in water, and then run the hotplate for a short time to dry it completely. •...
- Page 25 CLEANING & MAINTENANCE • Very dirty door seal: If the door seals are very dirty, the appliance doors will no longer close properly when the appliance is in use. The fronts of adjacent units could be damaged. Always keep the door seals clean. •...
- Page 26 CLEANING & MAINTENANCE Removing the Door Before you can deep clean the oven glass door, you must remove the oven door by following the steps below. 1. Open the door fully, you will see the door hinges on either side of the door. The hinges have locking levers which will be in the closed position.
- Page 27 CLEANING & MAINTENANCE Door Assembly To reattach the door, please follow the below steps: 1. When installing the door, you must make sure that both hinges at the bottom of the oven door are aligned and fully inserted with the 2 small holes at the bottom of the front panel on the oven.
- Page 28 CLEANING & MAINTENANCE To replace the inner glass: 1. Push the glass towards and under the location bracket (y), in the direction of 2. Place the glass under the location bracket (X) in the direction of C. If the oven door is a triple glass oven door, the third glass layer can be removed the same way as the second glass layer.
-
Page 29: Trouble Shooting
TROUBLE SHOOTING Problem Possible Cause Solution The circuit break is Check circuit breaker is in working defective or turned off order and that it is not switched The hob or oven cavities can’t be Check whether other kitchen switched on Power cut or faulty appliances are working or check in fuse... - Page 30 TROUBLE SHOOTING Problem Possible Cause Solution Check that the temperature has been set correctly and/or adjust the shelf positions Cooking is Location of the uneven within Do not frequently open the door shelves are incorrect the oven or food unless you are cooking things that is being burnt need to be turned.
-
Page 31: Guarantee
GUARANTEE This product is guaranteed for 12 months from the date of the original purchase. If any defect arises due to faulty materials or workmanship you must contact Customer Services with the original proof of purchase so a replacement or refund can be arranged. Refund or replacement is at the discretion of Customer Services. -
Page 32: Product Information
PRODUCT INFORMATION Model Number RH50ETCEH2001B Rated Voltage 230V ~ 50Hz External Dimensions(HxWxD) 895m x 495mm x 650mm Disposal of your old machine • This symbol on the product or on its packaging indicates that this product should not be treated as household waste. Instead it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment. -
Page 33: Notes
NOTES... -
Page 34: Customer Service Information
For Customer Services & Spare Parts please call 0345 208 8750 or visit us at https://mda.russellhobbs.com Revision 1.4 This symbol is known as the 'Crossed-Out Wheelie Bin Symbol'. When this symbol is marked on a product/batteries, it means that the product/batteries should not be disposed of with your general household waste.
