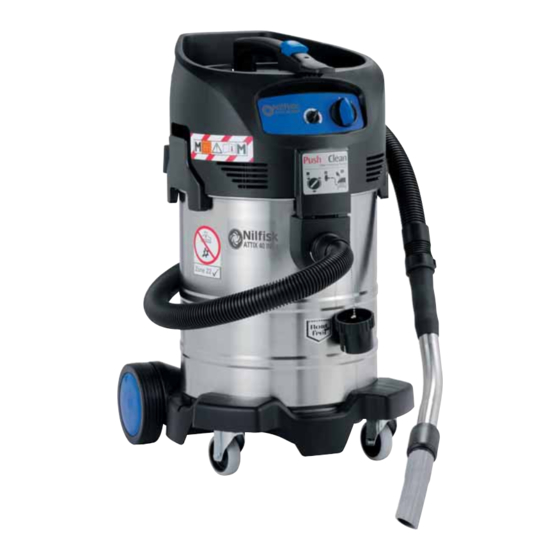

Nilfisk-Advance ATTIX 40-0M PC TYPE 22 Instructions For Use Manual
  1. Manuals
  2. Brands
  3. Nilfisk-Advance Manuals
  4. Vacuum Cleaner
  5. ATTIX 40-0M PC TYPE 22
  6. Instructions for use manual

Nilfisk-Advance ATTIX 40-0M PC TYPE 22 Instructions For Use Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ATTIX 40-0M PC TYPE 22
Instructions for use
107400339 D (06. 2017)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATTIX 40-0M PC TYPE 22 and is the answer not in the manual?

Questions and answers

Related Manuals for Nilfisk-Advance ATTIX 40-0M PC TYPE 22

Summary of Contents for Nilfisk-Advance ATTIX 40-0M PC TYPE 22

  • Page 1 ATTIX 40-0M PC TYPE 22 Instructions for use 107400339 D (06. 2017)

  • Page 2: Table Of Contents

    ATTIX 40-0M PC TYPE 22 Contents Important safety instructions ....................2 Description Operating elements ..............7 Operating panel ..............7 Before starting the Assembling the vacuum cleaner ..........8 cleaner 3.1.1 Taking accessories out of the packaging ......8 3.1.2 Attaching the suction pipe holder to the suction pipe ..8...
  • Page 3 ATTIX 40-0M PC TYPE 22 1 Important safety instructions Symbols used to mark Prior to using the appliance for the first time, be sure to read instructions this document through and keep it ready to hand. DANGER Danger that leads directly to serious or irreversible injuries, or even death.
  • Page 4 The air flow in Safety Vacuum systems has to be strictly controlled to achieve a minimum flow rate of V = 20 m/s in the suction hose. The vacuum cleaner ATTIX 40-0M PC TYPE 22 is suitable for pick- ing up: • Non flammable liquids (flashpoint 55 °C or higher) •...
  • Page 5 ATTIX 40-0M PC TYPE 22 Electrical connection 1. It is recommended that the vacuum cleaner should be connected via a residual current circuit breaker. 2. When picking up flammable dust in zone 22, extension lines, couplings and adapters must not be used.
  • Page 6 ATTIX 40-0M PC TYPE 22 Risks Electrical components DANGER Electric shock due to faulty mains connecting lead. Touching a faulty mains connecting lead can result in serious or even fatal injuries. 1. Do not damage the mains power lead (e.g. by driving over it, pulling or crushing it).
  • Page 7 ATTIX 40-0M PC TYPE 22 WARNING For dusts like titanium and magnesium additional requirements apply, consult your national labour authorities or the manufacturer of the vacuum cleaner. Spare parts and accessories CAUTION Spare parts and accessories. For picking up flammable dust in Zone 22: Only use accessories which are certified by the manufacturer of the Type 22 machine.

  • Page 8: Operating Elements

    ATTIX 40-0M PC TYPE 22 2 Description Operating elements Handle with receptacle for electrical lead Fixing point for suction pipe holder Retaining clamp Castor Dirt tank Inlet fitting Applicance switch Hose diameter setting Operating knob for filter cleaning Operating panel...

  • Page 9: Assembling The Vacuum Cleaner

    ATTIX 40-0M PC TYPE 22 3 Before starting the cleaner Assembling the 1. Take vacuum cleaner and vacuum cleaner accessories out of the pack- 3.1.1 Taking accessories out aging. of the packaging 2. The mains plug should not yet be inserted into a socket.

  • Page 10: Insert The Disposal Bag

    ATTIX 40-0M PC TYPE 22 Before picking up dust with occupational exposure limit values: 1. Check that all the filters are present and properly fitted. 2. Do not use the cleaner with damaged or missing antistatic clamp. Risk of explosion due to static discharge in explosive atmos- pheres.

  • Page 11: Inserting The Filter Bag

    ATTIX 40-0M PC TYPE 22 Inserting the filter bag 1. The mains plug should not yet be inserted into a socket. 2. Open the retaining clamps (A) and remove the up- per section of the vacuum cleaner. 3. Insert the filter bag into the dirt tank.

  • Page 12: Connections

    ATTIX 40-0M PC TYPE 22 4 Control / Operation Connections 1. Connect the suction hose. 4.1.1 Connecting the suction hose 4.1.2 Electrical connection 1. Ensure that the cleaner is switched off . 2. Insert the power cord into a The operating voltage shown on the...

  • Page 13: Check The Volume Flow Monitor

    ATTIX 40-0M PC TYPE 22 Cleaning the filter element " Push&Clean System " Filter Cleaning System Only for vacuum cleaning without a filter bag and without a cloth insert filter. If suction performance drops: 3. Press the button to start filter 1.

  • Page 14: Techniques

    ATTIX 40-0M PC TYPE 22 5 Applications and techniques Techniques If used correctly, additional accessories, suction nozzles and suc- tion hoses can enhance the cleaning action and reduce the cleaning effort. Effective cleaning is achieved if you follow just a few guidelines in combination with your own practical experience in special fields.

  • Page 15: Switching The Vacuum Cleaner Off And Storage

    ATTIX 40-0M PC TYPE 22 6 After finishing work Switching the vacuum 1. After picking up hazardous cleaner off and storage dust, vacuum clean the out- side of the cleaner. 2. Switch off the cleaner and pull the mains plug out of the socket.

  • Page 16: Maintenance Plan

    ATTIX 40-0M PC TYPE 22 7 Maintenance Maintenance plan After finishing work When required 7.2.1 Emptying dirt tank  7.2.2 Replacing the disposal bag  7.2.3 Replacing the filter bag  7.2.4 Replacing filter element (Push&Clean)  7.2.5 Replacing motor cooling filter ...

  • Page 17: Replacing The Disposal Bag

    ATTIX 40-0M PC TYPE 22 7.2.2 Replacing the disposal 1. Switch vacuum cleaner and pull the mains plug out of the socket. 2. Open retain- During the following work, en- ing clamps (A) and re- sure that dust is not unnecessarily move the upper section spread around.

  • Page 18: Replacing The Filter Bag

    ATTIX 40-0M PC TYPE 22 7.2.3 Replacing the filter bag 1. Switch off the vacuum clean- er and pull the mains plug out of the socket. During the following work, en- 2. Open the retaining clamps sure that dust is not unnecessarily (A) and remove the upper spread around.

  • Page 19: Replacing Filter Element (Push & Clean System)

    ATTIX 40-0M PC TYPE 22 7.2.4 Replacing filter element 1. Switch vacuum (Push & Clean System) cleaner and pull the mains plug out of the socket. 2. Open the retaining clamps During the following work, en- (A) and remove the up-...

  • Page 20: Replacing The Motor Cooling Filter

    ATTIX 40-0M PC TYPE 22 7.2.5 Replacing the motor 1. Remove filter cartridge. cooling filter During the following work, en- sure that dust is not unnecessarily spread around. Wear a P2 breath- ing mask. Never use the vacuum cleaner with- out a filter.
  • Page 21 ATTIX 40-0M PC TYPE 22 8 Troubleshooting Fault Cause Remedy ‡ Motor does not start > Fuse of the mains socket has • Connect mains fuse blown > Overload protection switch • Switch off the vacuum cleaner has tripped and allow it to cool for approx.

  • Page 22: Recycling The Cleaner

    ATTIX 40-0M PC TYPE 22 9 Further information Recycling the cleaner Make the old cleaner unusable immediately. 1. Unplug the cleaner. 2. Cut the power cord. 3. Do not discard of electrical appliances with household waste. As specified in European Directive 2012/19/EU on old elec- trical and electronic appliances, used electrical goods must be collected separately and recycled ecologically.

  • Page 23: Technical Data

    ATTIX 40-0M PC TYPE 22 Technical data ATTIX 40-0M PC TYPE 22 - EU - Voltage Mains frequency Fuse Power consumption 1100 ATTIX 40-0M PC TYPE 22 Total connected load 1100 ³ Air flow rate l/min 3200 hPa/mbar Vacuum Sound pressure level at a distance of 1 m, EN dB(A) 63 ±...
  • Page 24 HEAD QUARTER GERMANY PERU TURKEY Nilfi sk GmbH Nilfi sk S.A.C. Nilfi sk A.S. DENMARK Guido-Oberdorfer-Straße 2-10 Calle Boulevard 162, Of. 703, Lima 33- Serifali Mh. Bayraktar Bulv. Sehit Sk. No:7 Nilfi sk A/S 89287 Bellenberg Perú Ümraniye, 34775 Istanbul Kornmarksvej 1 Tel.: (+49) (0)7306/72-444 Lima...
