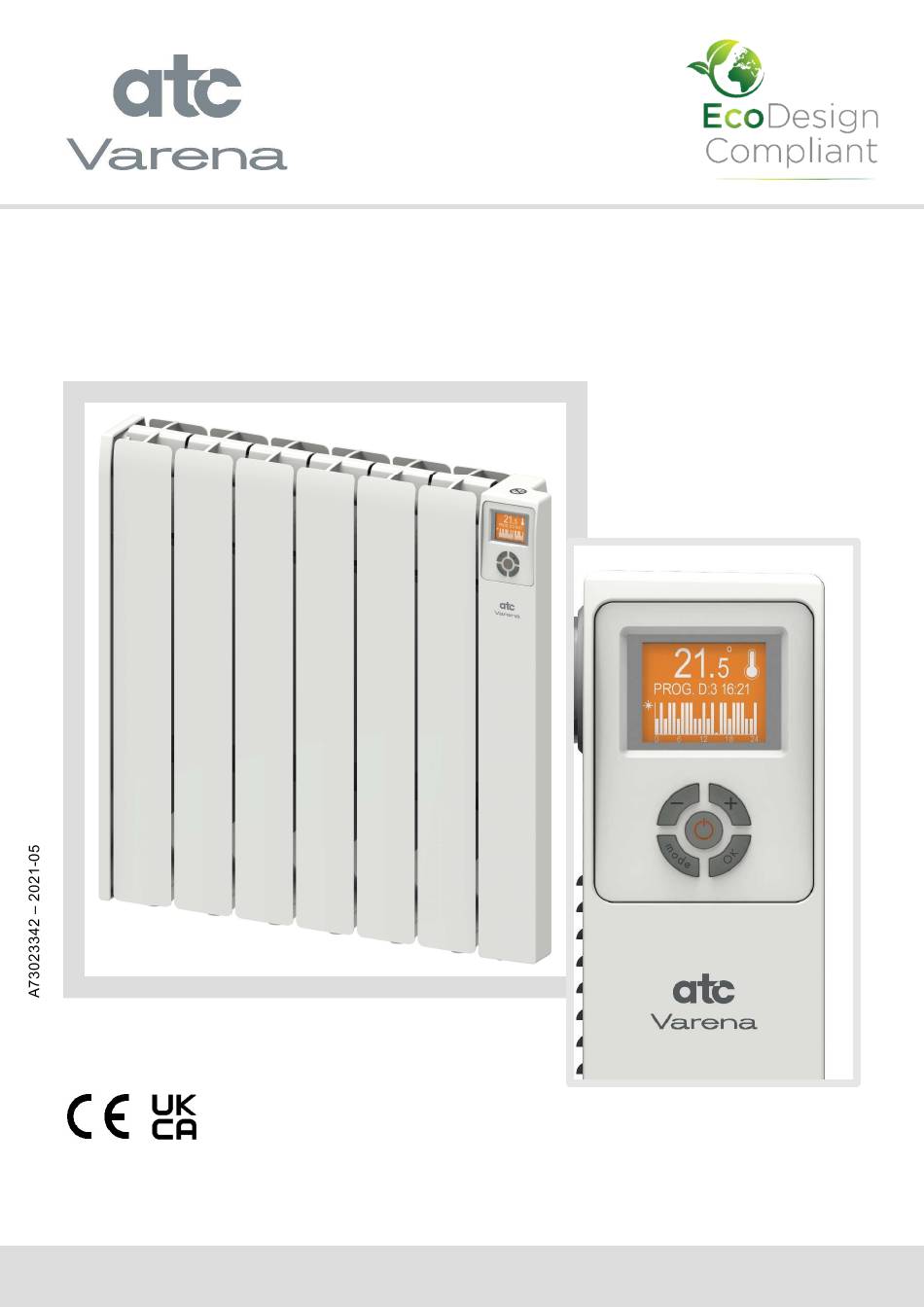

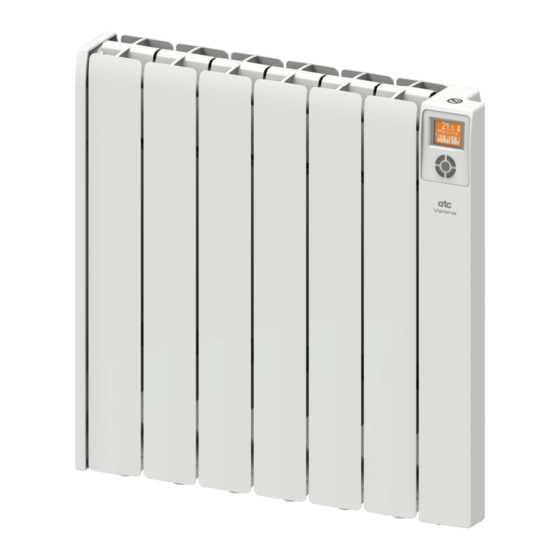

Page 1: Varena
VARENA Digital Electric Radiators – Daily and weekly programming INSTRUCTIONS FOR USE & INSTALLATION... - Page 3 - This heating apparatus holds a specific amount of special oil. Repairs where it is necessary to open the oil tank, must only be made by the manufacturer or ATC. ATC should be contacted in case of any oil leakage.
- Page 4 Pay particular attention when children and vulnerable people are present. - If the radiator is discarded, ensure it is recycled responsibly and follow any local provisions concerning recycling of oil. - A Safety Data Sheet is available from sales@atc.ie request. A73023342...
- Page 5 For more detailed information on the collection systems available, contact the local collection facilities or the distributor where you made your purchase. Packing List: Varena Radiator Metal Brackets Plastic Covers (top) Locking Plastic Covers Grey Wall plugs Hex-Head Fixings Please contact sales@atc.ie any of the above are missing. A73023342...
-
Page 6: Table Of Contents
VARENA Contents VARENA ............................1 INTRODUCTION ........................7 LOCATION ........................... 7 ELECTRICAL CONNECTION ....................7 MOUNTING .......................... 8 OPERATION ........................10 5.1. Control panel ......................10 5.2. Turning the radiator on and off ................11 5.3. Operating modes ....................11 5.4. -
Page 7: Introduction
DIGITAL ELECTRIC RADIATORS 1. INTRODUCTION Dear customer, Thank you for choosing ATC VARENA electric radiators, with their modern design, state-of-the- art technology, great reliability and great quality construction. ATC VARENA electric radiators and all their materials and components have passed strict controls to ensure their quality. -
Page 8: Mounting
3. Mark the small hole in the metal brackets on the wall with a pencil. These two marked points determine the position of the two lower drill holes. Model A (mm) VARENA 500 VARENA 750 VARENA 1000 VARENA 1200 VARENA 1500... - Page 9 VARENA 5. Drill the 4 marked holes. The grey plugs supplied require an 8 mm hole. 6. Insert the grey plugs into the pre-drilled holes. Screw the metal brackets to the wall with the screws provided. 7. Attach the plastic pieces to the metal brackets: STOP 8.
-
Page 10: Operation
VARENA 9. To detach the heater from the bracket: 1) Push the plastic bracket away from the metal bracket. 2) Lift the plastic bracket and pull the base of the heater forward away from the metal bracket. 5. OPERATION 5.1. Control panel The control panel is composed of a large TFT-LCD screen with orange backlight and white images for ease of legibility, and five keys as outlined below:... -
Page 11: Turning The Radiator On And Off
VARENA 5.2. Turning the radiator on and off Once the radiator is connected to the power supply (230 V ~ 50 Hz), the radiator is turned on by the switched spur; the standby icon or current operating mode will appear on the display. It is turned off by the switched spur. - Page 12 VARENA Economy mode is used for short absence periods to prevent the temperature from falling excessively. MODE ANTI-FROST: In this mode, the temperature setting is 7 °C and is factory set. Anti-frost is usually used as an off set point and for long periods of absence when you want to avoid freezing.
-
Page 13: Temperature Display
VARENA 5.4. Temperature display The room temperature is normally displayed on the TFT display. The set point temperature is only displayed when the user attempts to change it; after the setting has been adjusted the display will revert to the room temperature: The comfort and eco set point temperatures can be modified both from comfort and economy modes. -
Page 14: Manual Mode
VARENA On the left axis of the bar chart are the 3 mode icons; the mode chosen for the interval being programmed also flashes at the same time as the bar. To change the mode (comfort, economy, Off) of each interval, press the mode key. To move to the next or previous hour, press + or - respectively. -
Page 15: Open Window Function
VARENA shown when forcing the heating on. Although you cannot change the set time, it is possible to change the set point temperature during the operation of manual mode using the - and + keys. Once the set time has elapsed, the radiator will automatically return to the previous mode of operation. -
Page 16: Keyboard Lock
This type of marking is expressly due to failure to keep the heater and surrounding area clean. ATC take no responsibility for any such damage caused. A73023342... -
Page 17: Characteristics Table
Room temperature control, with open window detection Other control options With adaptive start control ATC Electrical & Mechanical ATC House, Broomhill Drive, Tallaght, D24 EF99, IRELAND T: 00 353 1 4678 301 UK T: 0203 564 9164 F: 00 353 1 4520 887 Email: sales@atc.ie... - Page 18 VARENA NOTES _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _______________________________________________________________ A73023342...
- Page 19 A73023342...
-
Page 20: Warranty
- The consumer must inform ATC of the lack of conformity of the goods, in a period of less than two months of them learning of it. The warranty does not cover incidents caused by: - The power supply of insufficient capacity or equipment with generators or any other system that is not a stable power supply.
