Summary of Contents for ATC Almeria DPH1000T

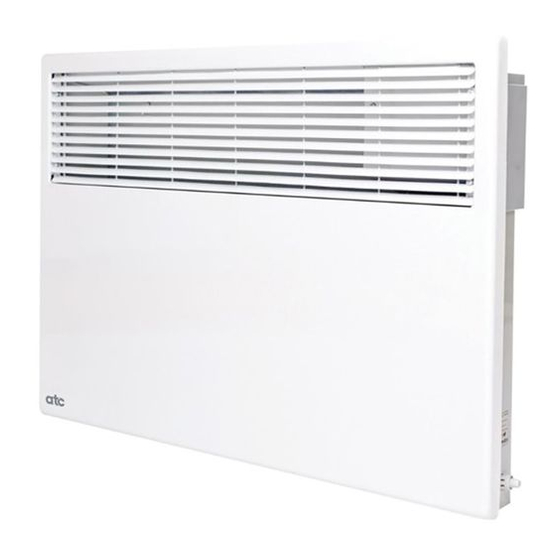

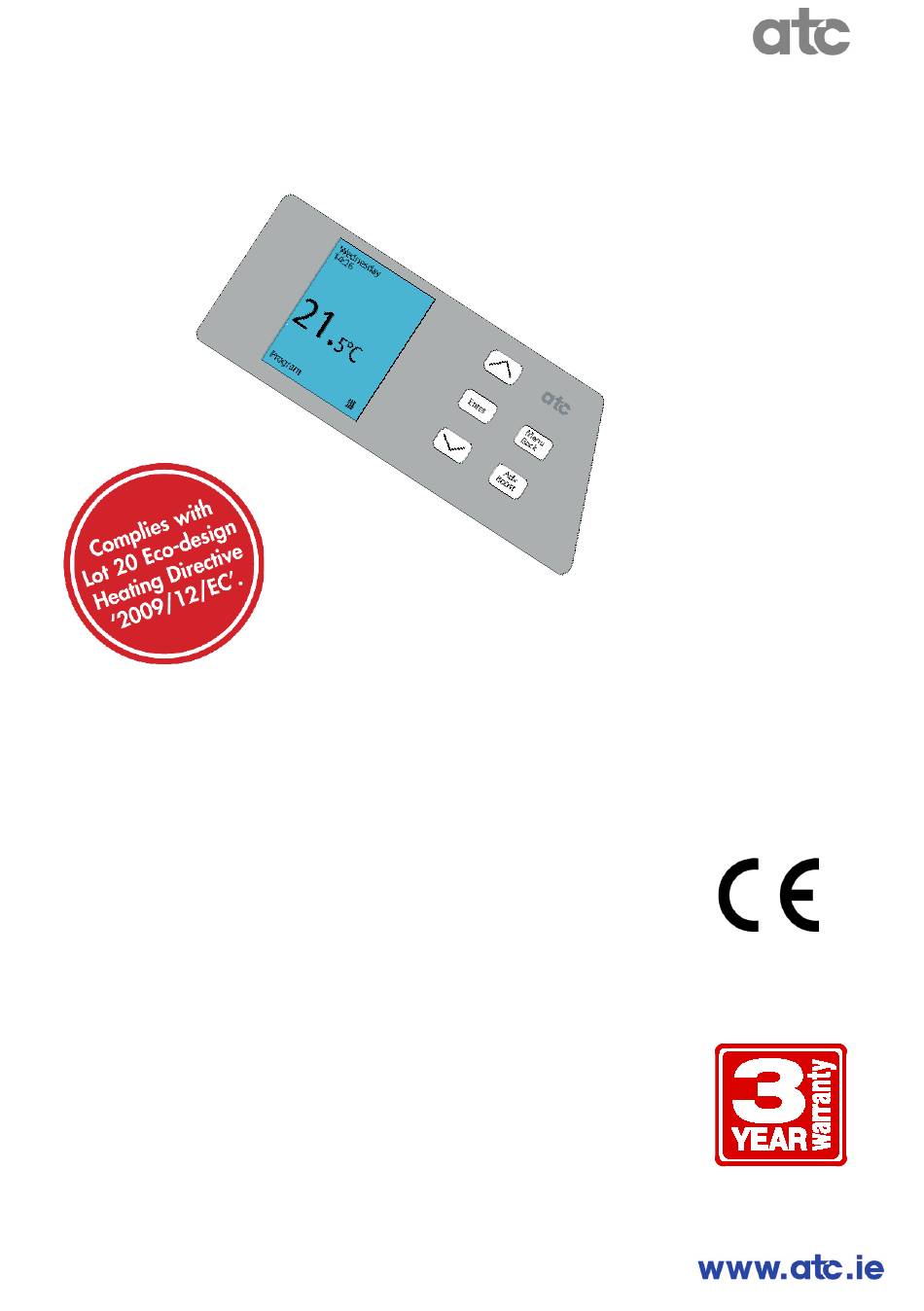

- Page 1 DPH1000T DPH1500T DPH2000T ATC Almeria Digital Class I - IP 20 Panel Heater 3 Year Warranty INSTALLATION, OPERATION & MAINTENANCE MANUAL...
-
Page 2: Important Safety Instructions
1. IMPORTANT SAFETY INSTRUCTIONS These instructions should be carefully read before installation and retained by the user. The booklet must be kept and delivered to the new user in case of disposal of the heater. The Manufacturer reserves the right to vary the features of the product without prior notice. -
Page 3: Electrical Installation Notes
10. Some fundamental rules which apply to all electrical devices must be observed when using the heater: Do not touch the heater with wet hands. • Do not handle the heater when you have bare feet. • Do not let children play with the heater. •... - Page 4 top of the heater and a ceiling or roof. The heater should be at least 60 cm away from any surrounding walls. • A distance of at least 100 cm should always be left in front of the heaters to •...
-
Page 5: Wall Mounting Instructions
3. WALL MOUNTING INSTRUCTIONS Remove the heater from the packaging and then disconnect the wall bracket from the back of the heater. Mark the wall according to the dimensions given below for the heater of your correct size. Drill the wall and insert the plastic wall anchors into the holes. Mount the wall bracket using the screws provided Hook Hook... - Page 6 Attach the heater to the wall bracket by aiming the 4 hooks on the bracket into the corresponding holes on the back of the heater. Insert the bottom two hooks first and then slide the top 2 hooks into position. The upper section of the wall bracket incorporates a locking tag which should be inserted into the hole on the back of the heater and tightened after the heater is mounted on the wall, see below...
-
Page 7: Daylight Savings (Dst Mode)
The Almeria digital panel is equipped with a TFT LCD screen and 5 touch sensitive buttons to allow easy programming. Start up The first time the heater is turned on it will ask for the date, the current time and if you want to activate the Daylight Savings function. -
Page 8: Settings Menu
Settings Menu The Almeria has been designed with an easy to ready English language menu system to allow the user to quickly understand the features of the heater and navigate around the menus. To access the settings menu on the heater touch the Menu/Back key and use the ▲&... -
Page 9: Setting The Temperatures
Setting the temperatures There are two adjustable temperature settings that can be individually set. These set points are used for the “on” and “off” settings for the heater. The Comfort setting is used for the room temperature that you want to maintain when the heater is on. -
Page 10: Entering A Program
Entering a program To enter a program into the Almeria heater bring up the settings menu from any of the operation screens, select Program menu and touch enter. When in the Program menu select Set Program and touch enter. The Almeria heater will ask the user to select the day that they want to program, use the ▲... -
Page 11: View Program
Copying a Program. Continued. Once you have selected the day you which to copy from, the screen will change to show the days that you can copy to. Select the individual day or a number of days to copy the program to. In the figure to the right the program shown on the previous page is copied to Monday, Tuesday and Friday. -
Page 12: Maintenance
Sound The Almeria panel heater will beep each time a key is touched. To turn to turn this sound off touch Enter and Adv. Boost at the same time. Each time the buttons are touched together will turn the sound on or off. &... -
Page 13: Ecodesign Table
Type of heat output/room temperature Electronic room temperature control plus week control: timer Other control options: Room temperature control, with open window detection ATC Electrical and Mechanical ATC House, Broomhill Drive, Tallaght, D24 EF99, Ireland. Tel: +353 (0)1 462 5111,... - Page 14 8. ENVIRONMENTALLY COMPATIBLE DISPOSAL OF THE APPLIANCE (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems). This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
- Page 15 NOTES Head Office & Energy Showrooms: ATC House, Broomhill Drive, Tallaght, Dublin 24, Ireland. Tel: +353 (0)1 467 8301 UK. Tel: +44 (0)203 564 9164 Email: sales@atc.ie www.atc.ie...
