ATC Electrical & Mechanical
ATC House Broomhill drive
Tallaght, Ireland
Tel: (IE) +353 (01) 4678301
Tel: (UK) +44 (0203) 564 9164
Fax: +353 (01) 4520887
Email: sales@atc.ie

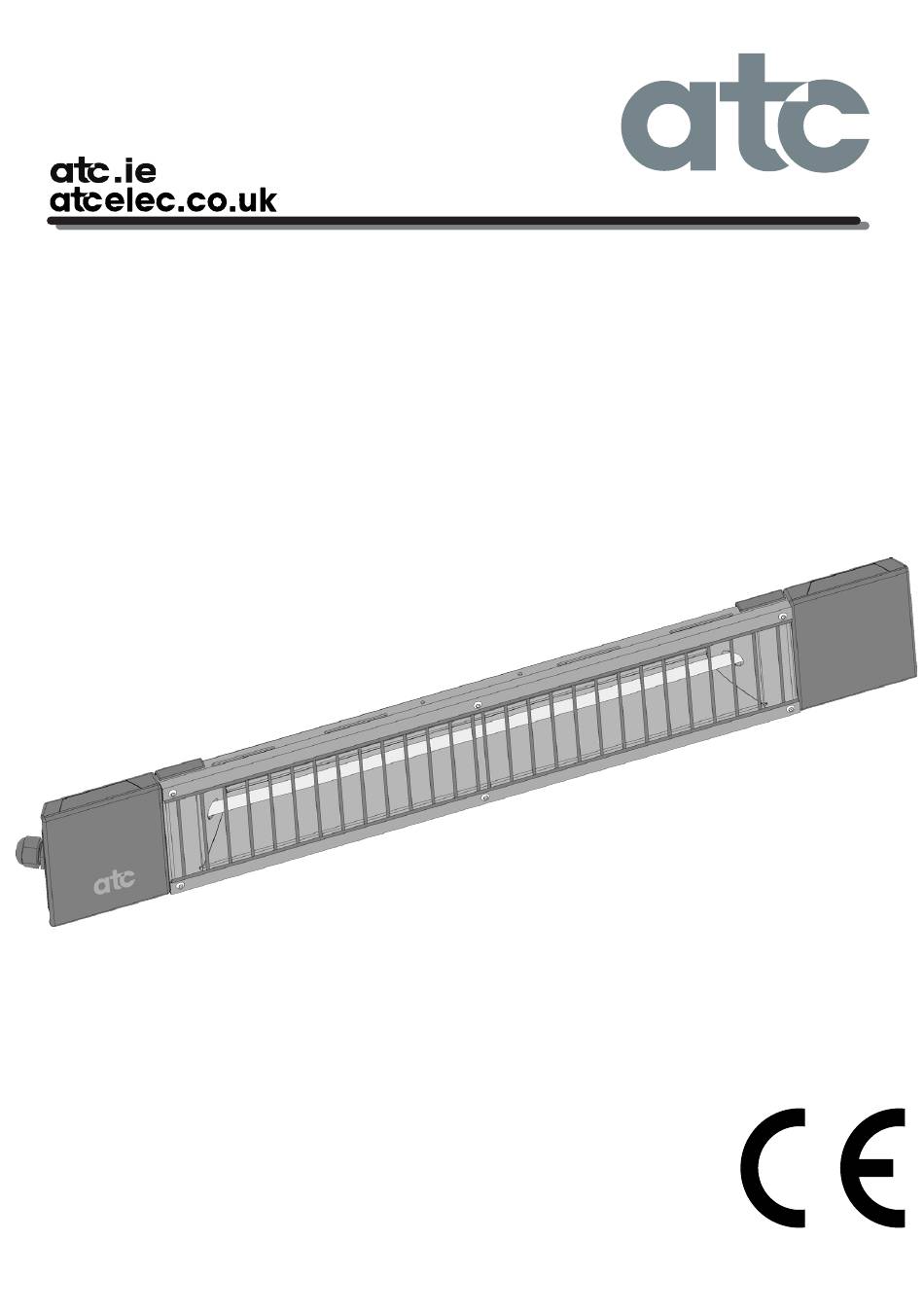

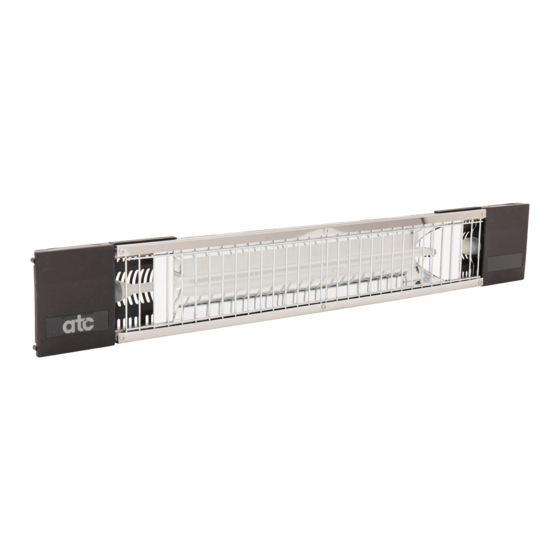

Alfresco Outdoor Heater
Alfresco Portable Outdoor Heater
HALOGEN QUARTZ INFRARED HEATER
INSTALLATION, OPERATION &
MAINTENANCE
MANUAL
Class I - IP 55
Advertisement
Related Manuals for ATC Alfresco ALH1800
Summary of Contents for ATC Alfresco ALH1800
- Page 1 ATC Electrical & Mechanical ATC House Broomhill drive Tallaght, Ireland Tel: (IE) +353 (01) 4678301 Tel: (UK) +44 (0203) 564 9164 Fax: +353 (01) 4520887 Email: sales@atc.ie Alfresco Outdoor Heater Alfresco Portable Outdoor Heater HALOGEN QUARTZ INFRARED HEATER INSTALLATION, OPERATION &...
- Page 2 1. IMPORTANT INFORMATION Instructions should be carefully read before installation and retained by the user. The booklet must be kept and delivered to the new user in case the unit is sold. The Manufacturer reserves the right to vary the features of the product without prior notice.
- Page 3 2. CAUTION REGARDING THE INSTALLATION OF THE APPLIANCE Installation should always be carried out by a qualified electrician or a competent person in accordance with the standards HD 384 CENELEC for Europe, or international IEC 60346-7-708 1988. The energy supply must be done through a properly grounded socket.
-
Page 4: Electrical Installation
3. ELECTRICAL INSTALLATION The Alfresco is an 1800 Watt radiant heater. There are 2 versions, one designed for permanent installation (ALH1800) and one designed for a portable application (ALH1800-PORT). The portable version comes with a switch and pre-connected cable with IP-Rated outdoor connector and is designed for use with the Alfresco Tripod and Alfresco Bracket. -
Page 5: Maintenance
Avoid exposing skin to the rays of the heater at distances less than 50cm. Avoid exposing eyes to the rays of the heater at distances less than 2.70m. All users should be made aware of all aspects of operation and safety and these instructions should be retained for reference. - Page 6 min 150 mm min 1000mm min 1000mm Fig. 1 Fig. 2...
- Page 7 Fig. 3 min 150 mm min 1000 mm Fig. 4...
-
Page 8: Pole Bracket Assembly
TRIPOD ASSEMBLY INSTRUCTIONS The Alfresco tripod is complete in the box, remove from the packaging and open the legs of the tripod to the white line and tighten the knob. If the tripod is to be permanently installed, fix the provided hook into a solid surface and attach the chain into the hook and tighten. - Page 9 Fig PB-3 Fig PB-4 Close the back of the bracket onto the Pole Fig PB-3 and insert the long screw with the knob through the back of the bracket and into the captive nut in the front half of the bracket. Tighten the knob until the bracket is fixed tightly in place Fig PB-4.
- Page 10 Do not open the connector when the heater is powered. Once the cable connection has been made the cable should be then tied to the pole below the connector with the other Velcro strip provided for this purpose. When disassembling the heater always remember to remove the cable from the pole prior to disassembly of the tripod and heater, damage may occur should the tripod be collapsed without removing the cable.
- Page 11 LAMPS ARE NOT COVERED UNDER THE MANUFACTURERS GUARANTEE. LAMPS ARE A CONSUMABLE ITEM. Any un-authorised repair or attempted repair will invalidate the guarantee. You may be asked to return the product to our workshop for inspection to establish whether the fault is covered under the guarantee. The guarantee is valid in the U.K.
- Page 12 This page left blank for your notes. Head Office & Energy Showrooms: ATC House, Broomhill Drive, Tallaght, D24 EF99 Ireland. Tel: 353 (1) 467 8301 U.K. Tel: 0044 (0)203 5649164 Email: sales@atc.ie 006584 - 06/2020...
