Hatco C-12 Specifications

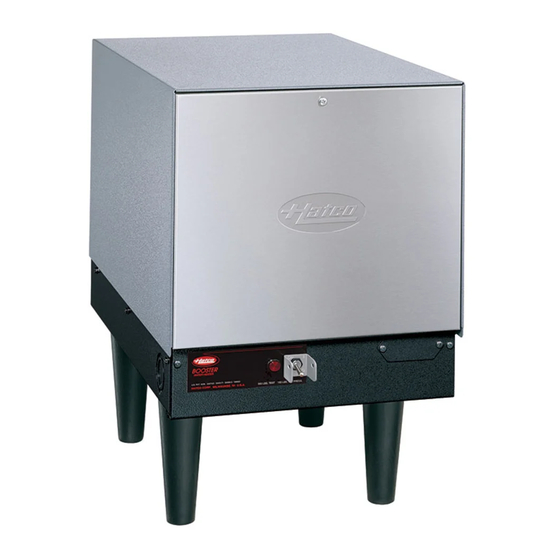

The Hatco Compact Electric Booster
Water Heater provides all the 180°F (82°C)
final rinse water required to sanitize and
flash-dry dishes and flatware.
FLEXIBILITY
The space saving Compact is easy to
install next to the dishwasher with slide
brackets or on 6" (152 mm) legs. The
storage capacity is 6 gallons (23 liters).
QUALITY
The following features assure the finest
performance for years to come:
• All models include a Castone
tank with a 10-year limited warranty.
• Features include a temperature/pressure
relief valve, a pressure reducing valve,
two temperature/pressure gauges, a
high-temperature limit control, pilot
indicator light, on-off switch, and a
low-water cut-off to prevent element
burnout due to a low water condition.
• Available with slide brackets for
mounting under a dishtable.
• Each booster has fiberglass insulation
to minimize heat loss.
• Hatco electric booster heaters are
factory pre-plumbed and pre-wired
with calibrated immersion thermostat
and high-temperature limit switch.
• A stainless steel front panel and
powder-coated silver-gray hammertone
body is standard on all Compact
models.
• Swing-away front panels with
low-water cut-off, control fuses
and transformer allow quick access
to probes and elements for easier
serviceability.
COMPACT
Models C-4, -5, -6, -7, -9, -12, -13, -15, -17, -18, -24, -27, -30, -36, -39, -45, -54, -57
® lined
WATER QUALITY REQUIREMENTS
Incoming water in excess of 3.0 grains of hardness per gallon (GPG) (.75 grains of
hardness per liter) must be treated and softened before being supplied to booster
heater(s). Water containing over 3.0 GPG (.75 GPL) will decrease the efficiency
and reduce the operating life of the unit.
Note: Product failure caused by liming or sediment buildup is not covered
HATCO CORPORATION P.O. Box 340500 Milwaukee, WI 53234-0500 U.S.A.
(800) 558-0607 • (414) 671-6350 • Fax (800) 543-7521 • Int'l. Fax (414) 671-3976
www.hatcocorp.com • E-mail: equipsales@hatcocorp.com
Form No. C-1006(S)
ITEM#
ELECTRIC BOOSTER WATER HEATERS
Model C-24 on
6" (152 mm) legs
Water Temperature Recovery Table
Compact Model 40°F (22°C) Rise
C-4 40 gph ( 151 Iph)
C-5 50 gph ( 189 Iph)
C-6 60 gph ( 227 Iph)
C-7 70 gph ( 265 Iph)
C-9 90 gph ( 341 Iph)
C-12 120 gph ( 454 Iph)
C-13 135 gph ( 511 Iph)
C-15 151 gph ( 572 Iph)
C-17 173 gph ( 655 Iph)
C-18 181 gph ( 685 Iph)
C-24 241 gph ( 912 Iph)
C-27 271 gph (1026 Iph)
C-30 301 gph (1139 Iph)
C-36 361 gph (1367 Iph)
C-39 391 gph (1480 Iph)
C-45 452 gph (1711 Iph)
C-54 542 gph (2052 Iph)
C-57 573 gph (2169 Iph)
under warranty.
Model C-18 on
6" (152 mm) legs
70°F (39°C) Rise
23 gph ( 87 Iph)
29 gph ( 110 Iph)
34 gph ( 129 Iph)
40 gph ( 151 Iph)
52 gph ( 197 Iph)
69 gph ( 261 Iph)
77 gph ( 292 Iph)
86 gph ( 326 Iph)
99 gph ( 375 Iph)
103 gph ( 390 Iph)
138 gph ( 522 Iph)
155 gph ( 587 Iph)
172 gph ( 651 Iph)
206 gph ( 780 Iph)
224 gph ( 848 Iph)
258 gph ( 977 Iph)
310 gph (1174 Iph)
326 gph (1234 Iph)
Printed in U.S.A.
