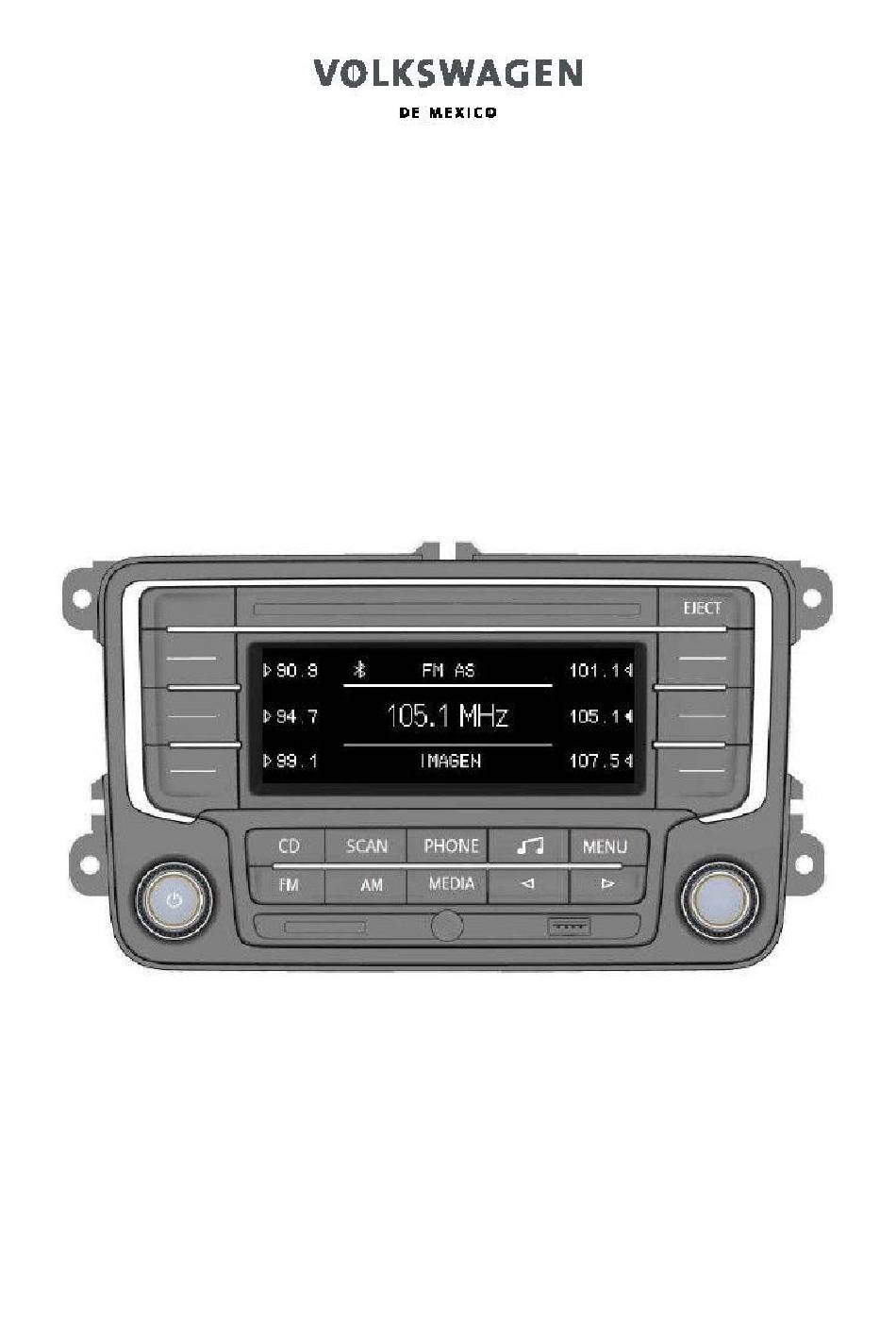

Prepared by Hector Gomez
HMI/ VWM DTEE / 52-222-2307414
DOC_HMI RADIO 2 DIN MIB-G LAM X1.8 revisada / 13/05/2011
Page 1 of 78
5C6.035.160
Reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5C6.035.160 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Volkswagen 5C6.035.160

Summary of Contents for Volkswagen 5C6.035.160

  • Page 1 5C6.035.160 Reference Prepared by Hector Gomez HMI/ VWM DTEE / 52-222-2307414 DOC_HMI RADIO 2 DIN MIB-G LAM X1.8 revisada / 13/05/2011 Page 1 of 78...

  • Page 2: Table Of Contents

    Contents 1. Anti-theft coding 2. Factory Mode (code bypass mode) 3. Radio ON/OFF 4. Radio Volume Adjustment 5. FM/AM Operation 6. CD Operation 7. MEDIA Operation 8. CD-MP3 / USB / SD Card Play Operation 9. AUX Operation 10. BT AUDIO Operation 11.

  • Page 3: Anti-Theft Coding

    1. Anti-theft coding Role of radio coding Removing the unit from the vehicle (for example, if you take your vehicle to the dealership for service and requires disconnecting the battery) will be necessary to recode the radio manually. If you install the radio in another vehicle, the recode also must be restored manually.
  • Page 4 Incorrect numeric code If you have accidentally entered a wrong number, “CODE 1 SAFE” will appear blinking in the display, then “CODE 1 1000”. You can repeat the process again. The number of attempts will be displayed. If you accidentally re-enter a wrong number again, “CODE 2 SAFE” will appear fixed on screen. The unit will be blocked per 1 hour.

  • Page 5: Factory Mode (Code Bypass Mode)

    2. Factory Mode (code bypass mode) In order to make it possible to check the unit and the periphery during the mounting at the assembly line, the unit can be unlocked by pressing the combination of keys. That sequence can be repeated up to 50 times. The unlock unit can play for a timeout of 15 minutes, after this time the unit locks again.
  • Page 6 mode. If radio has not been decoded before, code bypass mode is still allowed if the number of times code bypass used is < 50 times allowable limit. f. activate of Phone mode via analog mute input or CAN message, radio switches to Phone mode and upon terminating Phone mode, radio returns to current code bypass mode if still within 15 minutes of code-bypass operating time requirement, else radio goes to “1000”...

  • Page 7: Radio On/Off

    3. Radio ON/OFF Push left knob to switch radio ON/OFF. Without ignition key inserted (Kl.30: ON, Kl.15 & Contact S: OFF), push left encoder may switch on radio to work per 30 minutes, after 30 minutes, radio will power off automatically. Each time radio turns on, radio’s audio is started immediately (in the LSM) and user can do any adjustment.

  • Page 8: Radio Volume Adjustment

    4. Radio Volume Adjustment Rotating left knob may adjust radio volume level; radio will display the volume level bar per 5 seconds. Rotate clockwise, increase radio volume; Rotate anti-clockwise, decrease radio volume. For FM/AM modes: rotate the volume 0 will pause the music, so none additional function is allowed. For CD, SD card, USB, IPOD and Bluetooth Audio modes: rotate the volume 0 will pause the music (and the CD mechanism), so none additional function is allowed, muted speaker icon appears to the right in the upper line of display;...

  • Page 9: Fm/Am Operation

    5. FM/AM Operation 5.1 Band Select Non FM mode, short press HK [FM] button may switch to FM mode, short press again switch in order: FM 1 => FM 2 => FM AS => FM 1. In FM mode, if current station is stereo station, radio display “ST”...

  • Page 10: Fm1

    If none station is found, radio will display “NO STATION" per 2 seconds and then returns to the frequency where the searching started. In this case all memory presets remain as default defined. If less than 6 stations are found via auto store, for example only 4 stations are found and stored to the soft keys 1~4 in the AS bands, the other soft keys 5 and 6 will be displayed as “- - -“...

  • Page 11: Am As

    AM AS: ......P1=f1, P2=f2, P3=f3, P4= - - -, P5= - - -, P6= - - - Result 2 (example for an area with only 2 FM- and 1 AM-stations) FM1: ........P1=f1, P2=f2, P3 = f1, P4 = f2, P5 = f1, P6 = f2. FM2: ........

  • Page 12: Default Preset Memory Frequencies Fm

    Default preset memory frequencies AM Tuning Power Soft Soft Soft Soft Soft Soft (kHz) Key 1 Key 2 Key 3 Key 4 Key 5 Key 6 1050 1400 1710 AM AS 1050 1050 1400 1710 5.5 Scan Play Enable scan play function with sort press HK button.
  • Page 13 5.7 Preset Stations List Function not necessary. 5.8 Auto Seek Short pressbutton, radio will search the previous or next available station, radio will stop searching automatically and play the received station when it be found. If none station is found, then returns to the frequency where the searching started. 5.9 Target Seek button, the radio will decrease/increase fast the frequency, at momentKeep pressed to release the button, radio will search the previous or next available station and play the received station.

  • Page 14: Cd Operation

    6. CD Operation 6.1 CD insertion At moment to insert CD, the display will show READING all of the time until radio is ready to play and then changes to CD mode. In case to insert a CD upside-down, CD damaged, dirty or with wrong type like CD Data, the display will show CD ERROR per 2 seconds, the radio will eject this CD immediately and reverts to LSM CD Mechanism pick up temperature >...
  • Page 15 6.2 CD ejection At moment to eject the CD, the display does not make any indication and radio goes to LSM. The CD ejection must be possible without ignition key inserted (K15 and S-Contact signals OFF). If nobody takes out the CD after 10 seconds, radio will insert the CD automatically without change to CD mode. Radio is in FM mode and there is not a CD inserted, short press HK [ ] button, radio will display “NO CD”...
  • Page 16 Radio is in FM mode and there is not a CD inserted, short press HK [CD] button, radio will display “NO CD” per 2 seconds, radio output’s beep sound then mode reverts to LSM. 6.4 Track Up/Down Rotating right knob or short press left/right arrow button may select the previous or next track to play. If current track play time <=3 sec, short press the left arrow button or rotate right knob anticlockwise by one step, radio will play the previous track.
  • Page 17 Rotate right knob may browse the tracks, short press right arrow button or right knob may play the track focused on by the cursor (small filled triangle) and then radio resumes CD normal operation. Radio will display a slide bar if there are more than 4 tracks in the CD.
  • Page 18 Radio must play randomly all of the tracks in the CD, once all the tracks have been played, a new random track list must be generated. Short press HKbutton during MIX play, radio will advance the tracks randomly, the sequence is as follows: random track =>...
  • Page 19 SCAN indication is blinking each second in the display during the scanning. 6.9 Repeat Play Short press SK 6 [RPT] button, display will show the triangle filled next to RPT, it means REPEAT function has been activated. Radio will repeat the current track; it means if reach the track end, radio will play this same track from its beginning. Short press [RPT] button again in order to deactivate this function, display will show the empty triangle next to RPT, it means REPEAT function has been deactivated.
  • Page 20 The radio will display the information in order: Title => Artist => Album => Title... If the CD TEXT has not information, radio will not display any indication. Each time short press INFO button will change according to the information showed, the title, artist or album name must be scrolled if name length is too large, radio will display “TITLE, ARTIST or ALBUM”...
  • Page 21 6.11 Pause Rotate the volume 0 will pause the music (and the CD mechanism), so none additional function is allowed, muted speaker icon appears to the right in the upper line of display; resume music playback when increases the volume again (Play will resume at the site of activation of the pause), radio will display the volume level bar per 5 seconds.

  • Page 22: Media Operation

    7. Media Operation It is possible connect to the radio the following devices: • SD card • USB memory or iPod • AUX connection • Bluetooth audio device (A2DP profile) • Radio is in FM mode and previous mode was SD, SD card in slot. Short press [ ] button and then the radio audio source will change to SD mode;...
  • Page 23 If CD / USB / IPOD /SD card has not files, radio will display NO FILE per 2 seconds and radio reverts to LSM. If CD / USB / IPOD /SD card has files, but they are not supported by radio, radio will display NOT SUPPORT per 2 seconds and radio reverts to LSM.
  • Page 24 Radio is in FM mode and there is not a Media device connected, short press [MEDIA] button, the radio will display NO MEDIA, radio’s output beep sound and not interrupt FM audio output. 2 sec later, radio will show normal display FM information.

  • Page 25: Cd-Mp3 / Usb / Sd Card Play Operation

    8. CD-MP3 / USB / SD Card Play Operation 8.1 CD-MP3 / USB / SD Card Mode Select Select CD MP3 mode is same as 6.3 CD Mode select Select USB / SD card MP3 mode is same as 7. Media operation 8.2 CD-MP3 / USB / SD card indications In the upper line, display will show the mode and kind of file to play: CD MP3, CD WMA, USB MP3, USB WMA, SD MP3 or SD WMA.
  • Page 26 8.3 Track Up/Down ] buttons may select the previous or next file to play (files of all folders). Short press HK [ Rotating clockwise/counterclockwise right knob may select the previous or next file to play (files of all folders). If current file play time <=3 sec, short press the left arrow button or rotate right knob anticlockwise by one step, radio will play the previous file.
  • Page 27 Rotate the left knob may decrease/increase radio volume level, radio display remains without change (browse track list), display will not show the volume bar. 60 seconds no action, short press left arrow button or long press right knob will exit the browse list. Playback order of tracks 8.6 Fast Forward/Rewind Long press...
  • Page 28 Fast forward operation in the last file of current folder must stop at the end of this file and resume normal operation, otherwise fast forward operation will continue in all the files of current folder. The sound must be continuous all of the time (no intermittent) and display will show fast the time during fast rewind or fast forward playing.
  • Page 29 Short pressbutton during MIX play, radio will advance the tracks randomly, the sequence is as follows: random track => next random track => next random track => and so on, per example track 20 => 6 => 2 => 9 => 13 =>...
  • Page 30 Short press button, radio will cancel the scanning and will play the next track. 8.9 Repeat Play Short press in sequence SK [ ] button will switch in order: RPT Track -> RPT Folder -> RPT OFF The 1 short press [] button will enable track repeat function; radio will display “RPT” and show the filled triangle next to RPT, it means RPT function has been activated.
  • Page 31 If select to repeat file/track, radio will repeat the playing of current file/track, it means if reach the file/track end, radio will play this file/track from beginning. If select to repeat folder, radio will continue playing all of the files/tracks in current folder, it means if reach the end of last file/track in the current folder, radio will play the first file/track in the current folder.
  • Page 32 8.11 Scroll Display ID3 Radio will display the file ID3 information automatically, in case ID3 is long: scrolling complete information one time => 5 seconds showing only part of information => blank => scrolling complete information one time and so on. Per example: I’m happy just to dance with you.mp3 display scrolling complete information: I’m happy just to dance with you.mp3 (one time) display shows only part of information: I’m happy just to (per 5 seconds)

  • Page 33: Aux Operation

    9. AUX Operation 9.1 AUX Mode Select Select AUX mode is same as 7. Media operation 9.2 AUX operation If there is an AUX connection, radio will display “AUX”. The function allowed in this mode is volume up/down only. Prepared by Hector Gomez HMI/ VWM DTEE / 52-222-2307414 DOC_HMI RADIO 2 DIN MIB-G LAM X1.8 revisada / 13/05/2011 Page 36 of 78...

  • Page 34: Bt Audio Operation

    10. BT AUDIO Operation 10.1 BT AUDIO Mode Select Select BT AUDIO mode is same as 7. Media operation 10.2 BT AUDIO operation If there is a BT AUDIO connection, radio will display “BT AUDIO”. In case of cell phones with AVRCP 1.3 or higher, radio display will show Metadata information on the track itself (artist, track name, etc.).

  • Page 35: Ipod Operation

    11. IPOD Operation 11.1 IPOD Mode Select Select IPOD mode is same as 7. Media operation 11.2 IPOD indications After IPOD is connected to radio and read out, radio will play from the position where IPOD was connected. The initial status can be: IPOD play in playlists, artists, albums, songs, podcasts, genres, composers or audiobooks. Per example, these are some examples of IPOD indications.
  • Page 36 Rotating clockwise/counterclockwise right knob may select the previous or next file to play. If rotate knob continuously users can fast skip the tracks, the max fast skip track number is 5, and the 2 actions in 25 ms, it will be regard as 1 action. After the last file in current album / playlist / Songs, etc is completely played, radio will switch to the first file of this album / playlist / Songs, etc, radio will display the first file title.
  • Page 37 Short press right arrow button or right knob may play the track focused on by the cursor (small filled triangle) and then radio resumes normal operation. Radio will display a slide bar if there are more than 4 files in the songs / folders/categories. In browse list, short press left arrow button can revert to the parent directory.
  • Page 38 Fast forward operation in the last file of current folder or SONGS must stop at the end of this file and resume normal operation at the beginning of the first file of current folder or SONGS, otherwise fast forward operation will continue in all the other files of current folder or SONGS.
  • Page 39 Other mode to cancel the scanning is short press button during the 10 seconds of track playing (playback remains in this track).  If current track play time 3 sec, short press button during scanning, radio will cancel the scanning and will play the previous track.
  • Page 40 Short press SK [ ] button, radio will display the ID3 information in order: File => Title => Artist => Album => File... If the file/track has not ID3 information, radio will not display any indication. ] button will change according to the information showed, radio will displayEach time short press SK [ “FILE, TITLE, ARTIST or ALBUM”...
  • Page 41 BYE****.MP3 BYEΨωφ .MP3 For some strange characters, radio will display “*”; example: 11.11 Scroll Display ID3 Radio will display the file ID3 information automatically, in case ID3 is long: scrolling complete information one time => 5 seconds showing only part of information => blank => scrolling complete information one time and so on. Per example: I’m happy just to dance with you.mp3 display scrolling complete information: I’m happy just to dance with you.mp3 (one time) display shows only part of information: I’m happy just to (per 5 seconds)

  • Page 42: Phone Operation

    12. Phone Operation 12.1 Bluetooth Operation Conditions Bluetooth Kl,15 Radio Contact S OFF/ON 12.2 Phone Operation Non Phone mode short press HK [ ] button will switch to Phone menu, it does not interrupt current audio output. 12.3 Bluetooth Pairing Case 1: no cell phone paired to radio.
  • Page 43 If no action after 60 seconds radio will switch to previous BT menu; 5 sec timeout, radio will exit the BT menu display and reverts to LSM. If cell phone connects to radio during the 300 seconds of pairing time, radio will display “CONNECTED”...
  • Page 44 Radio will disconnect the current cell phone, display “PIN CODE 1234” and waiting for new phone cell. Pairing process will same as 12.3 Bluetooth Pairing, case 1. When short press SK [] button, radio can be searched by cell phone per 5 minutes, during this time only one cell phone can pair with radio via inputting pin code.
  • Page 45 Radio will display the 5 paired cell phones and highlight the current paired cell phone, and cell phones names must be scrolled if name length is too large. The cursor will focus on the connected phone (if there is not connected phone, focus on the first phone), rotate right knob to display next page phone.
  • Page 46 Users have to pair a new cell phone or connect an existing paired cell phone manually. 12.5 Bluetooth connect Case 1: Radio will connect to the latest paired cell phone automatically. Case 2: If there is not a connected cell phone, short press SK [] button in phone menu. Radio will display the paired cell phones list;...
  • Page 47 Rotate right knob to select the phone “NOKIA 5200” and short press right knob to connect to “NOKIA 5200”. Rotate the left knob may decrease/increase radio volume level, radio display remains without change (cell phone list), display will not show the volume bar. 15 seconds no action, short press left arrow button or long press right knob will exit the paired cell phone list and return to phone menu.
  • Page 48 If the call is answered, radio will switch to active call mode. If the call ends or short press SK [ ] button, radio will switch back to LSM. 12.7 Redial a call In phone menu, short press SK [ ] button Radio will display the latest 15 phone calls (Answered phone: >;...
  • Page 49 In phone menu, short press SK [ ] button or right [ ] knob to enter to the phonebook. Radio will display all the available contacts and contact names must be scrolled if name length is too large. Rotate right knob up/down may browse the contacts, slow rotating will move the contacts one by one (+1, -1), if rotate knob continuously users can fast skip the contacts, the max fast skip contact is 5, and the 2 actions in 25 ms, it will be regard as 1 action;...
  • Page 50 Short press HK [ ] button or SK [ ] button to answer the call. Short press SK [ ] button to reject the call. If the call is answered, radio will switch to active call mode. Users can adjust phone volume level during an active call via rotating the left knob and store the new volume level in memory for the next active call, the phone volume level is 0 to 30.
  • Page 51 If the radio is connected to a cell phone, while a phone call is coming, short press SK [ ] or long press HK [ ] button, the call will be rejected. And then radio will switch back to LSM. 12.12 Call end During an active phone call, short press HK [ ] button or SK [...
  • Page 52 Short press SK [] button again, radio will switch back to handsfree talking mode. The display indication “PRIVATE” stop the flashing and the triangle next to “PRIVATE” will be empty again. 12.14 Microphone mute During an active phone call, short press SK [ button, microphone is muted.
  • Page 53 After Kl.15 is switched ON (enable Kl.15) radio display will not change. Short press HK [] button will enter phone menu; 5 sec timeout, radio will exit the BT menu display and reverts to LSM. The current audio output must remain without change. Case 2: Kl.15/Contact-S are OFF, radio is in FM mode, cell phone (SAMSUNG E628) was connected to radio in the last time when Kl.15 was ON.
  • Page 54 After Kl.15 is switched ON (enable Kl.15) radio display will display “CONNECTED” per 2 sec, then change to normal display. Short press HK [] button will enter phone menu; 5 sec timeout, radio will exit the BT menu display and reverts to LSM.
  • Page 55 Users switch off Kl.15, Cell phone located far from radio, users turn off cell phone Bluetooth function, and radio will display DISCONNECTED per 2 sec. If Kl.15/Contact-S are OFF, short press HK [ ] button, the “IGNITION OFF” will be displayed per 2 sec., radio will also output beep sound.

  • Page 56: Audio / Setup

    13. Audio / Setup 13.1 Audio Setting Short press button will enter audio setting menu, you may adjust audio parameters via rotating right knob. •<BASS> Bass setting range: -9 to +9 Bass Center (0) Bass +5 Bass -3 Prepared by Hector Gomez HMI/ VWM DTEE / 52-222-2307414 DOC_HMI RADIO 2 DIN MIB-G LAM X1.8 revisada / 13/05/2011 Page 59 of 78...
  • Page 57 •<MIDDLE> Middle setting range: -9 to +9 Middle Center (0) Middle +9 Middle -9 •<TREBLE> Treble setting range: -9 to +9 Treble Center (0) Prepared by Hector Gomez HMI/ VWM DTEE / 52-222-2307414 DOC_HMI RADIO 2 DIN MIB-G LAM X1.8 revisada / 13/05/2011 Page 60 of 78...
  • Page 58 Treble +3 Treble -6 •<BALANCE> Balance setting range: L9 to R9 Balance Center Balance Right 5 Prepared by Hector Gomez HMI/ VWM DTEE / 52-222-2307414 DOC_HMI RADIO 2 DIN MIB-G LAM X1.8 revisada / 13/05/2011 Page 61 of 78...
  • Page 59 Balance Left 3 •<FADER> Fader setting range: F9 to R9 Fader Center Fader Front 9 Fader Rear 9 •<EQ> Equalizer setting range: USER => ROCK => POP => CLASSIC => JAZZ => USER Prepared by Hector Gomez HMI/ VWM DTEE / 52-222-2307414 DOC_HMI RADIO 2 DIN MIB-G LAM X1.8 revisada / 13/05/2011 Page 62 of 78...
  • Page 60 Prepared by Hector Gomez HMI/ VWM DTEE / 52-222-2307414 DOC_HMI RADIO 2 DIN MIB-G LAM X1.8 revisada / 13/05/2011 Page 63 of 78...
  • Page 61 During the adjustment, no action for 5 seconds or short press button will exit the audio setting menu. 13.2 SETUP Short press HK [ ] will enter setup menu, you may select the item and rotate right knob to adjust the value.
  • Page 62 •<AUX LVL> Aux level input setting range: 1=> 2 => 3 => 1 •<PDC-MUTE> PDC-MUTE setting range: OFF => LOW => MEDIUM => STRONG => OFF During the adjustment, no action for 5 seconds or short press HK [ ] button will exit the audio setting menu.

  • Page 63: Mfl Key Function Short Description

    14. MFL key function short description These features are based according to Highline-Kombi-MMI (PQ35x, PQ46x, T5-GP) Version 1.4 (MJ2009) dated 29.03.2007; MIB-G_BAP-MSCs_Audio_V1.03.pdf, MIB-G_Audio_FSG_Bedatung_P30DF31_MJ2013_v1.06_F.pdf All the functions are done with left control panel of steering wheel, if the vehicle is equipped with right control panel of steering wheel, no action is done.
  • Page 64 If short press once in tuner, CD, MP3, USB, SD, BT AUDIO, IPOD modes, radio will seek up or track up. If long press, radio will perform target seek up or fast forward in track. Dial Voice Short press this button, radio activates communication channel to make a call in voice dialing mode, user needs to follow instructions from cell phone.

  • Page 65: Mfa Indications

    15. MFA indications Radio information such as tuned station, CD track and volume are displayed when radio is turned on and the board computer screen is active. Information regarding telephone calls and cell phones are also displayed in the remote display.
  • Page 66 Mute MUTE ICON Audio Settings(BTBF) Telefone In Phone - incoming call (0x12) PDC-Mute Aux In Source SD Source AUX-IN (0x0E) SD - Insert / Eject SD (0x0B) SD READING SD + track name/title; no elapsed time SD - Playback SD-Repeat SD-Mix/Random SCAN SD-Scan...
  • Page 67 CD-Mix/Random CD-Scan SCAN >> CD-Fast Forward CD-Fast Reward << CD TEXT/ID3 Bluetooth currentStationInfo (0x15) Bluetooth - HW Bluetooth - Pairing Bluetooth - Connection Bluetooth - Call Bluetooth - Private Call Bluetooth - Redial Bluetooth - Voice Dial Bluetooth - Volume Bluetooth - Audioquality code is 0xFF + updated Fcat...

  • Page 68: Climate Indications

    16. Climate indications Climate information is displayed when radio is turned on and some action is performed by the Climatronic. The indications shown in this document are the required for this radio. The indications performance are according to Radio Low – Operating Specification, version V1.28 dated 02.04.2009, MIB-G_BAP-MSCs_Klima_V1.04.pdf, MIB- G_BAP-FC_Klima_P30DF30_V1.06a.pdf Grouping of the climate functions to simplify the state chart description Group A...
  • Page 69 Auto Defrost Max Heckscheiben Heizung Frontscheiben Heizung Umluft Auto Umluft Rest Cancelled Dual / Synchronisation Rear Schnellzuheizer Climatronic OFF Prepared by Hector Gomez HMI/ VWM DTEE / 52-222-2307414 DOC_HMI RADIO 2 DIN MIB-G LAM X1.8 revisada / 13/05/2011 Page 72 of 78...

  • Page 70: Ops Indications

    17. OPS Indications OPS information is displayed when radio is turned on and if radio is OFF when OPS mode is activated then radio must be turn ON while OPS indications are active. The indications shown in this document are the required for this radio.

  • Page 71: Diagnostic Mode

    18. Diagnostic Mode In case of Diagnose over CAN, the display only will show “DIAG ON” Prepared by Hector Gomez HMI/ VWM DTEE / 52-222-2307414 DOC_HMI RADIO 2 DIN MIB-G LAM X1.8 revisada / 13/05/2011 Page 74 of 78...

  • Page 72: Software Update

    20. Software Update While radio is powered on, insert USB or SD card, USB or SD card has software update file plus other files. Radio will switch to software update mode if long press more than 5 sec SK [1] and [5] buttons. The maximum time is 15 minutes for updating process.
  • Page 73 In updating process some problem happens, the radio will display “ERROR” all of the time until user remove the USB/SD card. Then radio will revert to the LSM. Other way to update software is via CAN active. Prepared by Hector Gomez HMI/ VWM DTEE / 52-222-2307414 DOC_HMI RADIO 2 DIN MIB-G LAM X1.8 revisada / 13/05/2011 Page 78 of 78...
