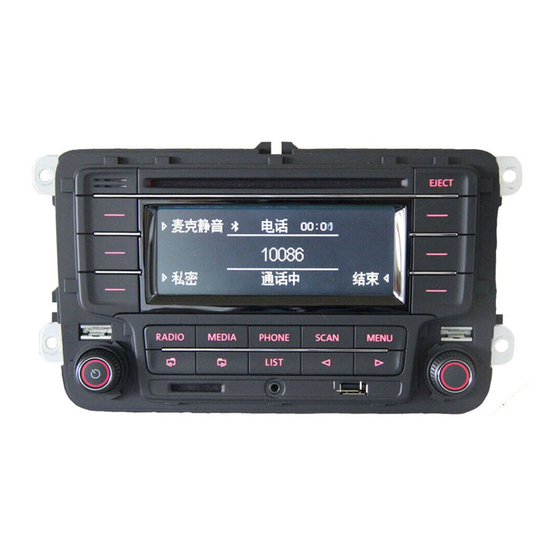

VOLKSWAGEN RCN210 RADIO INSTALLATION

On some VW models this radio can work straight after installation, but mostly it requires connection to INFO CAN lines those

could be reached, at the easiest, from A/C control panel unit. Without that connection, radio will run but will not work properly

or completely (no lighting, no power off after ignition off, no Bluetooth etc...) This manual describes and shows how radio needs

to be installed. The installation in manual is carried out on VW CADDY 2008. On other VW vehicles, installation proccess will be

analogical and similar.

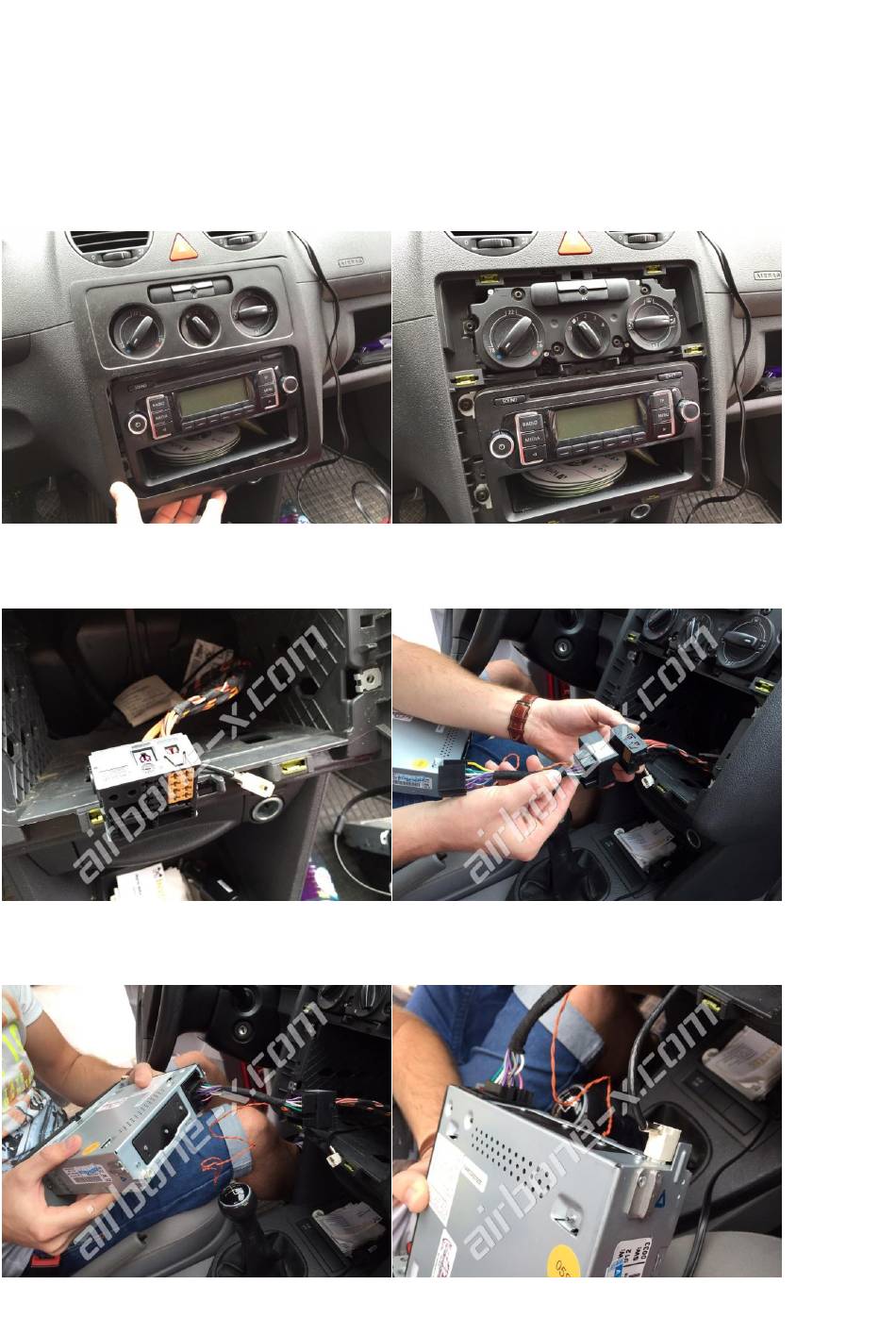

Remove plastic trim around the radio and heating/ac control panel. Locate torx screws fastening the radio and a/c panel, loose

them to remove both parts.

Remove radio connector and antenna connector from original radio. Use supplied wiring adapter to connect RCN210 radio with

your original plug. Do not forget to plug antenna cable.

Table of Contents

Need help?

Do you have a question about the RCN210 and is the answer not in the manual?

Page 1 Remove plastic trim around the radio and heating/ac control panel. Locate torx screws fastening the radio and a/c panel, loose them to remove both parts. Remove radio connector and antenna connector from original radio. Use supplied wiring adapter to connect RCN210 radio with your original plug. Do not forget to plug antenna cable.
Page 2 Unscrew climate/heating control panel, pull it off and locate connector with INFO-CAN lines. These will be orange with green strip and orange with brown strip. Connectors at the climate/heating panel may vary on different models, however what we are looking for are orange/green and orange/brown wires. Remove connector from the climate control panel.
Page 3 Operating the radio functions is very easy. If you want to pair your phone with the radio to make/receive phone calls, i tis easy. Just turn on PHONE function on radio and afterwards on your phone. Your phone will find new device named as „VW RADIO“. Choose it and confirm pairing on both devices if requested.
