To fit the full height bracket to the module:
1. Remove the two screws from the solder side of the module.
2. Remove the low profile bracket.
3. Fit the full height bracket to the component side of the module.
4. Insert the two screws into the solder side of the module to secure the bracket. Do
not over tighten the screws.

4.4. Replace Solo XC Fan

Required Tools
• Phillips screwdriver #0
• Phillips screwdriver #2
• Small needle nose pliers
Required Part
• Orderable part number SOLOXC-REP-FAN (Replacement fan assembly).
1. Power off the system and while taking ESD precautions, remove the Solo XC
card.
2. Place the Solo XC on a flat surface.

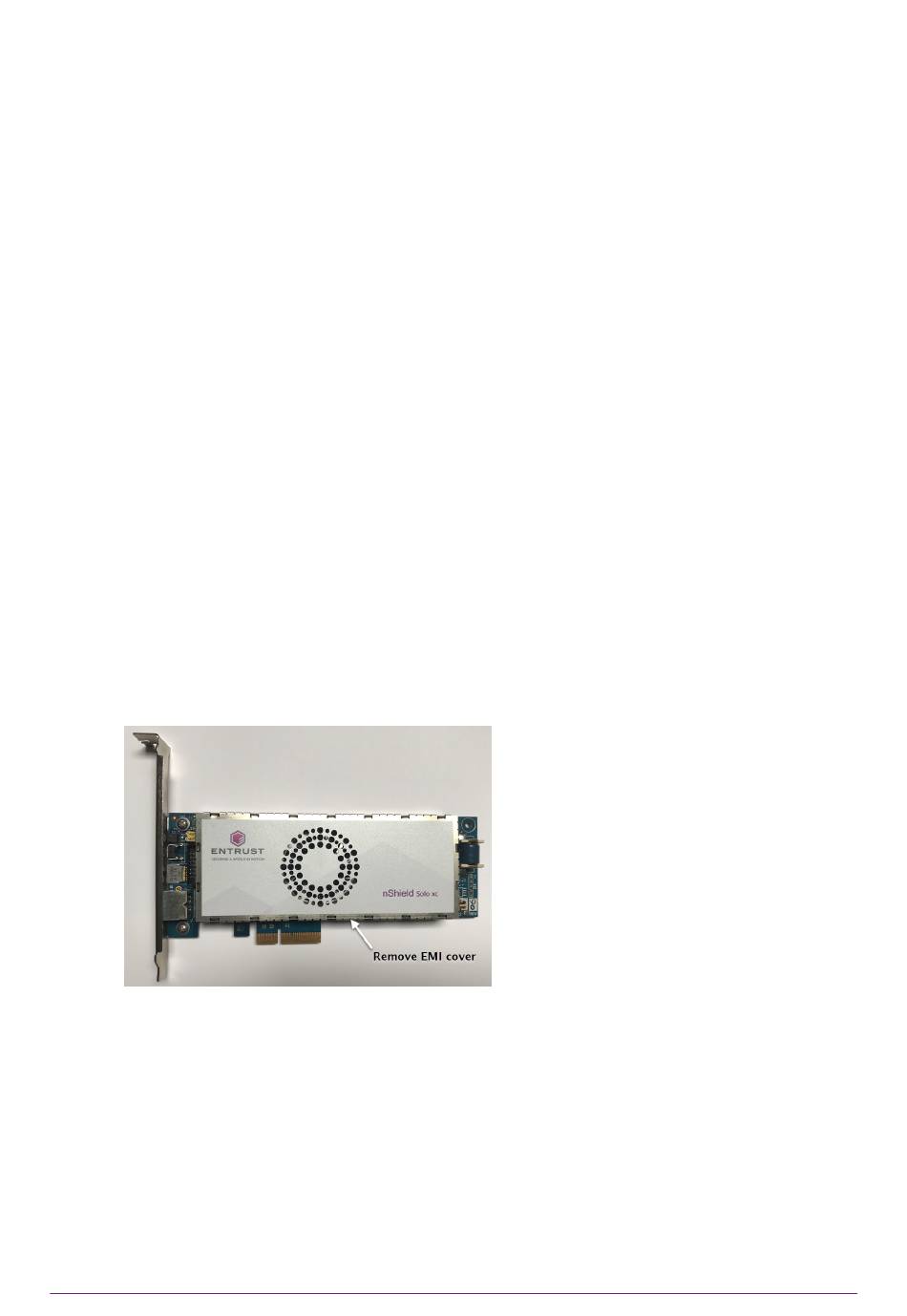

3. Remove the top EMI cover using a #2 screwdriver.
4. Pull the fan power cable and grommet from the slot in the EMI fence.
5. Using the needle nose pliers, gently remove the fan power cable from the P3
connector.
