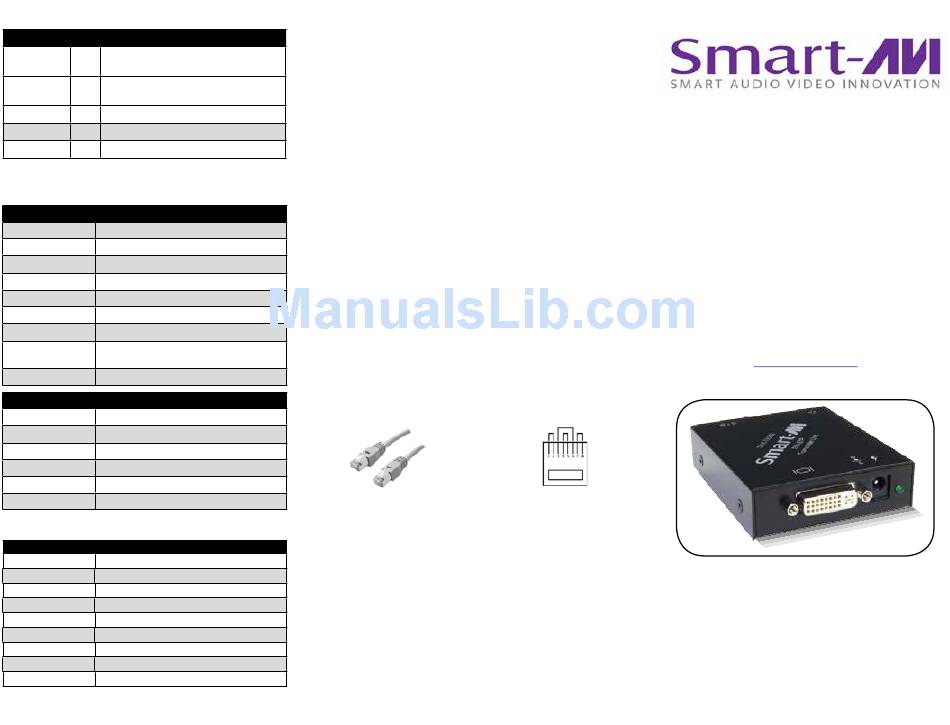

SMART-AVI DVX-200 Installation Manual

What's in the Box?
PART NO. QTY DESCRIPTION
DVX-RX200 1 DVX-200 Receiver. DVI Receiver over CAT6
STP
DVX-TX200 1 DVX-200 Transmitter. DVI Transmitter over
CAT6 STP
DVI-D Cable 1 6ft MM DVI-D
Power Supply 2 PS5VDC2A
User Manual 1

Technical Specifications

VIDEO
Format DVI-D Single Link
Maximum Pixel Clock 165 MHz
Input Interface (TX) (1) DVI-D 29-pin female
Output Interface (RX) (1) DVI-D 29-pin female
Resolution Up to 1920 x 1200 @60Hz
DDC 5 volts p-p(TTL)
Input Equalization Automatic
Input/Output Cable Up to 20 ft.
Length
Extension over Cat6 Up to 225 ft.
OTHER
Power External 100-240 VAC/5VDC2A @10W
Dimensions 2.75 in W x 0.8 in H x 3.4 in D
Weight 0.2 lb
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%

Supported Resolutions

RESOLUTION REFRESH RATE
640 x 480 85 Hz
800 x 600 85 Hz
1024 x 768 85 Hz
1152 x 870 75 Hz
1280 x 768 75 Hz
1280 x 960 60 Hz
1280 x 1024 60 Hz
1600 x 1200 60 Hz
1920 x 1200 60 Hz
T h e i n f o r m a t i o n c o n t a i n e d i n t h i s d o c u m e n t
is subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
* Smart-AVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from Smart-AVI.
The following is the wiring standard for terminating UTP/STP
cable using RJ-45 connector:
Connectors:
Capacitance:
Conductor Gauge:
Impedance:
NOTICE
Pair 1 Pins 1 & 2
Pair 2 Pins 3 & 6
Pair 3 Pins 4 & 5
Pair 4 Pins 7 & 8
RJ-45
14 pf/ft (46.2 pf/m)
23 AWG
100 +/- 15 ohms
Installation
Manual
D VX-200
DVI-D Extender
up to 225 feet over a Cat6 Cable

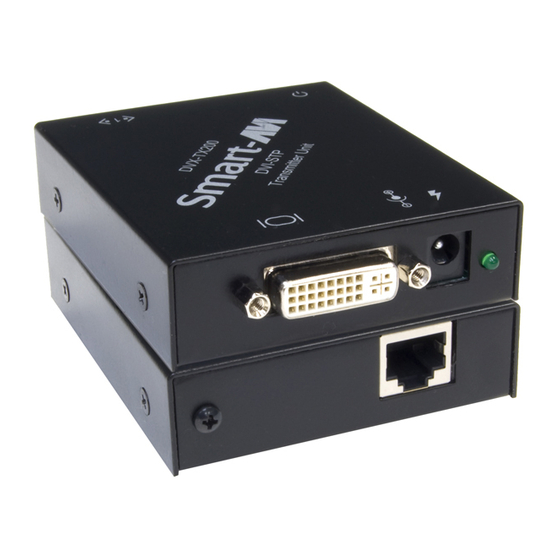

The DVX-200 is a DVI-D video extender
system (transmitter and receiver) designed
to broadcast high-definition DVI-D signals
up to 225 feet using inexpensive cabling.
