SMART-AVI DVX-4P Quick Start Manual

TECHNICAL SPECIFICATION

VIDEO
Input Interface DVI-D (Single-Link)
Output Interface DVI-D (Single-Link)
1920x1200 at 60Hz, resolution
Resolution
up to 1280x1024 min. 75Hz
Supported 480p, 720p,1080i
Data Rate 1.65 Gbps
USB Data USB maximum data rate 12Mbps
USB compatibility 1.0 and 1.1
AUDIO
Signal Type Stereo Audio
Bandwidth 15MHz, 0dB
Impedance 10K Ohm
OTHER
Full duplex, transparent to all baud
RS-232
rates TXd, RXD, GROUND
System cable CAT6, STP x4; CAT6, 568B
Size TX/RX 17" (L) x 3.5" (W) x 1.70" (H)
Weight 8 Lbs
Power 110/120 V - 5 VDC - 4 A
WHAT'S IN THE BOX
PART NO. Q-TY DESCRIPTION
Quad DVI-D, USB, Audio and
DVX-4P-TXS 1 RS232 over CAT6 STP
Transmitter
Quad DVI-D, USB, Audio and
DVX-4P-RXS 1
RS232 over CAT6 STP Receiver
CCPWR06 2 PS5VD4A Power Supply
Quick Start
1
Guide
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com

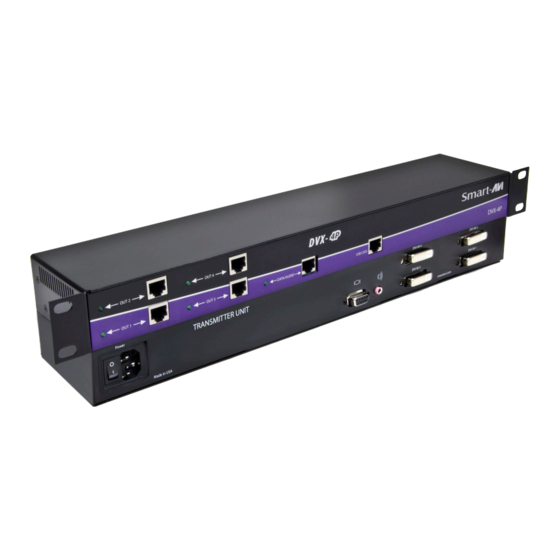

DVX-4P
Quad DVI-D and USB Extender
EXTEND FOUR DVI-D VIDEO
SIGNALS, USB 1.1,
STEREO AUDIO, AND RS-232
UP TO 275 FEET OVER
CAT5 CABLING
Quick Start Guide
