GoMax Electronics MA-5544HIZ User Manual

4x4 hdmi 2.0a matrix
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MA-5544HIZ
4X4 HDMI 2.0a Matrix
User Manual
rev: 200713
Made in Taiwan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MA-5544HIZ and is the answer not in the manual?

Questions and answers

Related Manuals for GoMax Electronics MA-5544HIZ

Summary of Contents for GoMax Electronics MA-5544HIZ

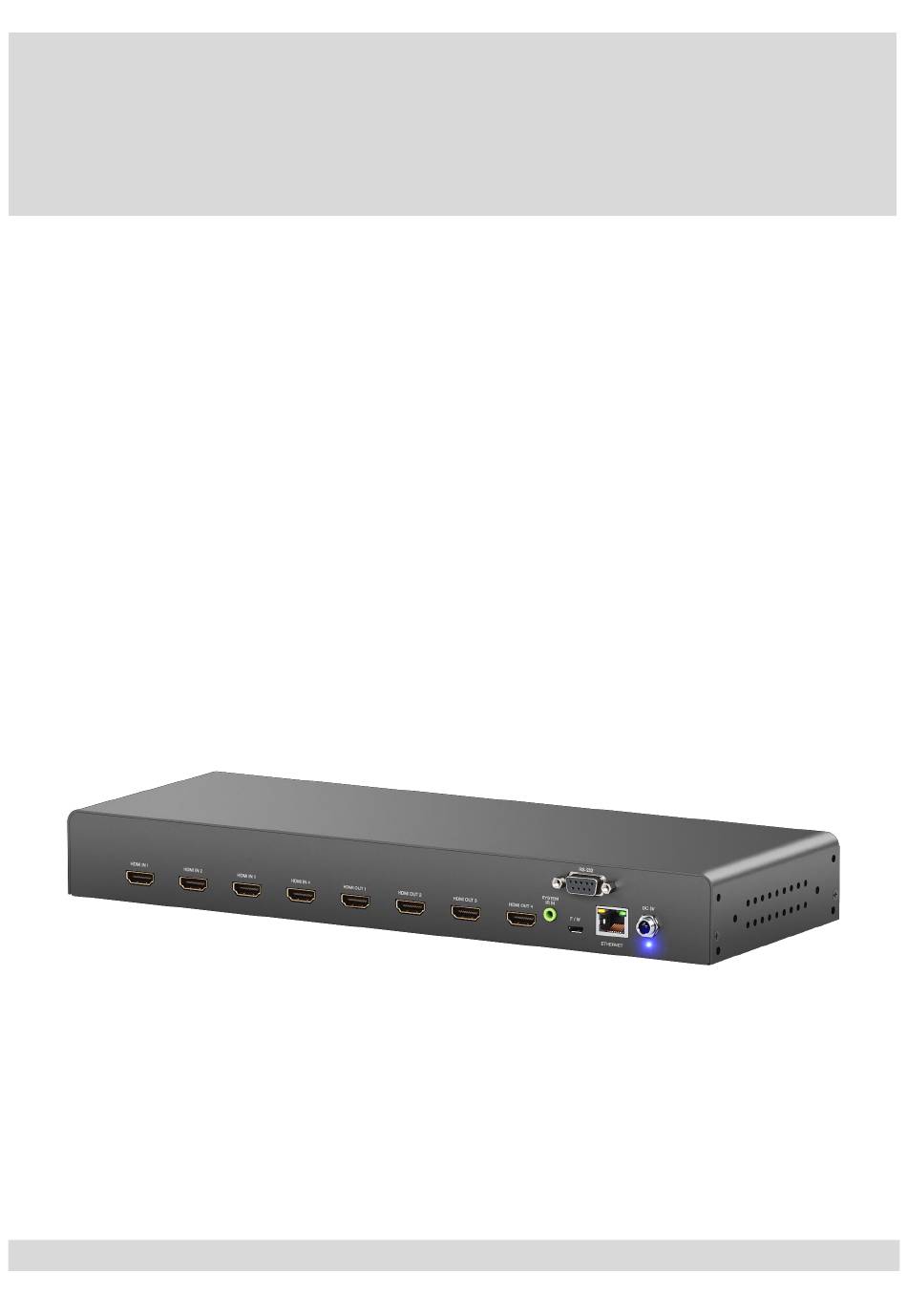

  • Page 1 MA-5544HIZ 4X4 HDMI 2.0a Matrix User Manual rev: 200713 Made in Taiwan...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ........................ 1 FEATURES ......................... 1 SPECIFICATIONS ......................2 PACKAGE CONTENTS ...................... 3 PANEL DESCRIPTIONS ....................3 CONNECTION DIAGRAM ....................4 HARDWARE INSTALLATION ..................... 4 OPERATION APPROACH ....................5 EDID LEARNING ......................19 FAQ ..........................20 WARRANTY ........................21...

  • Page 3: Introduction

    (up to 7.1-channel) digital audio from any of the four HDMI sources to the remote displays at the same time. MA-5544HIZ supports HDR and the true 4K2K video! Besides, MA-5544HIZ supports auto downscale from 4K2K to 1080P. With this benefit function, the matrix device compatibility will be better.

  • Page 4: Specifications

    SPECIFICATIONS Model Name MA-5544HIZ Technical Role of usage True 4x4 matrix HDMI compliance HDMI 2.0a HDCP compliance HDCP 2.2 / 1.4 Video bandwidth Single-link 600MHz [18Gbps] Video support HDR 4K2K@60(4:2:0 10bits) / 4K2K@60 (4:4:4 8bits) DTS-HD Master Audio, Dolby TrueHD Dolby Digital,...

  • Page 5: Package Contents

    PACKAGE CONTENTS   1x MA-5544HIZ 1x Rack-mounting ear set   1x IR receiver 1x Installation software CD   1x DC 5V 4A 1x User Manual  1x IR Remote control* Additional IR remote controllers and IR blasters can be purchased as optional accessories to control the HDMI sources located separately.

  • Page 6: Connection Diagram

    HARDWARE INSTALLATION MA-5544HIZ as master 1. Connect all sources to HDMI Inputs on the 4x4 HDMI Matrix MA-5544HIZ. 2. Connect all displays to HDMI Outputs on the 4x4 HDMI Matrix MA-5544HIZ. 3. Connect the +5V 4A DC power supply to the 4x4 HDMI MatrixMA-5544HIZ.

  • Page 7: Operation Approach

    OPERATION APPROACH Method A: Push-in Button IN/OUT MAP (1) Use Port 1-4 Channel Push Button to select the source (2) Input1~4 can be selected in order Method B: IR Remote Control Button Function Standby mode Power on the matrix switcher MUTE Turn off output’s video and audio STATUS...
  • Page 8 IN/OUT Switch Operation Procedure IN/OUT Switch Push the button on the checkerboard to select input & output port Ex: Input 2 Push the red circle button as below to select input 2 to output 3 To Output 3 Example of function key Operation Procedure Mute Output...
  • Page 9 Method C: Software Control through RS-232 port 1. System Requirement (1) OS Information: MS Win XP/7/8.1/10 (2) Baud rates: 115200 (3) Software size: 1 MB (4) Minimum RAM requirement: 256 MB Power ON/ Standby mode EDID Tab Control SW via RS-232 Rename I/O Tab Control SW via Network System Tab...
  • Page 10 I/O Mapping Tab  I/O Mapping:  Switch the input for each output  Click “Blank” graph to turn on or off the output  Recall Mapping:  Select the stored Mapping(1-8)  Click “Recall” button to recall previous mapping which are saved ...
  • Page 11 2. EDID Tab  Learn EDID from Default to Input  Select Default EDID(1-17 Default EDID)  Select designated Input  Click “Apply” button to learn from default EDID  Learn EDID from Display to Input  Select output  Select designated Input ...
  • Page 12  View EDID information  Select Input ,HDMI output or EDID file  Click “View” button to read and analyze the EDID information 3. Rename I/O Tab  Rename I/O:  Rename the Inputs  Rename the Outputs  Rename Mapping: ...
  • Page 13 4. System Tab  Network-DHCP mode  Select DHCP and click “Read” button to automatically get the IP address  Network-Static mode  Select Static and then key in the “IP”, “MASK”, “GATEWAY” information. After setting IP address, please click “Save” button to save IP address Information ...
  • Page 14  Cloud-Reset Cloud  To reset cloud after a successful pairing   Read the device’s MAC address information  System-Factory Reset  To do factory default reset  Firmware Version  To get the F/W version information 5. Firmware Update Tab Before you start to update, please make sure you have secured the connection between your computer COM port and the device.
  • Page 15  Main Board Using RS-232 to USB cable connect the device and your PC/laptop.  Click the button to open the Firmware Update Tool window.  Click the button to select the file which you want to write into device. ...
  • Page 16 Method D: Web Interface Control The default IP address: 192.168.1.70 I/O Routing Tab EDID Tab Rename I/O, Mapping Tab Power ON/Standby mode I/O Routing Tab  I/O: Switch the input for each output  Save Mapping  Select Mapping 1~8 ...
  • Page 17 Rename I/O, Mapping Tab  Rename I/O:  Rename the Inputs  Rename the Outputs  Rename Mapping:  Rename the Mappings -15-...
  • Page 18 EDID Tab  Learn EDID from Default  Select Default EDID (1-17 default EDID)  Select input  Click “Send” button to learn default EDID  Learn EDID from Display  Select output  Select input  Click “Send” button to learn display EDID Power ON / Standby mode -16-...
  • Page 19 Method E: Cloud Control (Eagleyes) through Ethernet port Create Account The first time to use the Eagleyes service, please create a new account. 1. Access Eagleyes (http://www.eagleyes.io) and click “Create new account”. 2. The Registration page will pop up and please fill in your email and password information to create your private account.
  • Page 20 Add Device to Eagleyes 1. Firstly, please make sure the device is connected to the Ethernet. Then please executing the software with device to get the association code (Note: the status of software is connected). 2. Access Eagleyes (http://www.eagleyes.io) or download Eagleyes APP and then log in your account on the right top corner.

  • Page 21: Edid Learning

    EDID LEARNING The EDID learning function is only necessary whenever you encounter any display on the HDMI output port that cannot play audio and video properly. Because the HDMI source devices and displays may have various level of capability in playing audio and video, the general principle is that the source device will output the lowest standards in audio format and video resolutions to be commonly acceptable among all HDMI displays.

  • Page 22: Faq

    Q Can every TV work with the HDMI matrix? A Basically, the answer is YES. But if your TV can not support 1080p, please refer the EDID LEARNING section to learn EDID from your TV. Q What is EDID? Why do I need to learn EDID? A EDID contains the whole information of the display such as the resolution and audio setting which this display can support.

  • Page 23: Warranty

    WARRANTY The SELLER warrants the MA-5544HIZ 4x4HDMI 2.0a matrix free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including static discharge and power surge.
