GoMax Electronics MA-5588H User Manual

8x8 hdmi 2.0a matrix
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

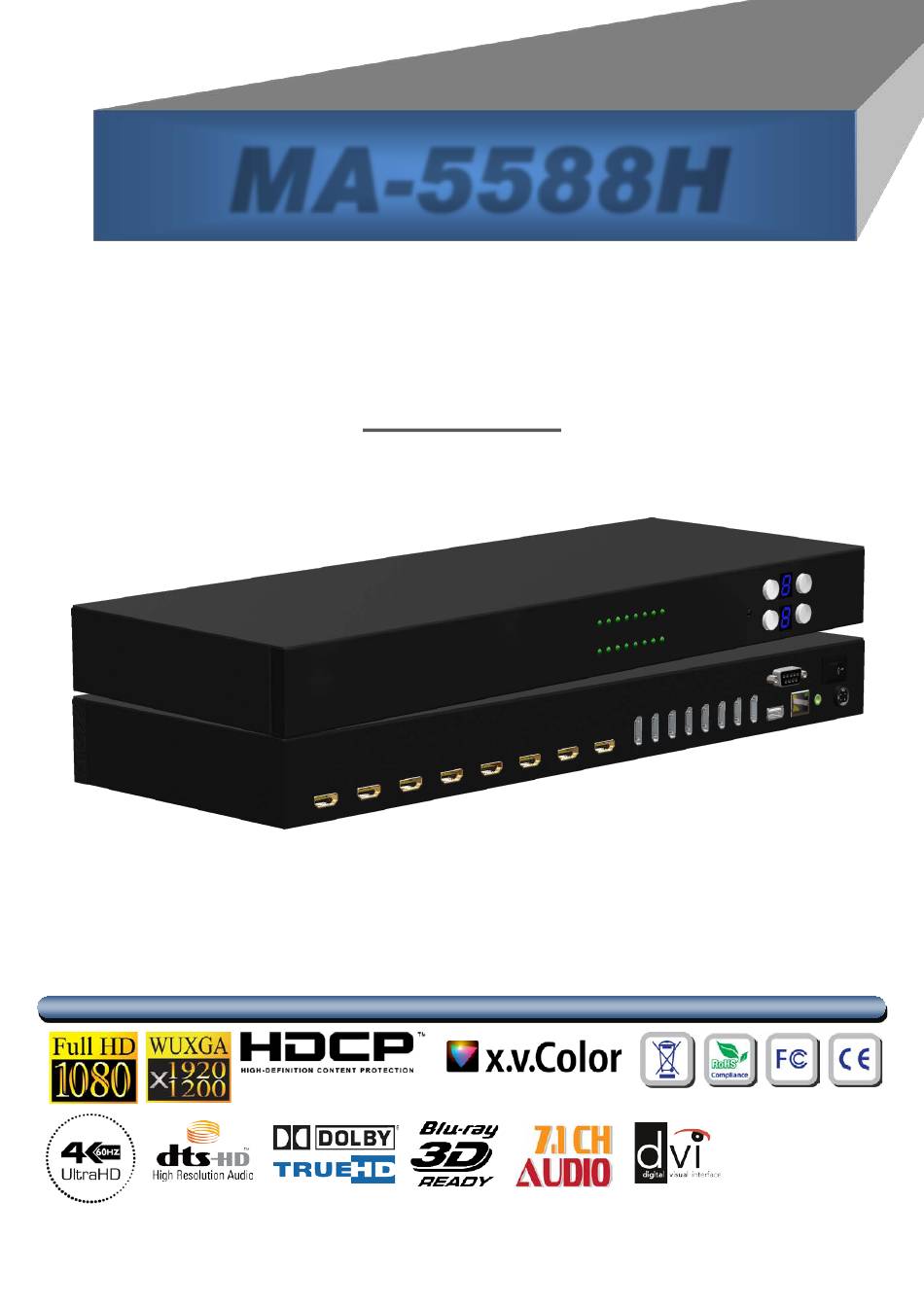

MA-5588H
8X8 HDMI 2.0a Matrix
User Manual
rev: 130701
Made in Taiwan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MA-5588H and is the answer not in the manual?

Questions and answers

Related Manuals for GoMax Electronics MA-5588H

Summary of Contents for GoMax Electronics MA-5588H

  • Page 1 MA-5588H 8X8 HDMI 2.0a Matrix User Manual rev: 130701 Made in Taiwan...

  • Page 2: Table Of Contents

    However, like all electronic equipment, the MA-5588H should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

  • Page 3: Introduction

    (up to 7.1-channel) digital audio from any of the four HDMI sources to the remote displays at the same time. MA-5588H supports HDR and the true 4K2K video!

  • Page 4: Specifications

    SPECIFICATIONS Model Name MA-5588H Technical Role of usage True 8x8 matrix HDMI compliance HDMI 2.0a HDCP compliance HDCP1.4/HDCP 2.2 Video bandwidth Single-link 594MHz [18Gbps] Video support HDR 4K2K@60 (4:2:0 10bits) / 4K2K@60 (4:4:4 8bits) Audio support Surround sound (up to 7.1ch) or stereo digital audio [1] Human body model —...

  • Page 5: Panel Descriptions

    PANEL DESCRIPTIONS Front Panel Source Status: Input source detection LED Display Status: Output display detection LED Output Push Button & 7-segment LED: Front panel push buttons used to select the number of display channel & LED display for output ports IR SENSOR: IR sensor for receiving the IR commands from IR remote Input Push Button &...

  • Page 6: Hardware Installation

    1. Connect all sources to HDMI Inputs on the 8x8 HDMI Matrix MA-5588H. 2. Connect all display to HDMI Outputs on the 8x8 HDMI Matrix MA-5588H 4. Connect the +12V 7.5A DC power supply to the 8x8 HDMI Matrix MA-5588H. CONNECTION DIAGRAM...

  • Page 7: Operation Approach

    OPERATION APPROACH Method A: Push-in Button 1. IN/OUT MAP 1) Use the “+”or “-“ output push button to select the number of display 2) Use the “+”or “-“ input push button to select the number of input source “+”: change selected input/output port in ascending order “-”...
  • Page 8 Method B: IR Remote Control 1. IN/OUT Switch Operation Procedure 7-Segment LED IN/OUT Switch Output Number (1~8) + Input Number (1~8) 1. Press output number key “3” to select Output 3 Ex: Input 2 To Output 3 2. Press input number key “2” to select Input 2 2.
  • Page 9 Operation Procedure 7-Segment LED Output Status Status + Output Number (1~8) + Take 1.Press “STATUS” button Ex: Output 4 2.Press output number key “4” to select Output 4 (Input 2) 3.Press “TAKE” button Save Current Mapping Save + Output Number (1-8 storage site) + Take 1.Press “SAVE”...

  • Page 10: Edid Learning

    Method C: Software Control through RS-232 port / Ethernet port 1. System Requirement 1) OS Information: MS WinXP/7 2) Baud rates: 9600 3) Software size: 3 MB 4) Minimum RAM requirement: 256 MB Method D: Software Control through RS-232 port Power ON/ Standby mode EDID Button Control SW via RS-232...
  • Page 11 1. I/O Routing Button 1) I/O: a) Switch the input for each output 2) Recall Mapping: a) Select the stored Mapping(1-16) b) Click “Recall” button to recall previous mapping which are saved 3) Save Mapping: a) Select Mapping(1-16) b) Click “Save” button to save current mapping...
  • Page 12 2. EDID Button 1) Learn EDID from Default to Input a) Select Default EDID(1-17 Default EDID) b) Select designated Input c) Click “Apply” button to learn from default EDID 2) Learn EDID from Display to Input a) Select output b) Select designated Input c) Click “Apply”...
  • Page 13 => The matrix will do Automatic EDID learning and generate the best EDID among all connected monitors a) “Read” button => Get the auto EDID status from device 5) View EDID a) Select Input or HDMI output b) Click “View” button to read and analyze the EDID 3.
  • Page 14 4. System Button 1) Network a) DHCP mode => Click DHCP and then click the “Read” button to get the IP address Info b) Static mode => Click Static and then key in the “IP”, “MASK”, ”GATEWAY” info. After setting IP Address, please click “Save”...
  • Page 15 3) Cloud setting a) Association Code => To get an “association code”. The device can use this code to pair with cloud server. b) Reset Cloud => To reset cloud after a successful pairing...
  • Page 16 5. Firmware Update Button 1) Update from USB a) Please ensure the file of new firmware files are in the root directory of USB Flash Drive. The file suffix is .bin. Connect the USB Flash Drive on matrix USB interface. c) Click “Start”...
  • Page 17 EDID LEARNING The EDID learning function is only necessary whenever you encounter any display on the HDMI output port that cannot play audio and video properly. Because the HDMI source devices and displays may have various level of capability in playing audio and video, the general principle is that the source device will output the lowest standards in audio format and video resolutions to be commonly acceptable among all HDMI displays.

  • Page 18: Faq

    Can every TV work with the HDMI matrix? Basically, the answer is YES. But if your TV can not support 1080p, please refer the EDID LEARNING section to learn EDID from your TV. What is EDID? Why do I need to learn EDID? EDID contains the whole information of the display such as the resolution and audio setting which this display can support.

  • Page 19: Warranty

    SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the MA-5588H features and specifications is subject to change without further notice.
