Related Manuals for AT&T DLP72362
Summary of Contents for AT&T DLP72362

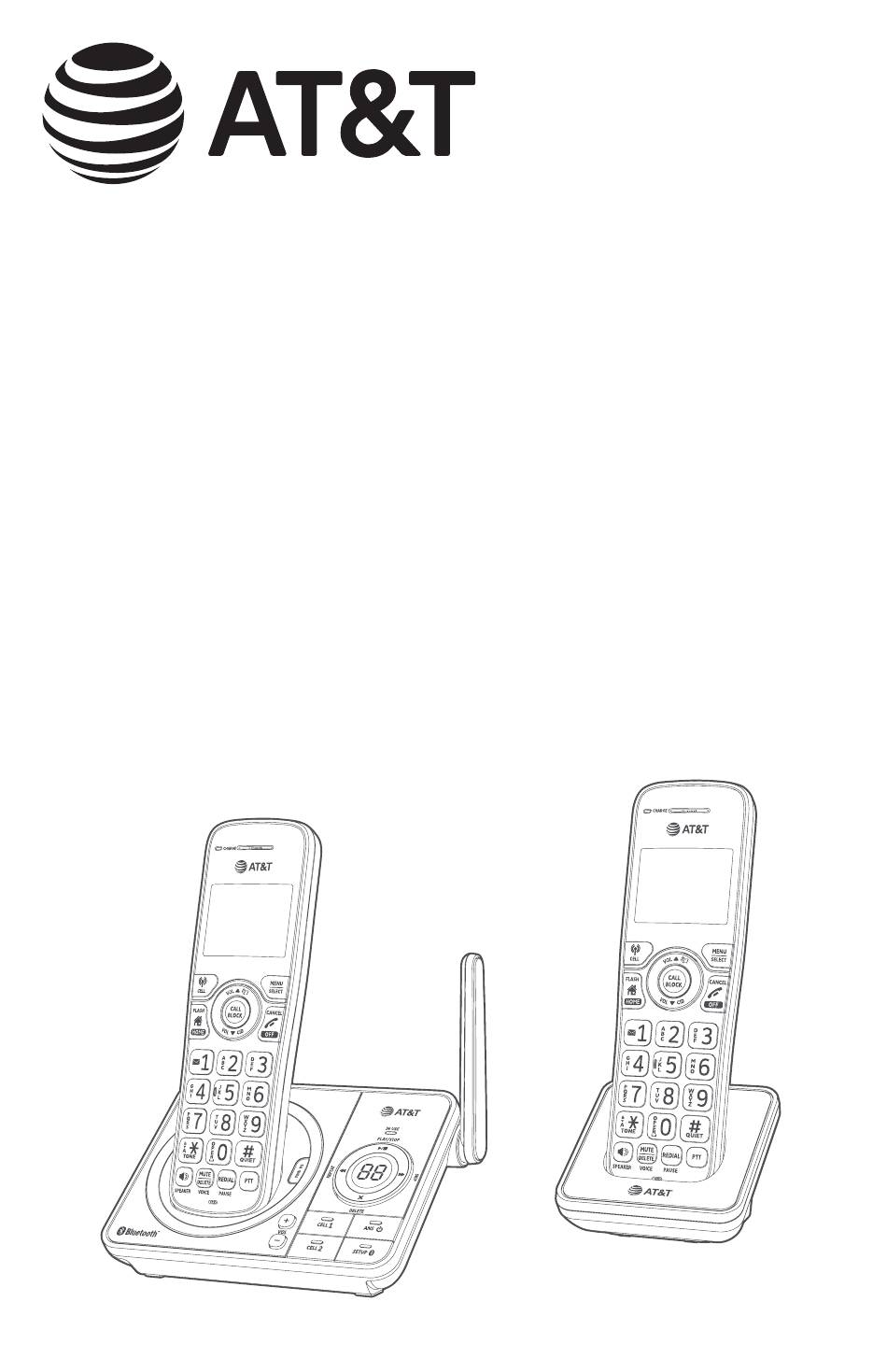

- Page 1 Quick start guide DLP72212/DLP72362/DLP72412 DECT 6.0 cordless telephone/ answering system with BLUETOOTH® wireless technology...
- Page 2 1 (800) 222-3111 1 (866) 288-4268 or call . In Canada, dial Please refer to the online DLP72212/DLP72362/DLP72412 DECT 6.0 cordless telephone/answering system with BLUETOOTH® wireless technology Complete user’s manual for a full set of installation and operation instructions at https://telephones.att.com/manuals...
-
Page 3: Important Safety Information
Important safety information This symbol is to alert you to important operating or servicing instructions that may appear in this user’s manual. Always follow basic safety precautions when using this product to reduce the risk of injury, fire, or electric shock. Safety information Read and understand all instructions in the user’s manual. - Page 4 Important safety information CAUTION: To prevent risk of fire or battery explosion, replace with the correct battery type. Dispose of used batteries according to the instructions. Disconnect the telephone line from the equipment before open the battery door. Do not use the battery in following conditions: High or low extreme temperature during use, storage or transportation.
- Page 5 Important safety information Nickel-metal hydride rechargeable batteries: Dispose of these batteries in a safe manner. Do not burn or puncture. Like other batteries of this type, if burned or punctured, they could release caustic material which could cause injury. The RBRC Seal means that the manufacturer is voluntarily participating in an industry program to collect and recycle nickel- metal hydride rechargeable batteries when taken out of service within the United States.
-
Page 6: Table Of Contents
Table of contents Important safety information ....................1 Install ................................5 Handset overview ..........................7 Telephone base overview ......................11 Initial basic settings ........................13 Voice guide to set Smart call blocker and answering system ......13 Date and time ..........................14 Record your own announcement ..................14 Number of rings..........................14 Ringer volume ..........................15 LCD language ..........................15... -
Page 7: Install
Install Telephone base Notes: Plug one end of the telephone line cord into a telephone jack or a DSL filter. If you have DSL high-speed Internet service, a DSL filter (not included) is required. Charger Caution: Use only the power adapter(s) provided with this product. - Page 8 Install Battery Install the battery, as shown below. Charge your handset(s) before initial use. The battery is fully charged after 16 The CHARGE light on the top of the handset is on hours of continuous charging. during charging. Caution: Use only the supplied rechargeable battery or replacement battery (model BT162342/BT262342).
-
Page 9: Handset Overview
Handset overview Handset CHARGE light On when the handset is charging in the telephone Ì base or charger. Ì Press to make or answer a cell call. CELL During a call, press to answer an incoming cell call Ì when you hear a call waiting alert. Ì... - Page 10 Handset overview Press to make or answer a home or cell call using the Ì /SPEAKER speakerphone. Press to switch between the speakerphone and the Ì handset. MUTE/ During a call, press to mute the microphone. Ì DELETE/ When the handset is ringing, press to mute the ringer Ì...
- Page 11 Handset overview MENU/ Press to display the menu. Ì SELECT While in the menu, press to select an item or save an Ì entry or setting. CALL BLOCK When the handset is not in use, press to show the call Ì...
- Page 12 Handset overview HANDSET 1 ANS ON MSG # MSG # 10:30 10/16 Handset display The battery icon flashes when the battery is low and needs charging. The battery icon animates when the battery is charging. The battery icon becomes solid when the battery is fully charged. The handset ringer is turned off.
-
Page 13: Telephone Base Overview
Telephone base overview Telephone base FIND HS Ì Press to page all handsets. IN USE light On when the handset is in use, or when the Ì answering system is answering an incoming call. Ì Flashes when there is an incoming call, or another telephone sharing the same line is in use. - Page 14 Telephone base overview Antenna Press to turn the built-in answering system on or Ì off. Press to activate the voice guide for pairing cell Ì phone or headset, or downloading cell phone phonebook to the telephone system. CELL 1 / CELL 2 Press and hold to add or replace a Bluetooth Ì...
-
Page 15: Initial Basic Settings
Initial basic settings After you install your telephone or power returns following a power outage, the handset will prompt you to set the date and time. To skip setting the date and time, OFF/CANCEL on the handset. press Voice guide to set Smart call blocker and answering system After you install your telephone for the first time, the telephone base will prompt if you want to set Smart call blocker and answering system. -
Page 16: Date And Time
Initial basic settings Date and time Note: Set the date/time before using the answering system. Using a cordless handset: MENU -> -> Set date/time -> SELECT. 2. Enter the month (MM), day (DD) and year (YY) -> SELECT. 3. Enter the hour (HH) and minute (MM). ->... -
Page 17: Ringer Volume
Initial basic settings Ringer volume You can set the ringer volume level to one of the six levels, or turn the ringer off, for incoming home or cell calls. Using a cordless handset: Set ringer volume for incoming home calls: 1. -
Page 18: Bluetooth
Add a Bluetooth cell phone/headset ® Note: Your DLP72212/DLP72362/DLP72412 is compatible with Bluetooth version 2.0 or above devices. To use a Bluetooth enabled cellular phone or headset with your telephone, you must first pair and connect your Bluetooth cellular phone or headset with the telephone base. -
Page 19: Connect To Cell
Connect to Cell™ application consists of Caller ID manager and Alerts manager (Mobile notification). It extends the flexibility of your DLP72212/DLP72362/DLP72412 telephone system. If you are using Bluetooth-enabled cell phones with Android® OS 2.3 or above, you may download the Connect to Cell™ application from Google Play®... -
Page 20: Operate
Bluetooth® To activate remote voice control: 1. Press /VOICE. MUTE/DELETE If you have two connected cell phones -> to select a device. 2. When the handset plays the confirmation tone, speak toward the handset, and then wait for feedback. Make reply to the voice app’s feedback, if necessary. 3. -
Page 21: Push-To-Talk (Ptt)
Operate Operation Steps Call waiting Press HOME/FLASH on the handset to put current call on (Requires hold and to take the new call. subscription from Press HOME/FLASH on the handset at any time to switch telephone) back and forth between calls. Push-to-talk (PTT) You can use a handset to initiate two-way talk with other system handsets. -
Page 22: Phonebook
Phonebook The phonebook can store up to 1,200 entries, which are shared by all system devices. Operation Steps Adding an entry in MENU -> -> Phonebook -> SELECT. the phonebook -> Add contact -> SELECT. 3. Enter a telephone number up to 30 digits -> SELECT . 4. -
Page 23: Caller Id
Caller ID This product supports caller ID services offered by most telephone service providers. The telephone stores caller ID information of the last 50 incoming calls in the telephone base. This information is common to all devices. Call lD announce 1. -
Page 24: Answering System
Answering system About answering system and voicemail Your telephone has separate indicators for two different types of voice messages: those left on the built-in answering system and those left at your telephone service provider’s voicemail. To listen to messages recorded on the built-in answering system, refer to the Message playback section;... -
Page 25: Turn Answering System On Or Off
Answering system Turn answering system on or off The answering system must be turned on to answer and record messages. Using a cordless handset: MENU -> -> Answering sys -> SELECT. -> Answer on/off -> SELECT. to choose On or Off-> SELECT. When the answering system is on, the handset shows ANS ON. -
Page 26: Message Playback
Answering system Message playback Using the telephone base: /PLAY/STOP when the telephone base is in idle mode. Press Ì Using a cordless handset: Press MENU then SELECT when the handset is in idle mode. Ì Options during playback Feature On the telephone base On a handset Press VOL - or VOL + Adjust playback to... -
Page 27: For C-Ul Compliance
For C-UL compliance In compliance with the bilingual requirements for safety, caution, and warning markings of Canadian Federal and Provincial/Territorial statutes and regulations, the French version of Important safety information is included. Mesures de sécurité importantes Ce symbole vous alertera d’informations importantes ou d’instructions d’entretien pouvant apparaître dans ce guide d’utilisation. - Page 28 For C-UL compliance Remplacez les piles uniquement tel que décrit dans votre guide d’utilisation (Page 6). N’incinérez pas et ne percez pas les piles — elles contiennent des produits chimiques caustiques. L’adaptateur de courant est conçu pour être orienté verticalement ou installé sur le plancher.
- Page 29 For C-UL compliance Spécifiquement en rapport avec les téléphones sans fil Confidentialité : Les mêmes caractéristiques qui rendent les téléphones sans fil si pratiques créent également des restrictions. Les appels téléphoniques sont transmis entre le socle du téléphone et le combiné par le biais d’ondes radio, et il se peut que vos conversations téléphoniques soient interceptées par d’autres équipements de réception d’ondes radio au sein de la portée du téléphone sans fil.
- Page 30 For C-UL compliance Mesures préventives pour les utilisateurs de stimulateurs cardiaques implantés dans l’organisme Stimulateurs cardiaques (ne s’applique qu’aux téléphones sans fil numériques) : L’organisme ‘Wireless Technology Research, LLC (WTR)’, une firme de recherche indépendante, a mené une évaluation pluridisciplinaire des interférences entre les téléphones sans fil portatifs et les stimulateurs cardiaques implantés dans l’organisme.
-
Page 31: Fcc Part 68 And Acta
FCC Part 68 and ACTA This equipment complies with Part 68 of the FCC rules and with technical requirements adopted by the Administrative Council for Terminal Attachments (ACTA). The label on the back or bottom of this equipment contains, among other things, a product identifier in the format US:AAAEQ##TXXXX. -
Page 32: Fcc Part 15
Industry Canada This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. -
Page 33: Limited Warranty
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this telephone. - Page 34 3. How long is the limited warranty period? The limited warranty period for SynJ® and Syn248® products is TWO (2) YEARS from the date of purchase, while all other products limited warranty period is ONE (1) YEAR from the date of purchase. If we replace a Materially Defective Product under the terms of this limited warranty, this limited warranty also applies to replacement Products for a period of either (a) 90 days from the date the replacement Product is shipped to you or (b) the time remaining on the...
- Page 35 2. Include “valid proof of purchase” (sales receipt) identifying the Product purchased (Product model) and the date of purchase or receipt; and 3. Provide your name, complete and correct mailing address and telephone number. 7. Other limitations This warranty is the complete and exclusive agreement between you and Advanced American Telephones.
-
Page 36: Technical Specifications
Technical specifications RF frequency band 1921.536MHz — 1928.448MHz Channels Telephone base voltage 96 — 130 Vrms (AC voltage, 60Hz) Telephone base voltage 6VDC @0.4A (DC adapter output) Charger voltage 6VDC @0.4A (DC adapter output) Handset voltage 2.4 VDC, AAA x 2, Ni-MH Operating times* Talk time (handset): up to 10 hours Standby: up to 5 days...
Need help?
Do you have a question about the DLP72362 and is the answer not in the manual?
Questions and answers
Phone calls go straight to voicemail. The phone doesn't ring. How do I fix this?
To fix the issue of phone calls going straight to voicemail on the AT&T DLP72362, try the following steps:
1. Make sure the answering system is turned on.
2. Check that the answering system memory is not full. If it is full, delete some old messages.
3. If you subscribe to a voicemail service, change the number of rings so the answering system picks up before voicemail.
4. If a fax machine is connected to the same line, disconnect it and test again. If that fixes the issue, check the fax machine's compatibility with answering systems.
5. If the phone is not responding normally, try resetting it by disconnecting the power and reconnecting it.
If the issue continues, contact your telephone service provider.
This answer is automatically generated
Setting up new Bluetooth phone, unable to receive incoming calls
To set up the AT&T DLP72362 Bluetooth phone to receive incoming calls, follow these steps:
1. Pair Your Cell Phone
- Ensure your cell phone has Bluetooth turned on.
- Press and hold CELL 1 or CELL 2 on the telephone base for about four seconds until the light flashes.
- Place your cell phone near the telephone base and search for new Bluetooth devices.
- Select the AT&T phone from the list and complete the pairing process.
2. Ensure Connection
- The CELL 1 or CELL 2 light should be on, indicating a successful connection.
- Keep the connected cell phone within 15 feet of the telephone base for optimal performance.
3. Answering Calls
- When a call comes in, you can answer using the handset or speakerphone.
- If Smart Call Blocker is enabled, follow the voice guide after installation to configure call filtering options.
This setup allows you to receive incoming Bluetooth calls on your AT&T DLP72362 phone.
This answer is automatically generated
where do i finf info on modelclp99587
You can find information on the AT&T DLP72362 model in the complete user’s manual available online at https://telephones.att.com/manuals.
This answer is automatically generated
How to cancel smart call blocker on AT&T phone model DLP72362
The manual states that Smart Call Blocker is a feature on the AT&T DLP72362 phone. To cancel or turn off Smart Call Blocker, follow these steps:
1. Press MENU on the handset.
2. Use the ▲ or ▼ keys to navigate to Smart call blk and press SELECT.
3. Select Call screening.
4. Choose Screening and set it to Off.
5. Press SELECT to confirm.
This will disable the Smart Call Blocker feature, allowing all calls to come through without screening.
This answer is automatically generated
how to answer call when caller presses 9 to get their call go thru? Receiving end will not allow me to answer the caller
DLP 72362 voice mail set up please gelp
