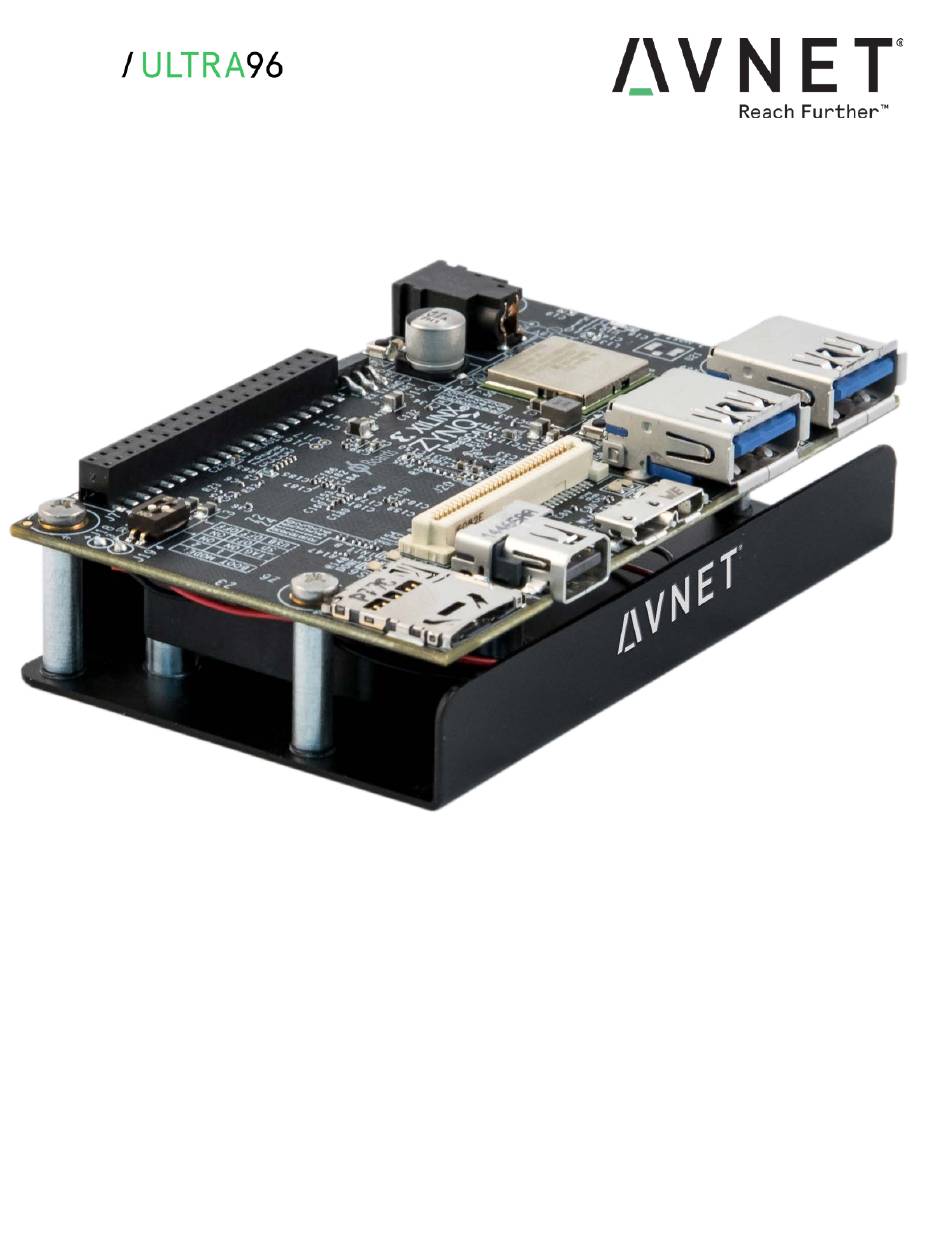

Ultra96-V1 Single Board Computer
Hardware User's Guide
Version 1.1
Page 1
Copyright © 2020 Avnet, Inc. AVNET, "Reach Further," and the AV logo are registered
trademarks of Avnet, Inc. All other brands are the property of their respective owners.
LIT# Ultra96-HW-User-Guide-rev-1-0-V1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ultra96-V1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avnet Ultra96-V1

Summary of Contents for Avnet Ultra96-V1

  • Page 1 Ultra96-V1 Single Board Computer Hardware User’s Guide Version 1.1 Page 1 Copyright © 2020 Avnet, Inc. AVNET, “Reach Further,” and the AV logo are registered trademarks of Avnet, Inc. All other brands are the property of their respective owners. LIT# Ultra96-HW-User-Guide-rev-1-0-V1.1...

  • Page 2: Table Of Contents

    End of Life ......................3 Introduction ......................4 Glossary ........................... 5 Reference Documents ......................5 Ultra96-V1 Architecture and Features ..............6 List of Features ........................6 Ultra96-V1 Block Diagram ....................... 7 Functional Description ................... 8 Zynq UltraScale+ MPSoC ......................8 6.1.1...

  • Page 3: Document Control

    Ultra96-V2. To help with the nomenclature, the original Ultra96 is now referred to as Ultra96-V1. The term Ultra96 may be used to refer to the family, meaning both Ultra96-V1 and Ultra96-V2.

  • Page 4: Introduction

    4 Introduction The main purposes of the Ultra96-V1 Single Board Computer are: • Provide a Xilinx entry in the 96Boards community • Combine ARM processing with programmable logic in a convenient and expandable board • Showcase a wide range of potential peripherals and acceleration engines in the programmable logic that is not available from other 96Boards offerings •...

  • Page 5: Glossary

    Glossary Term Definition Zynq UltraScale+ MPSoC Processing System Zynq UltraScale+ MPSoC Programmable Logic PS Multiplexed Input Output Pins Power On Reset Application Processing Unit Real-time Processing Unit Graphics Processing Unit SYSMON System Monitor High Density PL I/O Pins High Performance PL I/O Pins PMBus Power Management Bus Reference Documents...

  • Page 6: Ultra96-V1 Architecture And Features

    5 Ultra96-V1 Architecture and Features This section summarizes the features of the development board, followed by functional descriptions of each circuit. List of Features The Ultra96-V1 Single Board Computer supports the following features: • Zynq UltraScale+ MPSoC ZU3EG SBVA484 •...

  • Page 7: Ultra96-V1 Block Diagram

    Ultra96-V1 Block Diagram Figure 1 – Ultra96-V1 Block Diagram Page 7...

  • Page 8: Functional Description

    6 Functional Description The following sections provide brief descriptions of each feature provided on the Ultra96-V1 board. Zynq UltraScale+ MPSoC The Zynq UltraScale+ MPSoC ZU3EG device (in the SBVA484 package) contains: • Processor System (PS): Application Processing Unit Quad-core ARM Cortex-A53 MPCore with CoreSight; NEON & Single/Double Precision Floating Point;...

  • Page 9: Sbva484 Package

    6.1.1 SBVA484 Package Figure 2 – SBVA484 Package Diagram Page 9...

  • Page 10: I/Os (Banks 26, 65, 66)

    ZU3EG provides one HD bank (Bank 26) with 24 pins, one HP bank (Bank 65) with 52 pins, and another HP bank (Bank 66) with 6 pins. The PL I/Os on Ultra96-V1 are tied to the Low-Speed 96Boards Mezzanine, the High-Speed 96Boards Mezzanine, Bluetooth, and the fan.
  • Page 11 Table 2 – PL IO Bank 65 MPSoC Pin Number Bank MPSoC Site Name Function IO_T3U_N12_65 IO_L7N_T1L_N1_QBC_AD13N_65 Expansion IO_L7P_T1L_N0_QBC_AD13P_65 IO_L8N_T1L_N3_AD5N_65 IO_L8P_T1L_N2_AD5P_65 IO_L9N_T1L_N5_AD12N_65 IO_L9P_T1L_N4_AD12P_65 IO_L10N_T1U_N7_QBC_AD4N_65 IO_L10P_T1U_N6_QBC_AD4P_65 IO_L11N_T1U_N9_GC_65 IO_L11P_T1U_N8_GC_65 IO_L1N_T0L_N1_DBC_65 IO_L1P_T0L_N0_DBC_65 IO_L2N_T0L_N3_65 IO_L2P_T0L_N2_65 IO_L3N_T0L_N5_AD15N_65 IO_L3P_T0L_N4_AD15P_65 IO_L16N_T2U_N7_QBC_AD3N_65 IO_L16P_T2U_N6_QBC_AD3P_65 IO_L19N_T3L_N1_DBC_AD9N_65 IO_L19P_T3L_N0_DBC_AD9P_65 IO_L20N_T3L_N3_AD1N_65 IO_L20P_T3L_N2_AD1P_65 IO_L21N_T3L_N5_AD8N_65 IO_L21P_T3L_N4_AD8P_65 IO_L22N_T3U_N7_DBC_AD0N_65 IO_L22P_T3U_N6_DBC_AD0P_65...
  • Page 12 IO_L13N_T2L_N1_GC_QBC_65 IO_L13P_T2L_N0_GC_QBC_65 IO_L15P_T2L_N4_AD11P_65 IO_L14N_T2L_N3_GC_65 IO_L14P_T2L_N2_GC_65 VREF_65 IO_L12N_T1U_N11_GC_65 IO_L12P_T1U_N10_GC_65 IO_T1U_N12_65 IO_L6P_T0U_N10_AD6P_65 IO_L5P_T0U_N8_AD14P_65 IO_L4P_T0U_N6_DBC_AD7P_SMBALERT_65 IO_L6N_T0U_N11_AD6N_65 IO_L5N_T0U_N9_AD14N_65 IO_L4N_T0U_N7_DBC_AD7N_65 IO_T0U_N12_VRP_65 Table 3 – PL IO Bank 66 MPSoC Pin Bank MPSoC Site Name Function Number IO_T3U_N12_66 HS Expansion IO_L12N_T1U_N11_GC_66 IO_L12P_T1U_N10_GC_66 IO_L11N_T1U_N9_GC_66 IO_L11P_T1U_N8_GC_66 IO_T0U_N12_VRP_66 VREF_66 Page 12...

  • Page 13: Ps Mios (Banks 500, 501, 502)

    6.1.3 PS MIOs (Banks 500, 501, 502) Table 4 – MIO Overview Bank 500 1.80V UART1 UART0 I2C1 SPI1 SPI1 WE BE PB SD0 USB Bank 501 1.80V DPAUX PMIC SPI0 PK TP SPI0 Bank 502 1.80V USB0 USB1 UART1 - Header UART0 - Bluetooth (+ PL RTS/CTS) I2C1 - I2C Hub SPI1 - HS Expansion Header...
  • Page 14 Table 5 – MIO Bank 500 (MIOs 0 to 25) Bank Pin # Device Signal Notes 0 UART1 MIO0_UART1_TX UART Header J6 MIO1_UART1_RX 2 UART0 MIO2_UART0_RX_BT_HCI_TX WL1831 B MIO3_UART0_TX_BT_HCI_RX 4 I2C1 MIO4_I2C1_SCL I2C Mux MIO5_I2C1_SDA 6 SPI1 MIO6_SPI1_SCLK Hi-speed Expansion Header 7 GPIO MIO7_WLAN_EN...
  • Page 15 Table 6 – MIO Bank 501 (MIOs 26 to 51) Bank Pin # Device Signal Notes 26 GPIO MIO26_POWER_INT_B Pushbutton On/Off Controller Interrupt, Pushbutton turn-off event detected 27 DPAUX MIO27_DP_AUX_OUT DPAUX single-ended output MIO28_DP_HPD DPAUX Hot Plug Detect MIO29_DP_OE DPAUX Output Enable MIO30_DP_AUX_IN DPAUX single-ended input 31 GPIO...
  • Page 16 Table 7 – MIO Bank 502 (MIOs 52 to 77) Bank Pin # Device Signal Notes 52 USB0 MIO52_USB0_CLK USB0 Clock MIO53_USB0_DIR USB0 Data bus direction MIO54_USB0_DATA2 USB0 Data 2 MIO55_USB0_NXT USB0 Data flow MIO56_USB0_DATA0 USB0 Data 0 MIO57_USB0_DATA1 USB0 Data 1 MIO58_USB0_STP USB0 Stop transfer MIO59_USB0_DATA3...

  • Page 17: Ps Bank 503

    6.1.4 PS Bank 503 Mode, config, PSJTAG, error, SRST, and POR. Bank 503 contains system-level pins, including Table 8 – PS Bank 503 MPSoC Pin Bank MPSoC Site Name Number PS_ERROR_OUT_503 PS_ERROR_STATUS_503 PS_INIT_B_503 PS_MODE1_503 PS_MODE2_503 PS_MODE3_503 PS_PADI_503 PS_PADO_503 PS_POR_B_503 PS_REF_CLK_503 PS_SRST_B_503 Page 17...

  • Page 18: Ps Bank 504

    6.1.5 PS Bank 504 Bank 504 contains the DDR Controller pins which are connected to LPDDR4 on Ultra96-V1. Table 9 – PS Bank 504 MPSoC Pin Bank MPSoC Site Name Number AA22 PS_DDR_A0_504 AB20 PS_DDR_A1_504 AB17 PS_DDR_A2_504 AB19 PS_DDR_A3_504 AB21...
  • Page 19 AA12 PS_DDR_DQ10_504 AB12 PS_DDR_DQ11_504 PS_DDR_DQ12_504 AA14 PS_DDR_DQ13_504 PS_DDR_DQ14_504 AB15 PS_DDR_DQ15_504 PS_DDR_DQ16_504 PS_DDR_DQ17_504 PS_DDR_DQ18_504 PS_DDR_DQ19_504 PS_DDR_DQ20_504 PS_DDR_DQ21_504 PS_DDR_DQ22_504 PS_DDR_DQ23_504 PS_DDR_DQ24_504 PS_DDR_DQ25_504 PS_DDR_DQ26_504 PS_DDR_DQ27_504 PS_DDR_DQ28_504 PS_DDR_DQ29_504 PS_DDR_DQ30_504 PS_DDR_DQ31_504 PS_DDR_DQS_N0_504 AA13 PS_DDR_DQS_N1_504 PS_DDR_DQS_N2_504 PS_DDR_DQS_N3_504 PS_DDR_DQS_P0_504 PS_DDR_DQS_P1_504 PS_DDR_DQS_P2_504 PS_DDR_DQS_P3_504 PS_DDR_RAM_RST_N_504 PS_DDR_ZQ_504 Page 19...

  • Page 20: Ps Bank 505

    6.1.6 PS Bank 505 Bank 505 contains the transceivers. Table 10 – PS Bank 505 MPSoC Pin Bank MPSoC Site Name Number PS_MGTREFCLK0N_505 PS_MGTREFCLK0P_505 PS_MGTREFCLK1N_505 PS_MGTREFCLK1P_505 PS_MGTRTXN0_505 PS_MGTRTXP0_505 PS_MGTRTXN1_505 PS_MGTRTXP1_505 PS_MGTRRXN2_505 PS_MGTRRXP2_505 PS_MGTRTXN2_505 PS_MGTRTXP2_505 PS_MGTRRXN3_505 PS_MGTRRXP3_505 PS_MGTRTXN3_505 PS_MGTRTXP3_505 PS_MGTRREF_505 PS_MGTREFCLK3P_505 PS_MGTREFCLK3N_505 PS_MGTREFCLK2P_505 PS_MGTREFCLK2N_505...

  • Page 21: Lpddr4 Memory

    MT53B512M32D2NP-062 WT:C. microSD Card Ultra96-V1 provides a microSD card socket as the primary boot device. VCCO for MIO1 is 1.80V thus a level shifter is required. A Maxim MAX13035E is used. When available, the Ultra96-V1 kit ships with a Delkin Devices “Utility” 16 GB Industrial MLC microSD card, pre-programmed with Linux boot.

  • Page 22: Usb

    Ultra96-V1 provides one upstream (device) and two downstream (host) USB 3.0 connections. A USB 2.0 downstream (host) interface is provided on the high speed expansion bus. Two Microchip USB3320 USB 2.0 ULPI Transceivers and one Microchip USB5744 4-Port SS/HS USB Controller Hub are specified.

  • Page 23: Wi-Fi / Bluetooth

    Ultra96-V1 supports one Mini DisplayPort output. A TE Connectivity 2129320-3 provides the Mini DisplayPort connectivity. UART Ultra96-V1 provides access to one UART on the baseboard. PS UART1 (MIO0, MIO1) is connected to a 3-pin 2mm header (J6). Table 12 – Pinout for the J6 UART Header...

  • Page 24: User Leds

    6.10 MPSoC Thermal Bracket with Fan The Ultra96-V1 uses a thermal bracket with fan for the MPSoC device. The bracket is mounted to the bottom side of the Ultra96-V1 to help dissipate heat. A Sunon MC30060V1-000U-A99 fan is used, connected to 5V and GND at J18 and J19. Users can control the fan using signal FAN_PWM from PL IO F4 on Bank 65.
  • Page 25 Table 13 – Low Speed Expansion Connector Ultra96 96Boards Pin # Pin # 96Boards Ultra96 HD_GPIO0 UART0_CTS PWR_BTN_N PWR_BTN_N HD_GPIO1 UART0_TxD RST_BTN_N RST_BTN_N HD_GPIO2 UART0_RxD SPI0_SCLK PS_MIO38 HD_GPIO3 UART0_RTS SPI0_DIN PS_MIO42 HD_GPIO4 UART1_TxD SPI0_CS PS_MIO41 HD_GPIO5 UART1_RxD SPI0_DOUT PS_MIO43 PS_I2C0_SCL I2C0_SCL PCM_FS HD_GPIO9...

  • Page 26: High Speed Expansion Connector

    Amphenol FCI 61082-061409LF (or compatible) 60 pin low profile 0.8mm receptacle is specified. Table 14 shows the pinout of the High Speed Expansion Header (Ultra96-V1 column) and the differences from the 96Boards specification (96Boards column). With the exception of SD, I2C2 and I2C3, all dedicated interfaces specified by 96Boards are replaced with GPIO.

  • Page 27: Configuration And Debug

    7 Configuration and Debug Boot Mode Ultra96-V1 supports booting from JTAG and microSD Card. A DIP switch (SW2) is installed to allow selecting the desired boot mode. Figure 5 – Boot Mode Switch (SD Boot Mode Shown) JTAG Configuration and Debug JTAG access to the MPSoC is available through a 1x7 header (J2).

  • Page 28: Power

    EIAJ-3 compliant DC plug available up to 2A, which is 4.75 mm outer diameter with 1.7mm center pin (4.75/1.7), for the power supply • https://en.wikipedia.org/wiki/EIAJ_connector However, there is a bit of flexibility. Avnet offers a 12V supply as an accessory (part number: AES-ACC-U96-4APWR) with the following specifications: • Input: AC 100-240v, 50/60HZ •...

  • Page 29: Power Estimation Using Xpe

    Power Estimator (XPE) spreadsheet is available on Xilinx’ website that can help you get started with your own power estimation. Avnet has also provided an example of this spreadsheet filled out for the Ultra96-V1 under Documentation on the Ultra96-V1 website.

  • Page 30: Power Sequence

    3.3 V 2 ms BUCK4 (VCC_3V3) CTL3 (PS_LP_PWR_EN) CTL5 (PL_PWR_EN) GPO4 (VCCINT enable) 1.8 V 2 ms SWB1_2 (VCCAUX) 1.2 V 2 ms LDOA3 (VCCO_HP) CTL1 (PS_POR_PB_B) 2.5 ms 2.5 ms GPO3* (PS_POR_B) Figure 9 – Ultra96-V1 Power Sequencing Page 30...

  • Page 31: Clocks

    These clocks are generated by a Customizable Quad Clock Generator. 10 Reset Ultra96-V1 Reset is managed by the TI PMIC. At power-up, the ZU3EG is held in reset until all power rails have ramped up and are stable. A pushbutton allows manually resetting the ZU3EG.
