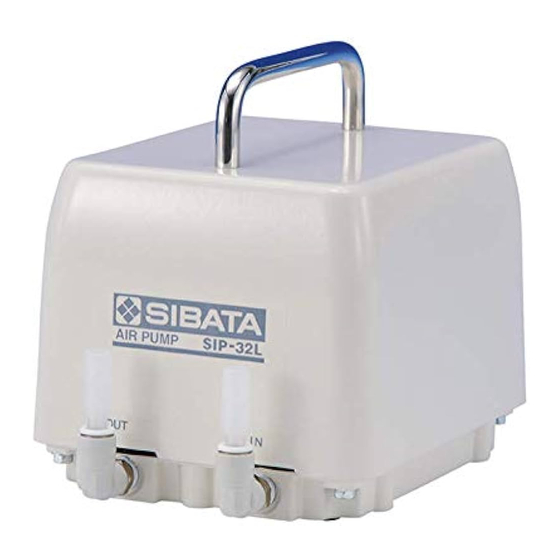

Suction Pump
SIP-32L
OPERATION MANUAL
Thank you for purchasing this product.
Be sure to read this operation manual before use.
Handle this product in accordance with the explanations described in this manual.
After reading this operation manual, keep it with the warranty in a safe place where
they can be referred to at any time.
If you find any unclear points in this manual, please contact your Sibata agent.
SIBATA SCIENTIFIC TECHNOLOGY LTD.
Advertisement
Table of Contents
Related Manuals for Sibata SIP-32L
Summary of Contents for Sibata SIP-32L
- Page 1 After reading this operation manual, keep it with the warranty in a safe place where they can be referred to at any time. If you find any unclear points in this manual, please contact your Sibata agent. SIBATA SCIENTIFIC TECHNOLOGY LTD.
- Page 2 [Modifications and Repairs Are Prohibited] Never disassemble or △ modify this product, as doing so will void the warranty with Sibata. Doing so may also result in an unforeseen fault or accident. If a fault occurs, request repairs immediately. Never leave the fault as is or △...
- Page 3 A buffer is built into the suction mechanism to minimize suction pulsations. It can also be used as a discharge pump. 2 Specifications Item code 080800-32 Model SIP-32L Suction flow rate 40 L/min (with no load) Suction pressure 27 kPa (max.) External diameter: φ11 mm...
- Page 4 3 Composition Switch Power cord Discharge port Suction port Fig.1 4 Instructions for Use Power cord (1) Install the pump on a level surface. (2) Check that the power switch is OFF. Then plug the power plug into the outlet. (3) Check the connections to the pump, and then turn it ON.
- Page 5 Base fastening stand Fig.2 6 Spare Parts (Please purchase them separately.) Item code Product Name 080800-3201 Hose Adapter with Elbow for SIP-32L 080800-3202 Chamber Block Set New Type for SIP-32L 2pcs. 080800-3203 Rod New Type for SIP-32L - 3 -...
- Page 6 The L-tube is damaged. 8 Warranty If a Sibata product fails within one year from date of purchase, it will be repaired free of charge. To request repairs, contact your Sibata representative or the distributor where you purchased the product.
- Page 7 9 External Dimension Diagram Fig.3 20.06.25 K (05) - 5 -...
- Page 8 Note) Shape, dimensions, specifications, and other product information are subject to change without notice in the interest of product improvement to the extent that product functions and applications will not be impaired.
