Sibata SIP-32L Operation Manual

U100 Particle Generator for Fit Testers
This operation manual describes precautions that are
important for preventing accidents as well as procedures used
to handle the product. To ensure the product is used safely and
correctly, read this operation manual thoroughly before using
the product. After reading this manual, keep it carefully stored
in an easily accessible location for future reference.
■
Product Description
This product (hereinafter "particle generator") uses the
separately available DS99009 salt tablets (set of 100) for
particle generators (Item Code: 080200-0751, hereinafter "salt
tablets") to spray NaCl particles into the space, including
particles (0.3 μm or larger) targeted by the fit tester. It is used
when the fit tester's fit test mode is selected, enabling the
concentration of particles required for measurement to be
maintained.
■
Package Contents
Check the contents of the package before using the product.
□
Unit ..................... 1
□
Upper unit ........... 1
□
Lid ....................... 1
Before Use
(Be sure to read the following and be very careful during handling.)
●
Do not use the product near combustible or flammable materials.
●
Do not subject this product to impacts.
●
If this product starts to emit smoke, or makes a strange noise,
immediately stop using it, turn the power OFF, and remove the
power plug from the power outlet.
●
Remove the power plug from the power outlet during long
periods of disuse.
●
When removing the power plug, grip the power plug instead of
pulling on the power cord. When doing so, make sure that
your hands are dry. Otherwise, there is a risk of an electric
shock.
●
Do not bend, pull on, twist, or extend the cord.
●
If cord damage, a broken circuit, or a plug connection failure is
noticed, immediately stop using UV324-2410 AC adapter and
purchase a new one.
CODE 080200-0752
Oper at ion Manual
□
Bottle base .............................. 1
□
UV324-2410 AC adapter ......... 1
□
Special bag ............................. 1
Precautions for Use
(1) Keep the particle generator at least 1 m away from the fit tester,
and keep the air within the space circulating during use.
(2) The particle generator should be used in a room which is
large enough for the particles generated to diffuse quickly
(about 20 m ), and is partitioned off by a door (such as a
2
small meeting room). If the particle generator is used in a
large room that is not partitioned off, the particles generated
might not spread sufficiently within the space.
(3) When performing a fit test using a fit tester (MT-05, MT-05U,
etc.), it is recommended that the particle generator be
operated so as to ensure that the particle count per 10
seconds on the outside of the mask exceeds the value in the
following table. Stop the particle generator if the particle
count exceeds 3x the count in the table below.
Required Concentration for Fit Test Mode
Fit Tester
Particle Size Range
0.3 μm min., or 0.3 to 0.5 μm
0.5 μm min.
(4) Be sure to clean the particle generator properly each time it
is used. If you continue to use it without cleaning it properly,
microorganisms will build up and could be dispersed into the
room air.
■

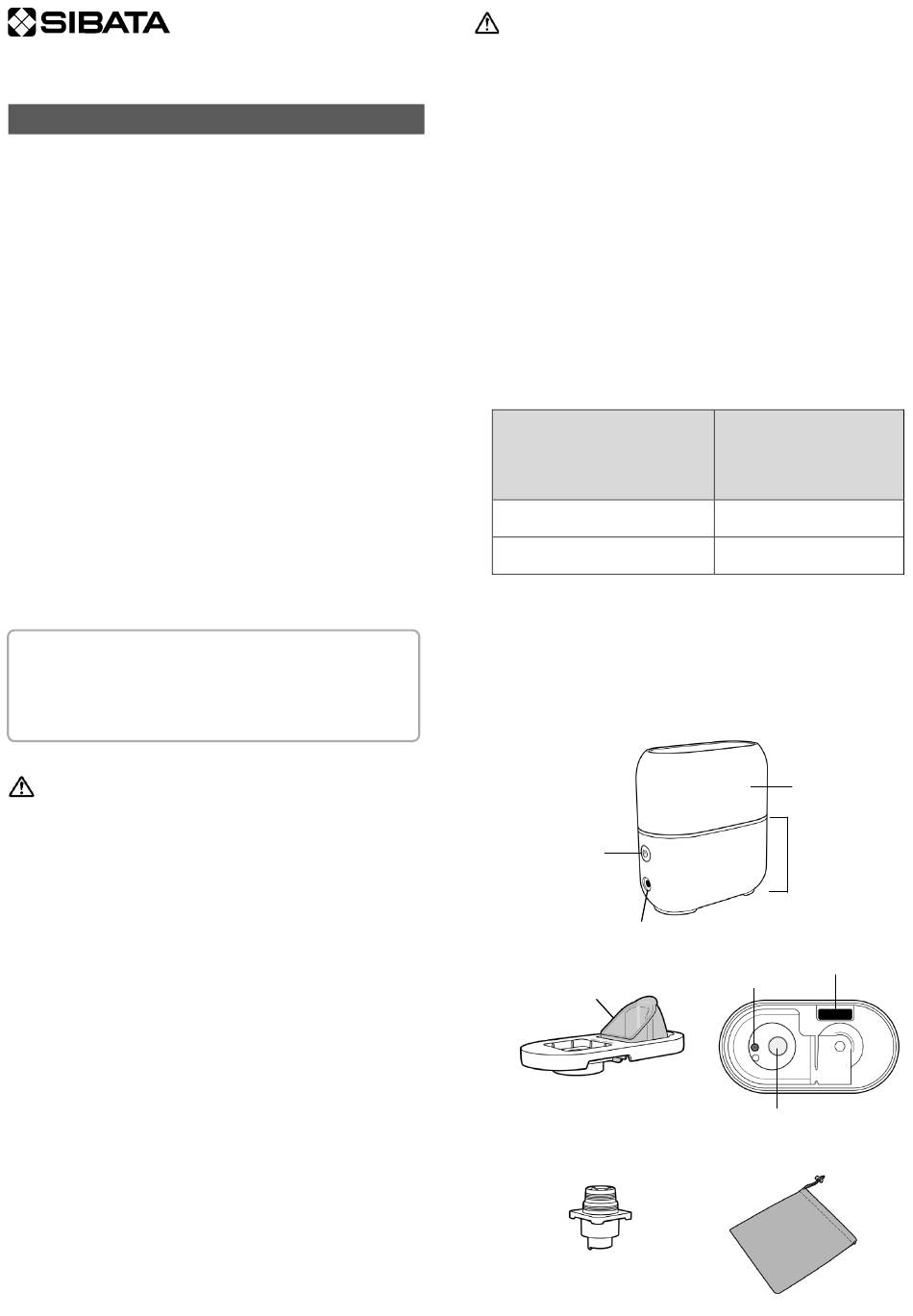

Names of Parts
Power supply button
AC adapter inlet
Mist release nozzle
Upper unit
Bottle base
Operational Guidelines for
the Particle Generator—
Number of Particles
Outside the Mask
30,000 count min.
3,000 count min.
Lid
Unit
Exhaust port
LED light
Oscillator
Unit viewed from above
Special bag
