AutomationDirect Productivity2000 P2-04AD-1 Manual

WARNING:

To minimize the risk of potential safety problems, you should
follow all applicable local and national codes that regulate the installation
and operation of your equipment. These codes vary from area to area and
it is your responsibility to determine which codes should be followed, and to
verify that the equipment, installation, and operation are in compliance with
the latest revision of these codes.
Equipment damage or serious injury to personnel can result from the
failure to follow all applicable codes and standards. We do not guarantee
the products described in this publication are suitable for your particular
application, nor do we assume any responsibility for your product design,
installation, or operation.
If you have any questions concerning the installation or operation of this
equipment, or if you need additional information, please call Technical
Support at 770-844-4200.
This publication is based on information that was available at the time it
was printed. At AutomationDirect.com
our products and services, so we reserve the right to make changes to
the products and/or publications at any time without notice and without
any obligation. This publication may also discuss features that may not be
available in certain revisions of the product.

Removable Terminal Block Specifications

Part Number
P2-RTB
Number of
18 Screw Terminals
positions
30-16 AWG (0.051-1.31 mm²)
Solid / Stranded Conductor
Wire Range
3/64 in. (1.2 mm) Insulation Maximum
1/4 in (6-7 mm) Strip Length
Conductors "USE COPPER CONDUCTORS, 75ºC" or equivalent.
Screw Driver
Width
Screw Size M2
Screw Torque 2.5 lb·in (0.28 N·m)
Sales 800-633-0405
we constantly strive to improve
®
P2-RTB-1
18 Spring Clamp Terminals
28-16 AWG (0.081-1.31 mm²)
Solid / Stranded Conductor
3/64 in (1.2 mm) Insulation Maximum
19/64 in (7-8 mm) Strip Length
1/8 in (3.8 mm) Maximum
N/A
N/A

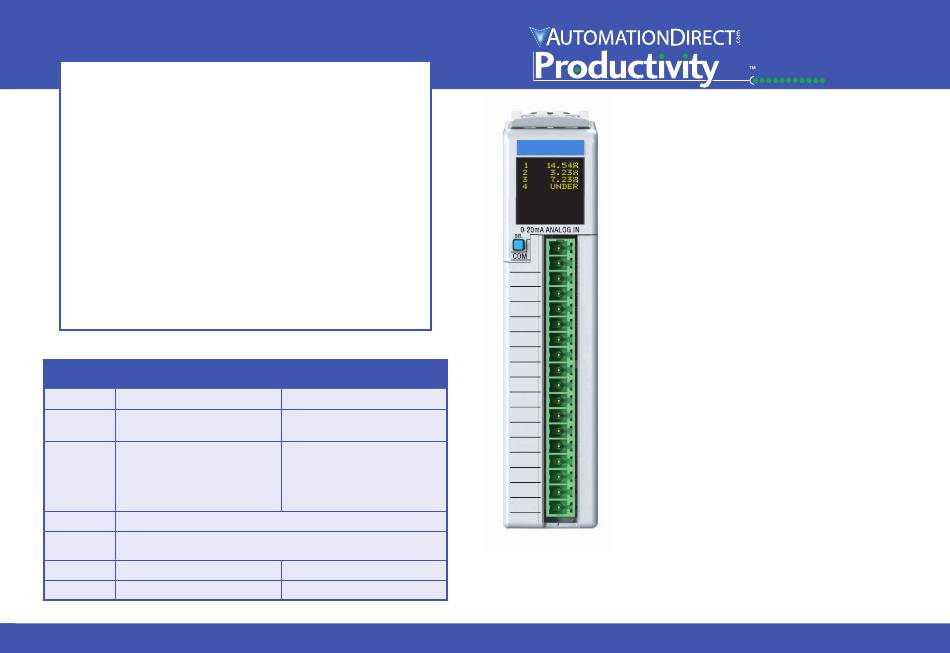

P2-04AD-1 Analog Input
P2-04AD-1
The P2-04AD-1 Current Analog Input Module provides
four channels for receiving 0-20 mA signals for use
with the Productivity2000 system.
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Removable Terminal Block Specifications. . . . . . . . 1
General Specifications . . . . . . . . . . . . . . . . . . . . . . 2
Input Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 2
I1+
Wiring Diagram and Schematic . . . . . . . . . . . . . . . . 3
I2+
Module Installation Procedure . . . . . . . . . . . . . . . . . 4
I3+
QR Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
I4+
Hot Swap Information . . . . . . . . . . . . . . . . . . . . . . . 4
Wiring Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Module Configuration . . . . . . . . . . . . . . . . . . . . . . . 5
Linear Scaling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Non-Linear Scaling . . . . . . . . . . . . . . . . . . . . . . . . . 6
OLED Panel Display Menus . . . . . . . . . . . . . . . . . . 7
COM
Diagnostic/Status. . . . . . . . . . . . . . . . . . . . . . . . . . . 8
COM
COM
COM
COM
COM
COM
0V
24V+
Terminal Block sold separately, (see wiring options on page 5).
Warranty: Thirty-day money-back guarantee. Two-year limited
replacement. (See www.productivity2000.com for details).
www.productivity2000.com
2000
