AutomationDirect T1F-08DA-2 Manual

1 - 8 0 0 - 6 3 3 - 0 4 0 5
Analog Voltage Output Module
T1F-08DA-2 $480.00
8-channel
analog voltage output module
The 8-channel voltage output module uses
a T1K-08B or T1K-08B-1 base, which is
purchased separately.
w w w . a u t o m a t i o n d i r e c t . c o m
T1F-08DA-2 Analog Output Specification
Number of Channels
Output Ranges
Output Type
Resolution
Peak Output Voltage
Load Impedance
Load Capacitance
Linearity Error (end to end)
Conversion Settling Time
Full Scale Calibration Error
Offset Calibration Error
Accuracy vs. Temperature
Max. Full Scale Inaccuracy (% of full scale).
all errors included
Master Update Rate
Output Points Required
Base Power Required
External Module Power Required
Weight
NOTES:
1: Shields should be connected to the 0V terminal of the module or the 0V of the power supply.
2. Unused current outputs should remain open (no connections) for minimum power consumption.
For the latest prices, please check AutomationDirect.com.
8
0–5 V, 0–10V, ± 5V, ± 10V
Single-ended, 1 common
12-bit (1 in 4096)
15VDC
4kq min.
0.01µF max.
± 2 counts max.
± 0.05% of full scale max.
100µs max. full scale change
± 12 counts max.
10V ranges: ± 6 counts max.
5V ranges: ± 11 counts max.
± 50 ppm/°C
full scale calibration change
10V ranges: 0.2% @ 25°C
5V ranges: 0.3% @ 25°C
8 channels per scan max.
256 discrete pts. or 8 Dwords (32-bit words)
(network interface dependent)
75mA @ 5VDC
21.6–26.4 VDC, 150mA, class 2
145g

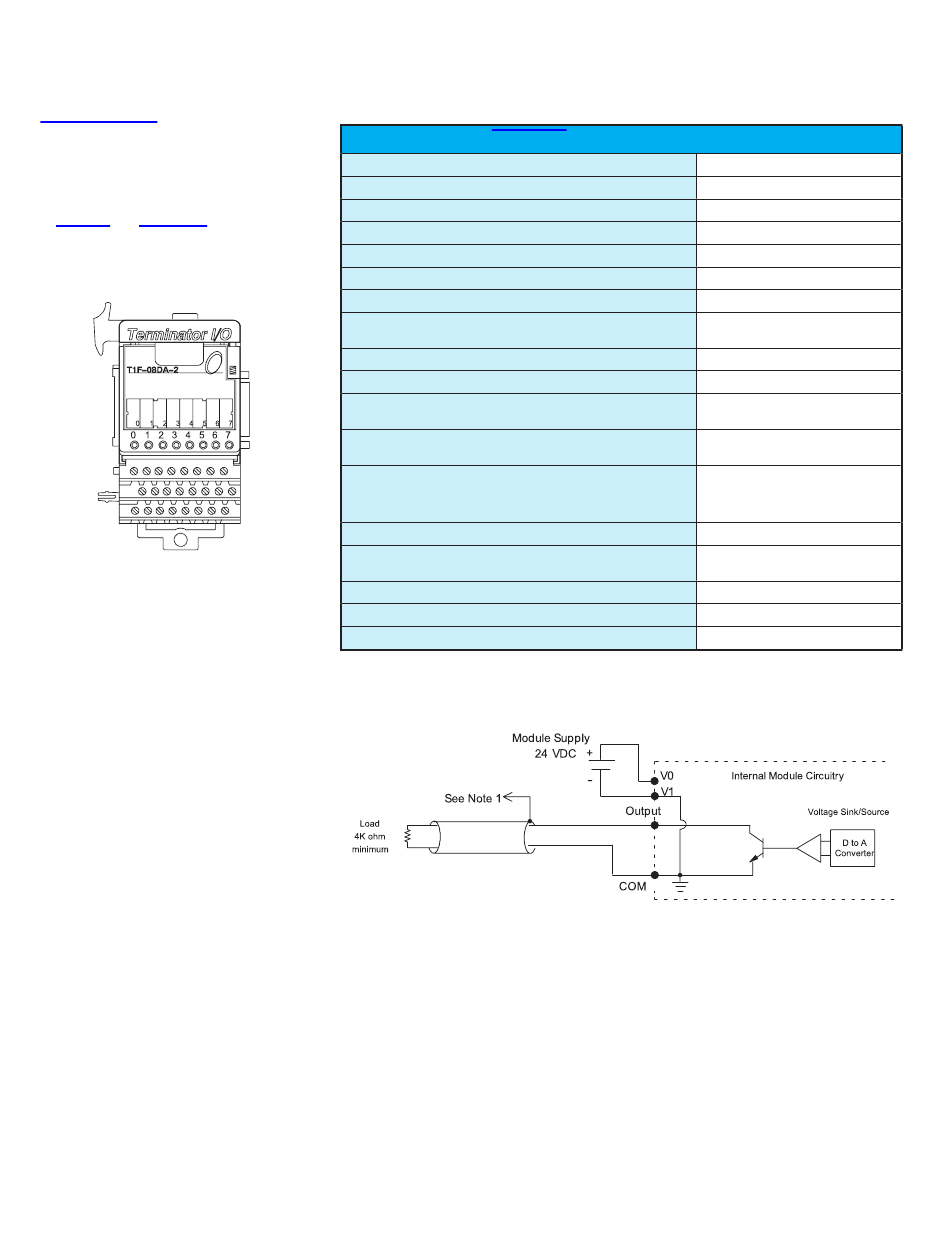

Equivalent Output Circuit
Universal Field I/O
0.4% @ 60°C
0.5% @ 60°C
tFED-89
