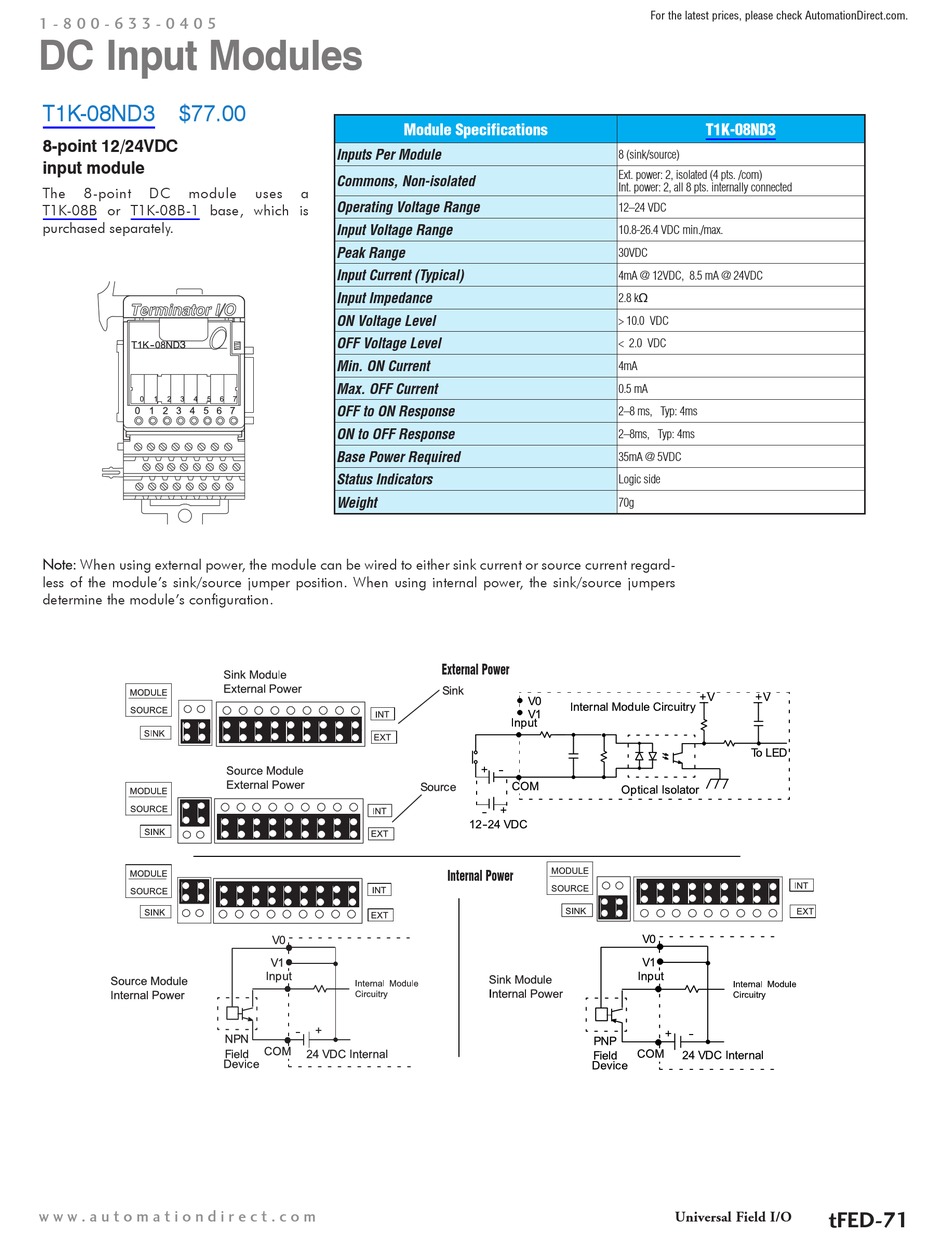

AutomationDirect T1K-08ND3 Quick Start Manual

1 - 8 0 0 - 6 3 3 - 0 4 0 5
DC Input Modules
T1K-08ND3 $77.00
8-point 12/24VDC
input module
The 8-point DC module
T1K-08B or T1K-08B-1 base, which is
purchased separately.
Note: When using external power, the module can be wired to either sink current or source current regard-
less of the module's sink/source jumper position. When using internal power, the sink/source jumpers
determine the module's configuration.
w w w . a u t o m a t i o n d i r e c t . c o m
Module Specifications
Inputs Per Module
Commons, Non-isolated
uses a
Operating Voltage Range
Input Voltage Range
Peak Range
Input Current (Typical)
Input Impedance
ON Voltage Level
OFF Voltage Level
Min. ON Current
Max. OFF Current
OFF to ON Response
ON to OFF Response
Base Power Required
Status Indicators
Weight
8 (sink/source)
Ext. power: 2, isolated (4 pts. /com)
Int. power: 2, all 8 pts. internally connected
12–24 VDC
10.8-26.4 VDC min./max.
30VDC
4mA @ 12VDC, 8.5 mA @ 24VDC
2.8 kq
> 10.0 VDC
< 2.0 VDC
4mA
0.5 mA
2–8 ms, Typ: 4ms
2–8ms, Typ: 4ms
35mA @ 5VDC
Logic side
70g
External Power
Internal Power
For the latest prices, please check AutomationDirect.com.
T1K-08ND3
tFED-71
Universal Field I/O
