AutomationDirect Productivity2000 P2-8AD4DA-2 Manual

Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual

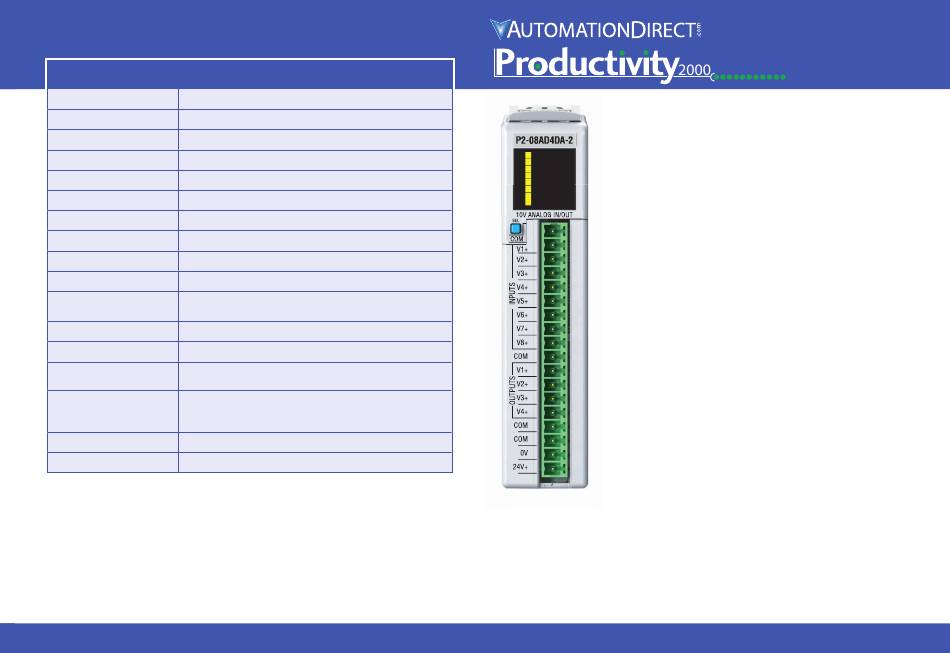

General Specifications

Operating Temperature
0º to 60ºC (32º to 140ºF)
Storage Temperature
-20º to 70ºC (-4º to 158ºF)
Humidity
5 to 95% (non-condensing)
Environmental Air
No corrosive gases permitted
Vibration
IEC60068-2-6 (Test Fc)
Shock
IEC60068-2-27 (Test Ea)
Field to Logic Side Isolation
1800VAC applied for 1 second
Insulation Resistance
> 10MΩ @ 500VDC
Heat Dissipation
1.95 W
Enclosure Type
Open Equipment
UL 61010-1 and UL 61010-2-201 File E139594, Canada & USA
Agency Approvals
CE (EN 61131-2 EMC, EN 61010-1 and EN 61010-2-201 Safety)*
Module Keying to Backplane
Electronic
Module Location
Any I/O slot in a Productivity2000 System
Use ZIPLink Wiring System or removable terminal block (not
Field Wiring
included). See "Wiring Options" on page 5.
See the "EU Directive" topic in the Productivity2000 Help File.
EU Directive
Information can also be obtained at:
www.productivity2000.com
Connector Type (not included) 18-Position Removable Terminal Block
Weight
90g (3.2 oz)
*Meets EMC and Safety requirements. See the D.O.C. for details.
Sales 800-633-0405
®
P2-8AD4DA-2
Analog Input/Output
1I00.00V
2I00.00V
The P2-8AD4DA-2 Voltage Analog Input/Output
3I00.00V
4I00.00V
Module provides eight channels of 0-10 VDC
5I00.00V
6I00.00V
inputs and four channels of 0-10 VDC outputs
7I00.00V
8I
SPARE
for use with the Productivity2000 System.
General Specifications . . . . . . . . . . . . . . . . . . . . . . 1
Input Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 2
Output Specifications . . . . . . . . . . . . . . . . . . . . . . . 2
Wiring Diagram and Schematic . . . . . . . . . . . . . . . . 3
Module Installation Procedure . . . . . . . . . . . . . . . . . 4
QR Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Hot Swap Information . . . . . . . . . . . . . . . . . . . . . . . 4
Wiring Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Module Configuration . . . . . . . . . . . . . . . . . . . . . . . 5
Linear Scaling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Non-Linear Scaling . . . . . . . . . . . . . . . . . . . . . . . . . 6
OLED Panel Display Menus . . . . . . . . . . . . . . . . . . 7
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Terminal Block sold separately, (see wiring options on page 5).
Warranty: Thirty-day money-back guarantee. Two-year limited replacement.
(See www.productivity2000.com for details).
www.productivity2000.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Productivity2000 P2-8AD4DA-2 and is the answer not in the manual?

Questions and answers

Related Manuals for AutomationDirect Productivity2000 P2-8AD4DA-2

Summary of Contents for AutomationDirect Productivity2000 P2-8AD4DA-2

  • Page 1: Table Of Contents

    ® General Specifications Operating Temperature 0º to 60ºC (32º to 140ºF) P2-8AD4DA-2 Storage Temperature -20º to 70ºC (-4º to 158ºF) Analog Input/Output Humidity 5 to 95% (non-condensing) 1I00.00V Environmental Air No corrosive gases permitted 2I00.00V The P2-8AD4DA-2 Voltage Analog Input/Output 3I00.00V 4I00.00V Module provides eight channels of 0-10 VDC...

  • Page 2: Input Specifications

    Input Specifications Output Specifications Input Channels 8 inputs (1 common) Output Channels 4 (1 common) Input Ranges 0–5 VDC, 0–10 VDC Module Signal Output Range 0–10 VDC, 0–5 VDC Signal Resolution 12–16 bit, depending on input resolution Output Signal Resolution 16-bit 0–5 V = 76μV/count 0 - 5V Input Resolution &...

  • Page 3: Wiring Diagram And Schematic

    Wiring Diagram Schematic Voltage Input Circuits INTERNAL 4-Wire Voltage MODULE CIRCUITRY Transmitter Transmitter AC or DC Power Supply 4-Wire Transmitter CH1 ADC CH2 ADC CH3 ADC 3-Wire Voltage CH4 ADC Transmitter – CH5 ADC CH6 ADC 24 VDC User 3-Wire Transmitter CH7 ADC Supplied Power CH8 ADC...

  • Page 4: Module Installation Procedure

    Before attempting to use the hot- swap feature, be sure to read the hot-swap topic in the programming software’s help file or our online documen- tation at AutomationDirect.com for details on how to plan your installation for use of this powerful feature. www.productivity2000.com...

  • Page 5: Wiring Options

    Module Configuration Wiring Options ZIPLink Feed Through Modules and Cables¹ Using the Hardware Configuration tool in the Productivity Suite programming software, drag and drop the P2-8AD4DA-2 module into the base configuration. ZL-RTB20 Select Automatic Module Verification or No Verification and Enable Hot ZL-RTB20-1 Swap.

  • Page 6: Linear Scaling

    Linear Scaling Non-Linear Scaling The Scale (Linear) function can be used to: The Scale (Non-Linear) function can be used for Non-Linear applications. • Convert analog field input signals from the range which is native to the analog input module to an application specific range. •...

  • Page 7: Oled Panel Display Menus

    OLED Panel Display Power On Hold SEL button down to cycle through primary screens. Release button to select screen. Appears PASSED DISPLAY DISPLAY DISPLAY DISPLAY DISPLAY initially SELF SETUP STATUS UNITS UNITS UNITS TEST INFO INFO DECIMAL VOLTS COUNTS COUNTS These screens will then auto cycle This screen will...

  • Page 8: Warning

    “USE COPPER CONDUCTORS, 75ºC” or equivalent. Screw Driver 0.1 in (2.5 mm) Maximum* Width Screw Size Document Name Edition/Revision Date Screw Torque 2.5 lb·in (0.28 N·m) P2-8AD4DA-2-DS 2nd Ed. 8/20/2019 *Recommended Screwdriver TW-SD-MSL-1 Copyright 2014, AutomationDirect.com Incorporated/All Rights Reserved Worldwide www.productivity2000.com Tech Support 770-844-4200...
