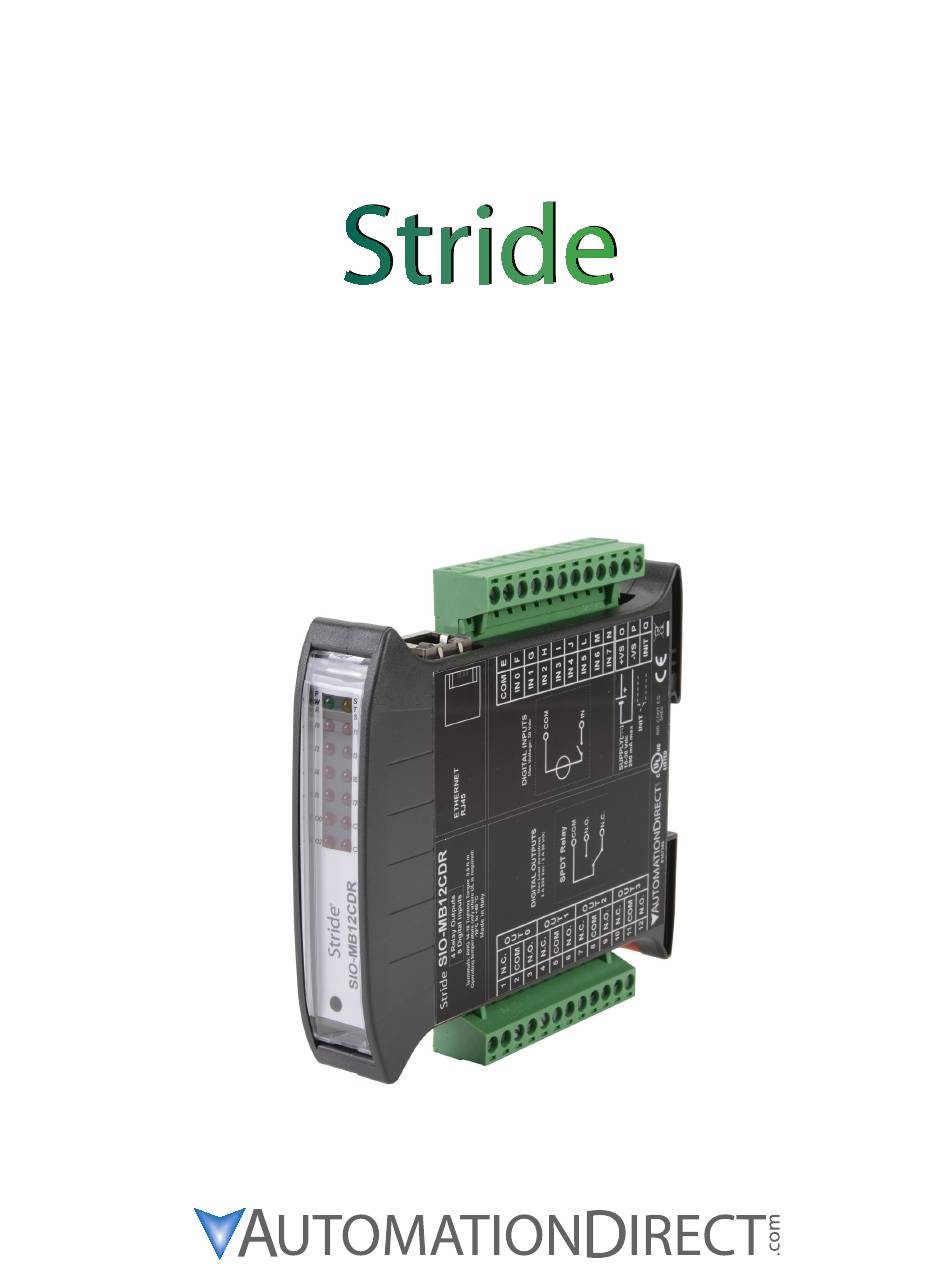

- Page 1 ® Field I/O SIO-MB12CDR USER GUIDE Discrete Combo Module: 8-point in, 4-point out Manual Number: SIO-MB12CDR-UG...
-
Page 2: Register Addresses
Stride Field I/O GENERAL DESCRIPTION Modbus data is mapped in tables and assigned an address. Data can be of two types: • REGISTER, 2 bytes (word of 16 bits) that can be associated to an analog input or output, a variable, a setpoint, etc. •... - Page 3 Stride Field I/O PRODUCT LABEL AND WIRING DIAGRAM Terminal block pinouts and wiring diagrams are printed on the side of the module, as shown below. SIO-MB12CDR User Guide, 1st Edition...
- Page 4 Stride Field I/O DESCRIPTION OF MODBUS REGISTERS 40002 / 40003: FIRMWARE Two read-only registers, containing the firmware version. 40007: NODE ID Contains the Modbus address of the device; the values allowed are from 1 to 245 decimal. This value must match the Modbus address of the connected Modbus device (data source). Default value: 1 Decimal (01 Hex).
- Page 5 Stride Field I/O 40032: DIGITAL INPUTS This register contains the status of all digital inputs (0 = OFF; 1 = ON). In addition to using this register, it is also possible to read each input using Modbus coil functions and the appropriate addresses from the “Coil Addresses” table. 15 14 13 12 11 10 09 08 07 06 05 04 03 02 01 00 Input #7 #6 #5 #4 #3 #2 #1 #0...
- Page 6 Stride Field I/O WEB SERVER STRUCTURE Login Screen To access the server, open the web browser and enter the IP address of the device. Our examples use Chrome screen captures. Browsers may differ slightly. Enter the Username and Password. • Default username: admin •...
- Page 7 Stride Field I/O Network Settings On the Network Settings page, set the Ethernet communication parameters. • IP Address: set the IP address of the device. • Subnet Mask: set the subnet mask to match the local network. • Gateway Mask: set the default gateway. A default gateway allows this device to communicate with devices on another subnet. •...
-
Page 8: System Configuration
Stride Field I/O System Configuration On the System Configuration page, set the basic system parameters. • Name: set a helpful name to identify this device; max 15 alphanumeric characters. • Modbus Address: set the Modbus address of this device; the default value is 1. In INIT mode this value is temporarily set to 245. •... - Page 9 Stride Field I/O Software Update When a software upgrade is required, click Upgrade. • Upgrade: opens a dialog to enter credentials, select a file from the local PC and proceed with the update. • Firmware Version: shows the firmware version loaded on the device. •...
- Page 10 Stride Field I/O Username and Password Set the user name and password. • Username: set the user name to access the device. Default “admin”. • Password: set the password to access the device. Default “password”. Click Save to apply and store the modified parameters. SIO-MB12CDR User Guide, 1st Edition...
-
Page 11: Digital Input
Stride Field I/O Digital Input This page displays the state of the digital inputs and their associated latches. • Read: retrieves current values for all channels (one time) • Continuous Reading: continuously retrieves current values for all channels • Stop: stops continuous reading •... -
Page 12: Digital Output
Stride Field I/O Digital Output This page displays the values of and allows writing to the digital outputs, and allows configuration of the PowerUp and Watchdog settings for each output. • Refresh: retrieves current values and updates the page display. •... - Page 13 Stride Field I/O INIT, RESET AND WATCHDOG FUNCTIONS INIT Function The INIT function facilitates access to a device when there is a problem accessing it at its configured IP address. The configured username and password are required for INIT access. The INIT terminal is adjacent to the power terminals.
