- Page 1 Multi-Sensor Panoramic Network + PTZ Camera Quick Start Guide V1.0.1...
-
Page 2: Foreword
Quick Start Guide Foreword General This manual introduces the functions and operations of the camera. Safety Instructions The following categorized signal words with defined meaning might appear in the manual. Signal Words Meaning Indicates a medium or low potential hazard which, if not avoided, could result in slight or moderate injury. -
Page 3: Important Safeguards And Warnings
Quick Start Guide Important Safeguards and Warnings Electrical Safety ● All installation and operation shall conform to your local electrical safety codes. ● The power source shall conform to the Safety Extra Low Voltage (SELV) standard, and supply power with rated voltage which conforms to Limited Power Source requirement according to IEC60950-1. - Page 4 Quick Start Guide ● You can clean the device body with soft dry cloth, and for stubborn stains, use the cloth with mild detergent. To avoid possible damage on device body coating which could cause performance decrease, do not use volatile solvent such as alcohol, benzene, diluent and so on to clean the device body, nor can strong, abrasive detergent be used.
-
Page 5: Table Of Contents
Quick Start Guide Table of Contents Foreword ..............................I Important Safeguards and Warnings ......................II 1 Introduction ............................. 1 2 Cable ................................ 2 3 Network Configuration ..........................4 3.1 Initializing Device ..........................4 3.2 Modifying Device IP Address ......................6 3.3 Logging in to Web Interface ...................... -
Page 6: Introduction

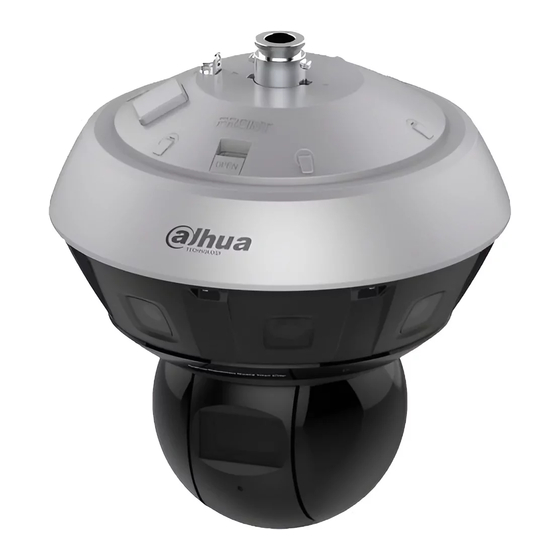

Quick Start Guide 1 Introduction This series product is a type of integrated camera which consists of panoramic camera and tracking PTZ camera. It provides monitoring effect of both panoramic and partial details. Panoramic camera can provide real-time HD surveillance of 180°/270°/360° view coverage. Besides, it is convenient to recognize and exclude abnormity via quick positioning and zoom in of tracking PTZ camera when abnormity happens. -
Page 7: Cable
Quick Start Guide 2 Cable ● Cable type might vary with different devices, and the actual product shall prevail. ● Waterproof all the cable joints with insulating tape and waterproof tape to avoid short circuit and water damage. For the detailed operation, see the FAQ Manual. Figure 2-1 Cables For more information about cable ports, see Table 2-1. - Page 8 Quick Start Guide Table 2-2 Audio I/O Port Port Name Description AUDIO_OUT 1 Connects to speaker to output audio signal. AUDIO_OUT 2 Audio AUDIO_IN 1 Connects to sound-pick-up device to receive audio signal. AUDIO_IN 2 AUDIO_GND Ground connection. For more information about I/O port, see Table 2-3. Table 2-3 Alarm information Port Port Name...
-
Page 9: Network Configuration
Quick Start Guide 3 Network Configuration Device initialization and IP setting can be finished with the "ConfigTool" or on web interface. For more information, see the Web Operation Manual. ● Device initialization is available on select models, and it is required at first-time use and after device is being reset. - Page 10 Quick Start Guide Step 5 Select one or several devices in uninitialized status, and then click Initialize. The Device initialization interface is displayed. Step 6 Select the devices that need initialization, and then click Initialize. The password setting interface is displayed. Figure 3-2 Password setting Step 7 Set and confirm the password of the devices, then enter a valid email address, and then...
-
Page 11: Modifying Device Ip Address
Quick Start Guide 3.2 Modifying Device IP Address ● You can modify IP address of one or multiple devices at one time. This section is based on modifying IP addresses in batches. ● Modifying IP addresses in batches is available only when the corresponding devices have the same login password. - Page 12 Quick Start Guide Step 2 Enter the username and password in the login box, and then click Login. For the first-time login, click Click Here to Download Plugin, and then install the plugin as Step 3 instructed. The main interface is displayed when the installation is finished. Figure 3-4 Main interface...
-
Page 13: Smart Track Configuration
Quick Start Guide 4 Smart Track Configuration Enable smart track, and then configure the tracking parameters. And when any anomaly is detected, the speed dome would track the target until it gets out of the surveillance range. Prerequisites You already configured heat map, intrusion, or tripwire on the panoramic camera. 4.1 Enabling Alarm Track Alarm track is disabled by default;... - Page 14 Quick Start Guide Figure 4-2 Auto calibration ● Manual calibration Select Manual in Calibration Mode, select the lens that you need, and then add calibration point for it in the live image. Interface might vary with different models, and the actual interface shall prevail. Figure 4-3 Manual calibration (1)
- Page 15 Quick Start Guide Figure 4-4 Manual calibration (2) 1) Adjust the speed dome lens and turn it to the same view as the chosen lens, and then click The calibration boxes are displayed in both images. 2) Pair each box in the two images, and keep the paired boxes at the same spot of the live view.
-
Page 16: Installation
Quick Start Guide 5 Installation 5.1 Packing List ● The tool required for the installation such as electric drill is not provided in the package. ● The operation manual and related tool information are contained in the disk or the QR code, and the actual package shall prevail. -
Page 17: Installing Camera
Quick Start Guide 5.3 Installing Camera 5.3.1 Installation Method Figure 5-3 Installation method 5.3.2 Installing SD Card (Optional) ● SD card slot is available on select models. ● Disconnect the power before installing or removing the SD card. Figure 5-4 Installing SD card... -
Page 18: Attaching Camera
Quick Start Guide 5.3.3 Attaching Camera Make sure that the mounting surface is strong enough to hold at least three times of the weight of the device and bracket. - Page 19 Quick Start Guide Figure 5-5 Cable going through the side cable tray...
-
Page 20: Installing Waterproof Connector (Optional)
Quick Start Guide 5.3.4 Installing Waterproof Connector (Optional) This part is needed only when there is waterproof connector in the package and the device is used outdoors. Figure 5-6 Installing waterproof connector 5.3.5 Adjusting Lens Angle Figure 5-7 Adjusting lens angle... - Page 21 Quick Start Guide...
