DRV-ACC16-EVM Accelerometer User's Guide
The DRV-ACC16-EVM is a three-axis accelerometer for use in lab acceleration or vibration testing of
haptic feedback systems. The accelerometer allows vibrations to be quantified making haptic feedback
evaluation, reporting, and comparisons easier.
This document contains instructions and general guidelines for using the DRV-ACC16-EVM and
measuring acceleration.
Features
•
Measure X, Y, and Z acceleration simultaneously using three independent analog outputs
•
Connect to oscilloscope for simple acceleration readings
•
Up to 16 g
acceleration measurements
peak
•
Small size and flex cable, minimize interference with natural motion of the system
Kit Contents
•

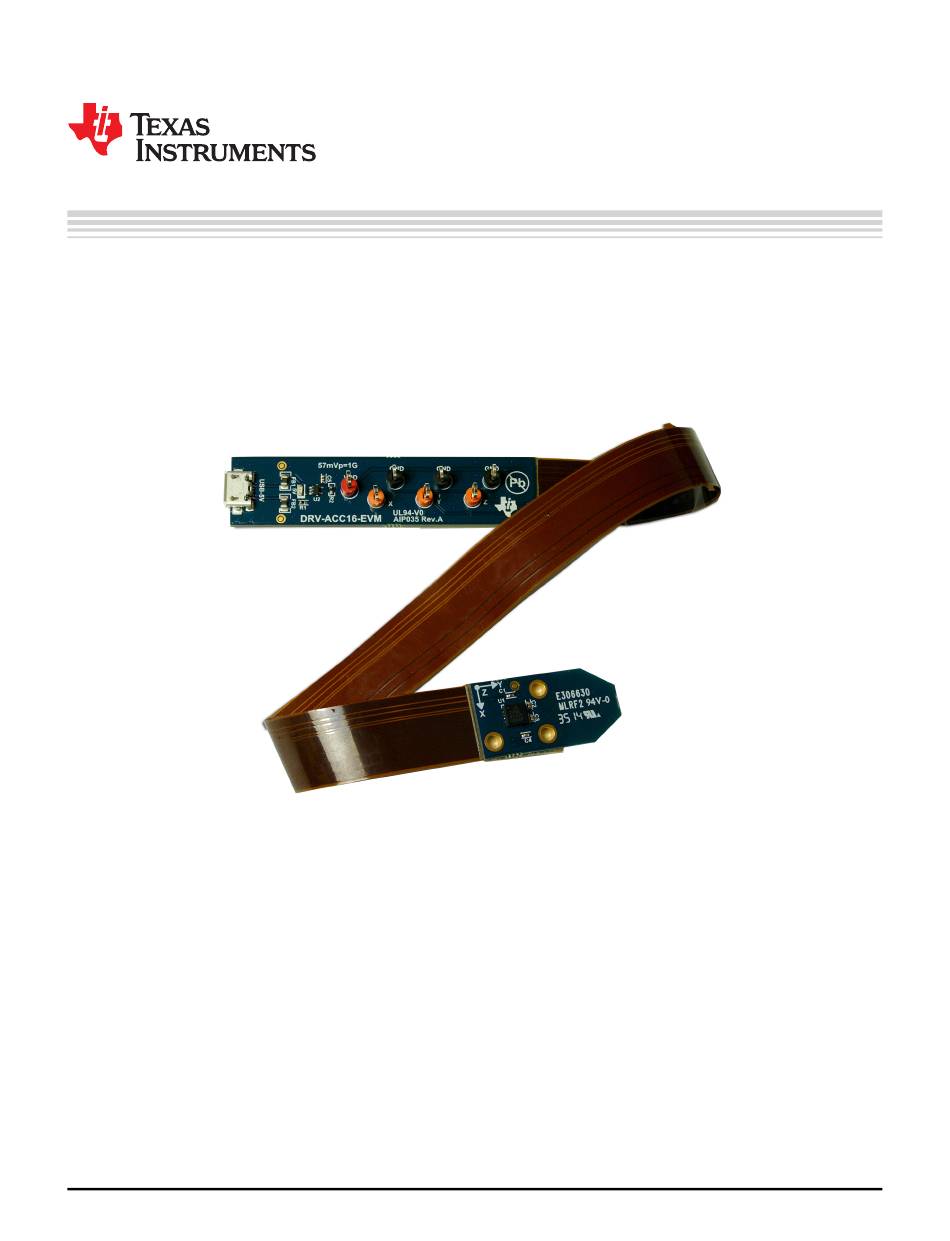

DRV-ACC16-EVM accelerometer board
•
Micro-USB cable for power
•
Texas Instruments Black Carrying and Storage Case
space
space
space
space
SLOU402 – June 2015
Submit Documentation Feedback
Copyright © 2015, Texas Instruments Incorporated
SLOU402 – June 2015
DRV-ACC16-EVM Accelerometer User's Guide
User's Guide
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments DRV-ACC16-EVM
Summary of Contents for Texas Instruments DRV-ACC16-EVM
- Page 1 SLOU402 – June 2015 DRV-ACC16-EVM Accelerometer User’s Guide The DRV-ACC16-EVM is a three-axis accelerometer for use in lab acceleration or vibration testing of haptic feedback systems. The accelerometer allows vibrations to be quantified making haptic feedback evaluation, reporting, and comparisons easier.
-
Page 2: Table Of Contents
....................Screw Hole Dimensions ................Schematic, Layout, and Bill of Materials List of Figures ......................Board Connections ................3M Tape on Backside of DRV-ACC16-EVM ................Attach Accelerometer to Vibrating Object ................DRV-ACC16-EVM - Measurement Board ....................AC-Coupled Accelerometer ..................Accelerometer Conversion Voltage ...................... -
Page 3: Overview
The DRV-ACC16-EVM can measure acceleration up to 16 g (“g” is the acceleration due to Earth’s gravity or 9.81 m/s ). -
Page 4: Getting Started
The surface should mimic the object’s final operating environment. See Mounting an Actuator for Testing for additional information. DRV-ACC16-EVM Accelerometer User’s Guide SLOU402 – June 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated... -
Page 5: Drv-Acc16-Evm - Measurement Board
3. Connect an oscilloscope to the X, Y, and/or Z axis test points on the measurement board. See Determining the Axis of Vibration for additional instructions. Figure 4. DRV-ACC16-EVM - Measurement Board 4. Apply power to the board by connecting the micro-USB cable to a USB power source such as a computer or USB charger. -
Page 6: Converting Voltage To Acceleration
The output voltage of the three accelerometer channels has a DC offset of 1.5 V at 0 g. The channels of the DRV-ACC16-EVM can be AC coupled to only show changes in acceleration. This is recommended for measuring the acceleration of haptic systems. -
Page 7: Determining The Axis Of Vibration
Acceleration can be observed on the Y and Z accelerometer channels. Oscilloscope Figure 8. ERM Axes of Vibration Figure 9. Y and Z Axes Acceleration Measurement SLOU402 – June 2015 DRV-ACC16-EVM Accelerometer User’s Guide Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated... -
Page 8: Direction Lra
The piezo bender and mass will move side-to-side when a high- voltage sine wave is applied to the module’s input terminals. Oscilloscope Figure 12. Piezo Module Figure 13. X Axis Acceleration Measurement DRV-ACC16-EVM Accelerometer User’s Guide SLOU402 – June 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated... -
Page 9: Mounting Guidelines
Finally, measure the acceleration of the block on the foam and compare it to when a person holds it in their hand. SLOU402 – June 2015 DRV-ACC16-EVM Accelerometer User’s Guide Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated... -
Page 10: Example Waveforms
The peak-to-peak voltage of the accelerometer voltage waveform is divided by 2 to obtain the peak voltage and then divided by 57 mVp to calculate the acceleration. DRV-ACC16-EVM Accelerometer User’s Guide SLOU402 – June 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated... -
Page 11: Screw Hole Dimensions
The accelerometer board can be mounted using the screw holes shown in Figure Figure 17 is the screw hole mechanical footprint. 350 mil (8.89 mm) 428 mil (10.87 mm) Figure 17. Screw-Hole Footprint SLOU402 – June 2015 DRV-ACC16-EVM Accelerometer User’s Guide Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated... -
Page 12: Schematic, Layout, And Bill Of Materials
LED1 Green TLV70030DCKT 600 ohm 1.50k ZX62-B-5PA(11) XOUT 0.01µF YOUT 0.01µF ZOUT 0.1µF 0.01µF Sense Board ADXL326BCPZ Accelerometer Board Figure 18. DRV-ACC16-EVM Schematic DRV-ACC16-EVM Accelerometer User’s Guide SLOU402 – June 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated... -
Page 13: Drv-Acc16-Evm Top Overlay
Schematic, Layout, and Bill of Materials www.ti.com Layout Figure 19 through Figure 25 display the DRV-ACC16-EVM printed-circuit board (PCB) layout. Figure 19. DRV-ACC16-EVM Top Overlay Figure 20. DRV-ACC16-EVM Figure 21. DRV-ACC16-EVM Top Layer Figure 22. DRV-ACC16-EVM Bottom Layer Figure 23. DRV-ACC16-EVM Bottom Solder SLOU402 –... -
Page 14: Drv-Acc16-Evm Drill Drawing
Schematic, Layout, and Bill of Materials www.ti.com Figure 24. DRV-ACC16-EVM Drill Drawing Figure 25. DRV-ACC16-EVM Board Dimensions DRV-ACC16-EVM Accelerometer User’s Guide SLOU402 – June 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated... -
Page 15: Drv-Acc16-Evm Fabrication Drawing
Schematic, Layout, and Bill of Materials www.ti.com Figure 25 illustrates the DRV-ACC16-EVM fabrication drawing. Figure 26. DRV-ACC16-EVM Fabrication Drawing SLOU402 – June 2015 DRV-ACC16-EVM Accelerometer User’s Guide Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated... -
Page 16: Bill Of Materials
