Courtyard Creations KVS945Y 299-9911 Assembly Instructions

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE

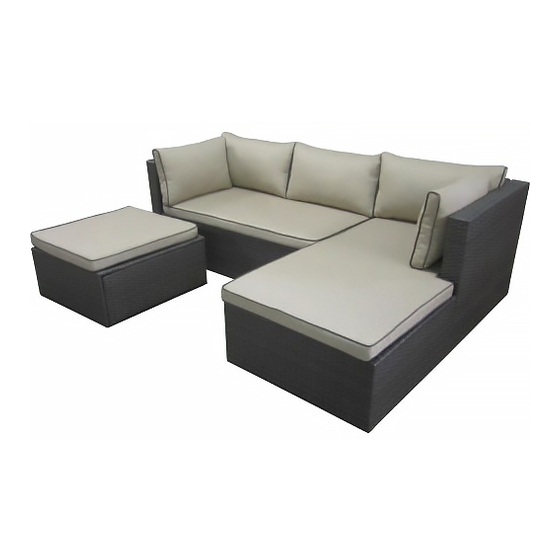

CARLING WICKER SECTIONAL SOFA

PARTS LIST

PART
MATERIAL CODE
NO.
1
KVS945Y-CS02-7
2
KVS945Y-CS01-3
3
KVS945Y-CS03-5
4
KVS945Y-CS02-6
5
KVS945Y-CS01-2
6
KVS945Y-CS03-4
7
KVS945Y-CS04-H
8
KVS945Y-CS04-H
9
62KVS945YQ102
10
62KVS945YQ103
11
KVS945Y-CS08-5
12
17C40A0705001YX
!
Use the correct bolts as indicated. Do not tighten any of the bolts until the sectional and ottoman are completely assembled.
!
Do not discard of any of the packaging until you have checked that you have all of the parts and
fittings required.
!
Keep children away during assembly. This item contains small parts that can be swallowed by
children. Children should always be under direct adult supervision while using this product.
!
Retain these assembly instructions for future reference.
!
Quote the following FQC No. when contacting the service center.
F-3
INTENDED FOR RESIDENTIAL USE ONLY.
KVS945Y (299-9911)
PART Q'TY
1
SEAT ASSEMBLY A
1
LEFT ARM A
1
BACK ASSEMBLY A
1
SEAT ASSEMBLY B
1
RIGHT ARM B
1
BACK ASSEMBLY B
1
LEG A
2
LEG B
1
SUPPORT A
1
SUPPORT B
1
SUPPORT C
2
BOLT M6*15
SERVICE CENTER TOLL FREE NO
TEL: 1-877-539-7436
FAX: 1-877-539-7439
PAGE 1 OF 4
