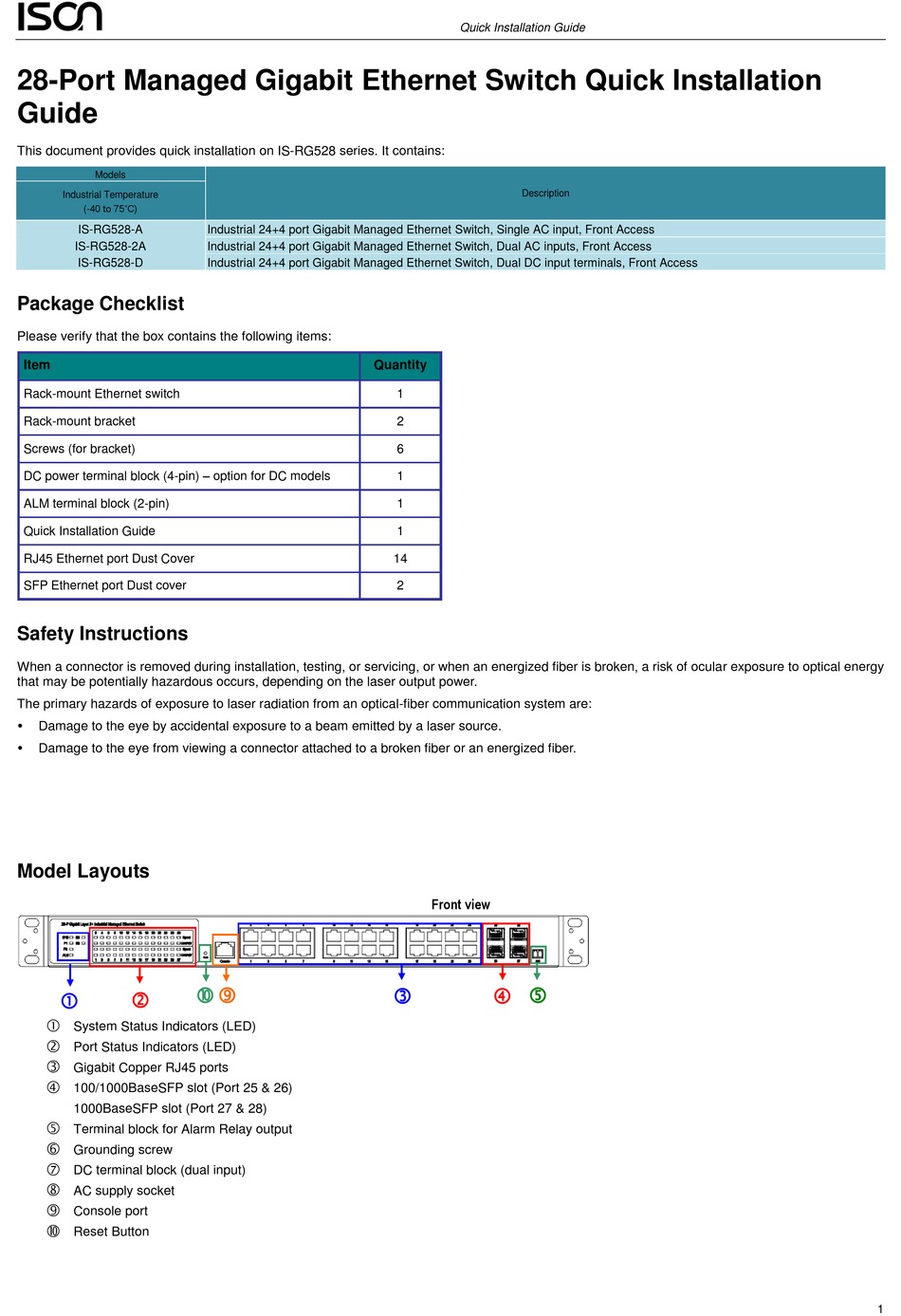

ISON IS-RG528-A Quick Installation Manual

28-Port Managed Gigabit Ethernet Switch Quick Installation
Guide
This document provides quick installation on IS-RG528 series. It contains:
Models
Industrial Temperature
(-40 to 75˚C)
IS-RG528-A
IS-RG528-2A
IS-RG528-D
Package Checklist
Please verify that the box contains the following items:
Item
Rack-mount Ethernet switch
Rack-mount bracket
Screws (for bracket)
DC power terminal block (4-pin) – option for DC models
ALM terminal block (2-pin)
Quick Installation Guide
RJ45 Ethernet port Dust Cover
SFP Ethernet port Dust cover
Safety Instructions
When a connector is removed during installation, testing, or servicing, or when an energized fiber is broken, a risk of ocular exposure to optical energy
that may be potentially hazardous occurs, depending on the laser output power.
The primary hazards of exposure to laser radiation from an optical-fiber communication system are:

Damage to the eye by accidental exposure to a beam emitted by a laser source.

Damage to the eye from viewing a connector attached to a broken fiber or an energized fiber.
Model Layouts



System Status Indicators (LED)

Port Status Indicators (LED)

Gigabit Copper RJ45 ports

100/1000BaseSFP slot (Port 25 & 26)
1000BaseSFP slot (Port 27 & 28)

Terminal block for Alarm Relay output

Grounding screw

DC terminal block (dual input)

AC supply socket

Console port

Reset Button
Industrial 24+4 port Gigabit Managed Ethernet Switch, Single AC input, Front Access
Industrial 24+4 port Gigabit Managed Ethernet Switch, Dual AC inputs, Front Access
Industrial 24+4 port Gigabit Managed Ethernet Switch, Dual DC input terminals, Front Access
 
Quick Installation Guide
Description
Quantity
1
2
6
1
1
1
14
2
Front view

 
1
