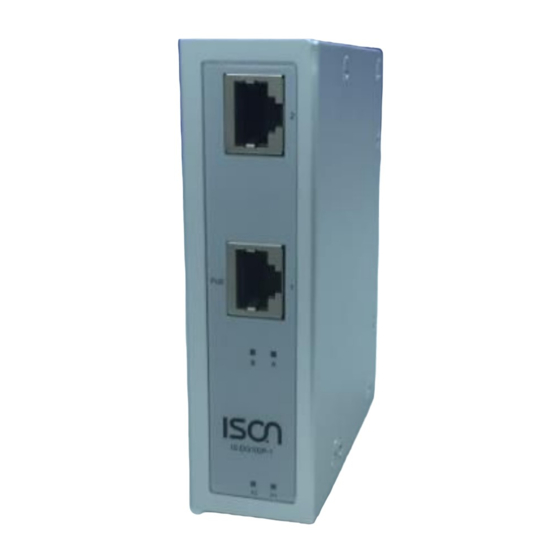

Quick Installation Guide
FCC MARKING
This Equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful
the
equipment
is
operated
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in
which
interference at his own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1)
and (2) this device must accept any interference received; including interference
that may cause undesired operation.
CE MARKING
This equipment complies with the requirements relating to electromagnetic
compatibility, EN 55022 class A for ITE, the essential protection requirement of
Council Directive 2004/108/EC on the approximation of the laws of the Member
States relating to electromagnetic compatibility.
Company has an on-going policy of upgrading its products and it may be
possible that information in this document is not up -to-date. Please check with
your local distributors for the latest information. No part of this document can be
copied or reproduced in any form without written consent from the company.
Trademarks:
All trade names and trademarks are the properties of their respective
companies.
Copyright © 2013, All Rights Reserved.
IS-DG102P-1
in
a commercial environment. This equipment
case
the
user
will
this device may not cause harmful interference,
1
interference
be
required to correct the
when

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IS-DG102P-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for ISON IS-DG102P-1

  • Page 1 IS-DG102P-1 Quick Installation Guide FCC MARKING This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful...
  • Page 2 NOTE: Always make sure the total length of the TX cable DOES NOT exceed 100meter. Total length is defined as length A + length B Length A + Length B < 100 meter Remote Switch Maximum total cable length is 100meter. During 100Mbps transmission, the maximum total cable length is 100 meter.
  • Page 3: Installation Package

    Installation package This unit can be installed by din-rail mounted or wall-mounted. Din-rail brackets and wall-mounted bracket are included. Din Rail Bracket x 1 Wall mount bracket x 2 4 pin Terminal Block x1 Power connection The provided 4 pin terminal block can be connected with 48VDC to 56VDC power source. Always Make sure your input voltage is within this supported voltage range.
  • Page 4: Led Indicator

    LED indicator POWER—P1, P2 Mode A Green LED ON -- For End-Span POE power 1,2,3,6 NOTE: Mode B Green LED is only for Mode B End-Span model. with pin assignment 4,5,7,8. This LED will not lit on for this model.
  • Page 5: Specification

    Specification: IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE Standard IEEE802.3af for POE IEEE802.3at for POE+ 1xRJ-45 10/100/1000BaseT(X) Data 1xRJ-45 10/100/1000BaseT(X) Data with POE Output power Network Connector : UTP/STP above Cat.5e Cable Network Cable EIA/TIA-568 10-ohm (100m) Protocol...
  • Page 6 Provide 4 pin terminal block Wire range: 0.34mm^2 to 2.5mm^2 Solid wire (AWG):12-24/14-22 Removable Terminal Block Stranded wire(AWG): 12-24/14-22 Torque:5lb-In/0.5Nm/0.56Nm Wire Strip length: 7-8mm Operating Temperature -40℃~75℃ fully tested. 5% to 95% (Non-condensing) Operating Humidity Storage Temperature -40℃~85℃ MTBF (mean time between failure) 510,304 hrs ( MIL-HDBK-217F) at 25°C Housing Rugged Metal ,IP30 Protection...
  • Page 7: Housing Dimension

    Housing Dimension...
