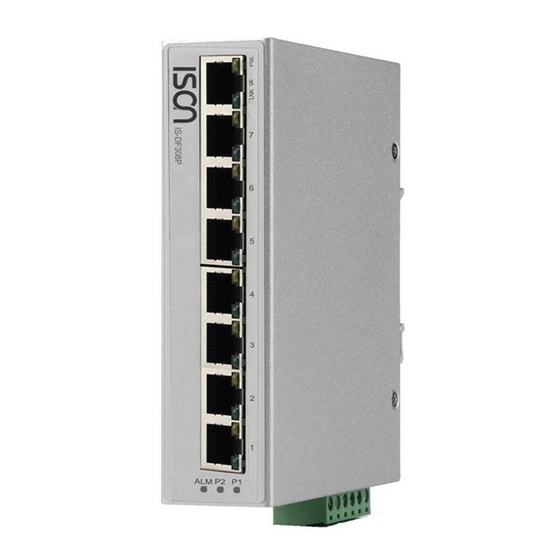

IS-DF308P Series
Quick Installation Guide
FCC MARKING
This Equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful
interference
when
the
equipment
is
operated
in
a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the i nstruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case
the
user
will
be
required to correct the
interference at his own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1)
this device may not cause harmful interference,
and (2) this device must accept any interference received; including interference
that may cause undesired operation.
CE MARKING
This equipment complies with the requirements relating to electromagnetic
compatibility, EN 55022 class A for ITE, the essential protection requirement of
Council Directive 2004/108/EC on the approximation of the laws of the Member
States relating to electromagnetic compatibility.
Company has an on-going policy of upgrading its products and it may be
possible that information in this document is not up -to-date. Please check with
your local distributors for the latest info rmation. No part of this document can be
copied or reproduced in any form without written consent from the company.
Trademarks:
All trade names and trademarks are the properties of their respective
companies.
Copyright © 2013, All Rights Reserved.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IS-DF308P Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ISON IS-DF308P Series

  • Page 1 IS-DF308P Series Quick Installation Guide FCC MARKING This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful...
  • Page 2 Installation package This unit can be installed by din-rail mounted or wall-mounted. Din-rail brackets and wall-mounted bracket are included. Din Rail Bracket x 1 Wall mount bracket x 2 6 pin Terminal Block x1 Power connection This industrial Fast Ethernet 8 port POE switch is equipped with 8 port 10/100M TX PSE, each port can deliver 30W POE power.
  • Page 3 LED indicator ON -- when V1+, V1- is connected Green LED --- ON =Link Flash = TX/RX. ON -- when V2+, V2- is connected POE: Amber LED --- ON = POE detected OFF = POE not detected Flash = POE detecting. ALM: Relay LED Amber ON one power is connected OFF two powers are connected...
  • Page 4 Specification: IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE802.3x Flow Control and Back Pressure, IEEE Standard IEEE802.3af for POE IEEE802.3at for POE+ Switch Architecture Back-plane (Switching Fabric): 1.6Gbps Data Processing Store and Forward IEEE 802.3x Flow Control and Back Pressure Flow Control: MAC address Table Size Packet Buffer Size...
  • Page 5 Relay outputs with current carrying capacity of 1 A @24VDC, Alarm Relay Contact Relay in short circuit mode when 2 powers are connected. in open circuit mode when only one power supply is connected POE power per port 30watts. Maximum 36Watts POE power Maximum total power 200Watts, Supports IEEE802.3af/at Provide 2 Redundant power , Alarm relay contact ,6 Pin...
  • Page 6 Housing Dimension...
