IS-DG306P Series
Quick Installation Guide
FCC MARKING
This Equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful
interference
when
the
equipment
is
operated
in
a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case
the
user
will
be
required to correct the
interference at his own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1)
this device may not cause harmful interference,
and (2) this device must accept any interference received; including interference
that may cause undesired operation.
CE MARKING
This equipment complies with the requirements relating to electromagnetic
compatibility, EN 55022 class A for ITE, the essential protection requirement of
Council Directive 2004/108/EC on the approximation of the laws of the Member
States relating to electromagnetic compatibility.
Company has an on-going policy of upgrading its products and it may be
possible that information in this document is not up -to-date. Please check with
your local distributors for the latest information. No part of this document can be
copied or reproduced in any form without written consent from the company.
Trademarks:
All trade names and trademarks are the properties of their respective
companies.
Copyright © 2013, All Rights Reserved.
1
Advertisement
Table of Contents
Related Manuals for ISON IS-DG306P Series
Summary of Contents for ISON IS-DG306P Series
- Page 1 IS-DG306P Series Quick Installation Guide FCC MARKING This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful...

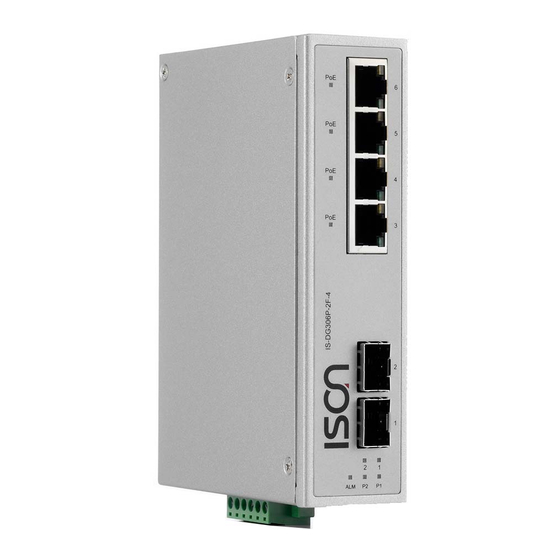

- Page 2 Introduction This rugged designed Industrial Ethernet switch / Industrial Giga -bit 4 port POE Injectors, comply with IEEE802.3af and IEEE802.3at, has pass many rigorous environmental test. It delivers 30watts ( Max 36watts) power per POE port. And it can generate total 126 watts power to PD devices. the u plink 2 SFP port can extend your environment to a much larger area.With its multi -purpose design, it can also be used for Din-Rail or wall-mounted.
- Page 3 MODELS – Industrial Giga-bit POE 4 port Injector, 48VDC input This industrial high power POE+ is designed for multiple applications, especially for vehicle surveillance, IP surveillance, and traffic monitoring and for a broad range of outdoor applications. It can be used as a stand-alone device for buses, trucks for Surveillance purposes.
- Page 4 Installation package This unit can be installed by din-rail mounted or wall-mounted. Din-rail brackets and wall-mounted bracket are included. Din Rail Bracket x 1 Wall mount bracket x 2 6 pin Terminal Block x1 Power connection This unit provides 6 pin terminal block. The POE port can be operated from 44-56VDC power source. The VDC power range can be 48VDC only or lower, or wide range from 44-56VDC.
- Page 5 Dip switch function This unit is equipped with dip switches, located on the front panel. Adjusting the dip switches will change the default function of this unit. This unit has set to manufacturer default as: Port 5 SFP and the speed is set to 1000M for both port 5 and port 6 SFP ports.
- Page 6 Specification: IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE Standard IEEE 802.3z 1000Base-X Gigabit Ethernet IEEE802.3x Flow Control and Back Pressure, IEEE802.3af for POE IEEE802.3at for POE+ Switch Architecture Back-plane (Switching Fabric): 12Gbps Store and Forward Data Processing Flow Control:...
- Page 7 Relay outputs with current carrying capacity of 1 A @24VDC, Alarm Relay Contact Relay in short circuit mode when 2 powers are connected. in open circuit mode when only one power supply is connected Ethernet Switch power input Ethernet switch power input 9VDC -56VDC input Voltage 44VDC-56VDC.
