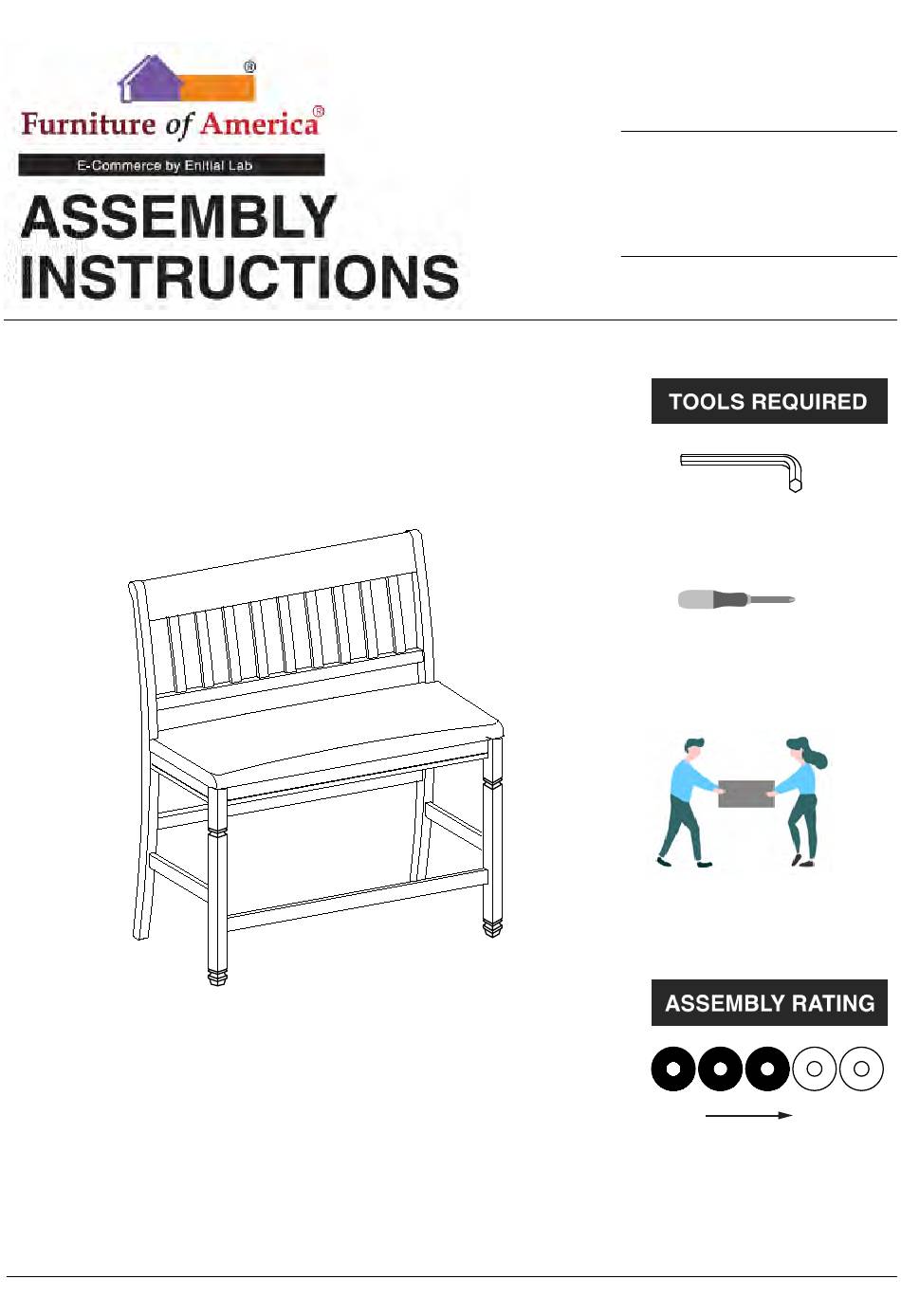

VERSION # 20-06-02
1 / 8
MODEL #
CM3194PBN
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - Pe ople
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America Kaliyah CM3194PBN
Summary of Contents for Furniture of America Kaliyah CM3194PBN
- Page 1 MODEL # CM3194PBN Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - Pe ople Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 8...
- Page 5 PUB BENCH CM3194PBN #1 1pc #2 1pc #3 2pcs Chair Back Cushion Frame Front Leg (L&R) #4 1pc #5 2pcs Front Stretcher Side Stretcher (L&R) #A 4pcs #B 4pcs #C 4pcs #D 12pcs Lock Washer Bolt Ø1/4" x 3-1/8" Bolt Ø1/4" x 2-3/8" Bolt Ø1/4"...
- Page 6 Exploded View 6 / 8...
- Page 7 ASSEMBLY INSTRUCTIONS Prepare 4 bolts assembly by inserting lock washer (#D), then flat washer (#E) onto bolts (#C). Align cushion frame (#2) to the holes of the chair back (#1). Secure holes of the cushion frame (#2) to the chair back (#1) by using bolts (#C). Do not Part #1 x1pc fully tighten bolts (#C).
- Page 8 ASSEMBLY INSTRUCTIONS Prepare 4 bolts assembly by inserting lock washer (#D), then flat washer (#E) onto bolts (#B). Align and secure front legs (#3R/L) to the bench by using bolts (#B). Align side stretchers (#5R/L) and front stretchers (#4) to the gaps of the legs. Fully tighten bolts (#B) on the front legs (#3R/L).
