Hillsdale Furniture Bayview 103720-111032 Assembly Instructions

Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all components are
in proper posi�on, �ght and free from damage. Keep this assembly instruc�on for future reference. Adult assembly is required. The product of Hillsdale Furniture,
LLC is designed for residen�al use only. Customer Service Phone Number: 502-562-0000
CODE QTY
1 10 5/16" x 19mm Flat Washers
2 10 5/16" Spring Washers
3 4 5/16" x 3 1/2" Allen Bolts
4 1 5/16" Allen Wrench
5 4 5/16" x 2 1/2" Allen Bolts
6 1 5/16" x 4" Straight Allen Wrench
7 6 #8 x 1-1/2" Screws
8 2 5/16" x 1-1/2" Allen Bolts

WARNING

• Do not let any sharp objects touch or rub
the surface of the product.
• When assembling, do not let children play
around the working area.
• Please confirm all parts are correct before
star�ng the assembly process.
• Do not �ghten all bolts and screws
completely un�l the en�re unit has been
assembled and set up.
• Be careful if using power tools as they can
over �ghten screws and strip threads.
CARE & MAINTENANCE: The touch of a so� cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for polishing, as they may
cause damage to the finish. Periodic checks are recommended to make sure that all hardware is securely �ghtened.

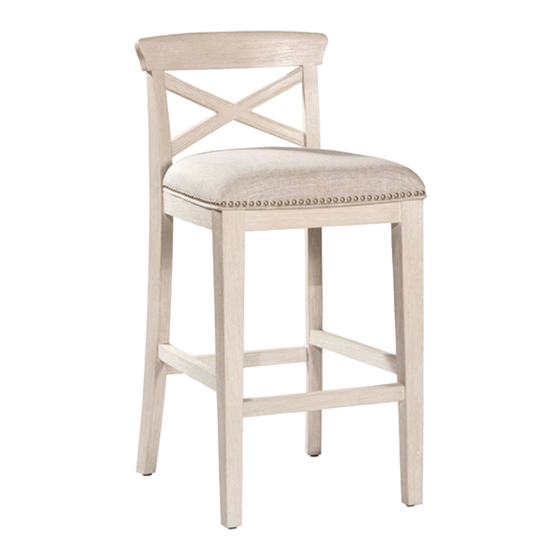

Bayview Wood Non-Swivel Stool
Model #103720-111032 (4562-827) Counter Stool
Model #103720-111033 (4562-831) Barstool
HARDWARE CODE QTY COMPONENTS
A 1 Seat
C 1 Front Rail
B
A
E
D
Date: 06-20-2017
Page 1 of 2
CODE QTY COMPONENTS
B 1 Chair Back
D 2 Side Rails
E 2 Legs
E
D
C
HDFBP
