DEMONSTRATION CIRCUIT 3160A KIT

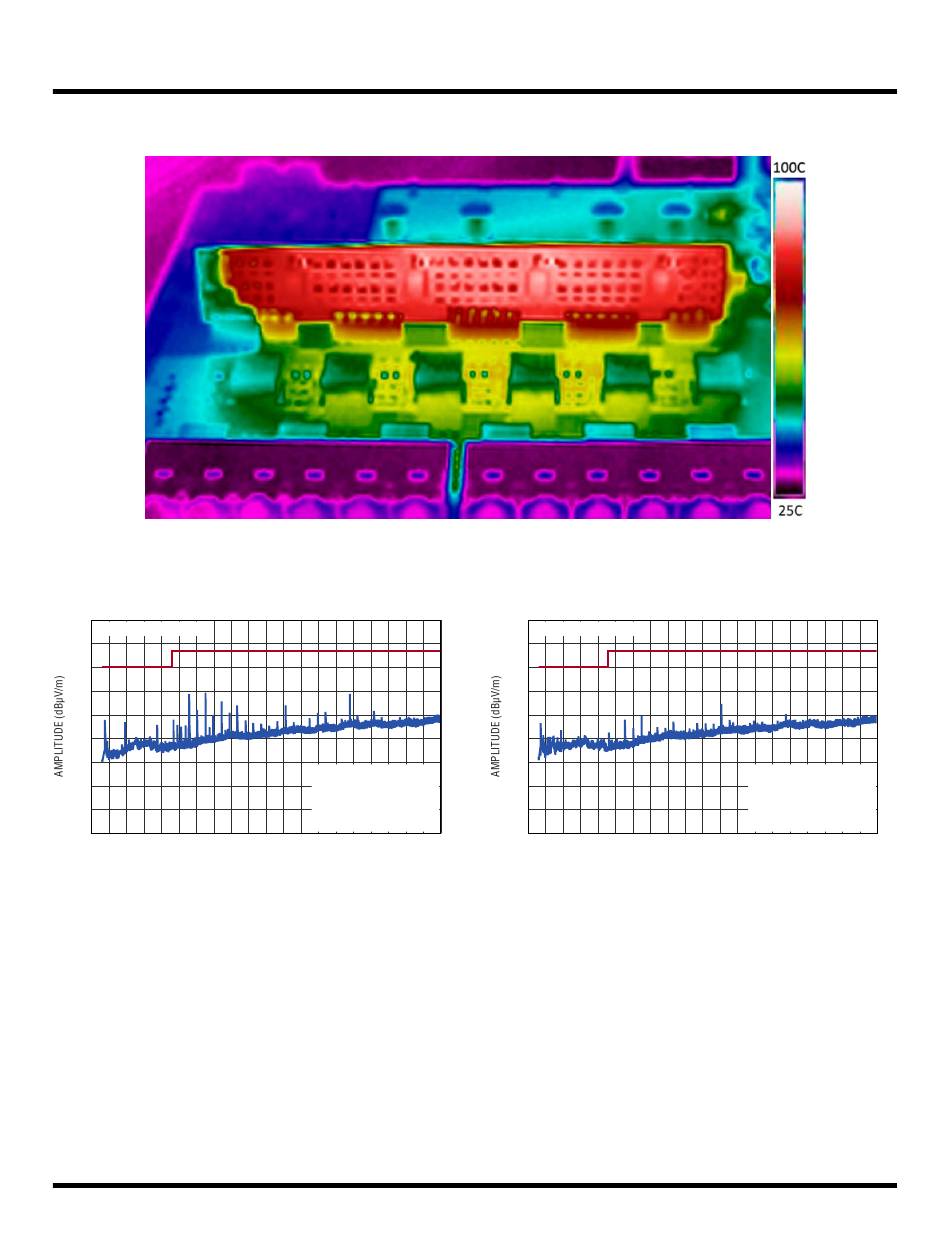

Figure 9. Thermal Image of the DC3159A-A Daughter Card with All 24, 4-pair Ports Loaded with 1.73A Each and VEE at –55V
Radiated EMI Performance
60
CISPR 32 CLASS B LIMIT
50
40
30
20
10
0
–10
–20
–30
0 100 200 300 400
FREQUENCY (MHz)
Figure 10. DC3160A-A-KIT Radiated Emissions Performance;
CISPR 32 Radiated Emissions Test, Antenna Polarization:
Horizontal, 3-Meters
Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog
Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications
subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
DETECTOR = QUASI-PEAK
HORIZONTAL, H = 1M
RBW = 120kHz
DWELL TIME = 5s
NUMBER OF POINTS = 512
500 600 700 800 900 1000
dc3160a F10
DEMO MANUAL DC3160A
Radiated EMI Performance
60
CISPR 32 CLASS B LIMIT
50
40
30
20
10
0
–10
–20
–30
0 100 200 300 400
FREQUENCY (MHz)
Figure 11. DC3160A-A-KIT Radiated Emissions Performance;
CISPR 32 Radiated Emissions Test, Antenna Polarization:
Vertical, 3-Meters
DETECTOR = QUASI-PEAK
VERTICAL, H = 1M
RBW = 120kHz
DWELL TIME = 5s
NUMBER OF POINTS = 512
500 600 700 800 900 1000
dc3160a F11
