Mediatrix 4102S - Hardware Installation Guide
Mediatrix 4102S - Hardware Installation Guide
Mediatrix 4102S - Hardware Installation Guide
2022-05-04

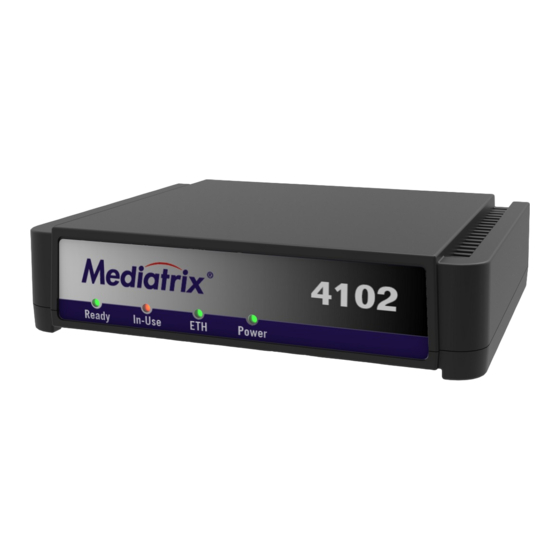

Mediatrix 4102S
DGW 48.5.2718
Download PDF Document
Safety Recommendations and Information
Danger, Warning, Caution, and Note Definitions
Electrical Safety Guidelines
General Safety Practices
Electrostatic Discharge Prevention
Translated Warning Definition
Requirements
Location Requirements
Wiring Guidelines
Mediatrix 4102S Characteristics
Getting Started
Installation Check List
Package Check List
Cleaning Instructions
Mounting Tools and Equipment
Connectors and Indicators
Installing the Mediatrix Unit
Installing the Unit on a Flat Surface
Installing the Unit on the Wall
Connecting the Telephony Cables
Connecting the Mediatrix Unit Using a DHCP Server
Connecting the Mediatrix Unit Using a Static IP address
Verifying the Installation
Cables
FXS Connections (RJ-11)
10/100 Ethernet Connection (RJ-45)
Troubleshooting
Locating the Product Serial Number
Troubleshooting
LED Patterns
RESET/DEFAULT Button
Partial Reset
Performing a Partial Reset
Factory Reset
Performing a Factory Reset
Disabling the Rescue Interface
Standards Compliance and Disclaimers
Federal Communications Commission (FCC) Disclaimer
Supported Standards
Disclaimers
Product Disposal Instructions
DGW Documentation
Copyright Notice
Top
Safety Recommendations and Information
Danger, Warning, Caution, and Note Definitions
Danger: Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
Warning: Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
Caution: Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury or damage to property or equipment.
Note: Indicates important information not related to personal injury.
Top
Electrical Safety Guidelines
Danger: Do not work on the Mediatrix unit, connect or disconnect its cables during periods of lightning.
Danger: Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning.
Warning: Disconnect all interface cables (including
Warning: Disconnect all interface cables (including
Warning: This equipment must be installed and maintained by service personnel. Incorrectly connecting this equipment to a general-purpose outlet could
be hazardous.
Warning: This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that a fuse or circuit breaker no larger than 120
VAC, 15 A U.S. (240 VAC, 10 A international) is used on the phase conductors (all current-carrying conductors).
Warning: The unit must be grounded at all times when in use.
FXS,
) before unplugging any power sources from the Mediatrix unit.
FXS,
) as well as all power sources connected to the Mediatrix unit before servicing the unit.
